Check Valve

The check valve prevents backflow of exhaust gas into the air distribution system. The valve prevents backflow when air pump by-passes at high speed and loads, or in case the air pump malfunctions.

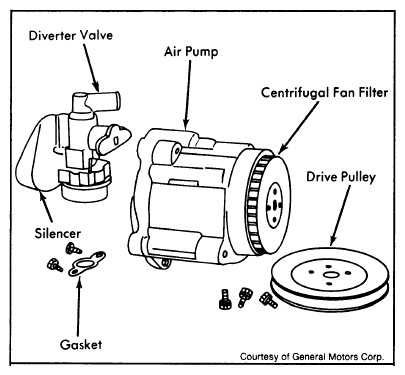

Fig 1: Typical Air Pump Components
G09320679Courtesy of GENERAL MOTORS COMPANY
