Chrysler Corp. Standard Column

Rotating type switch mounted directly across from lock cylinder and attached to it by a cam and pin. Switch turns directly with lock and key to establish the various switch positions.

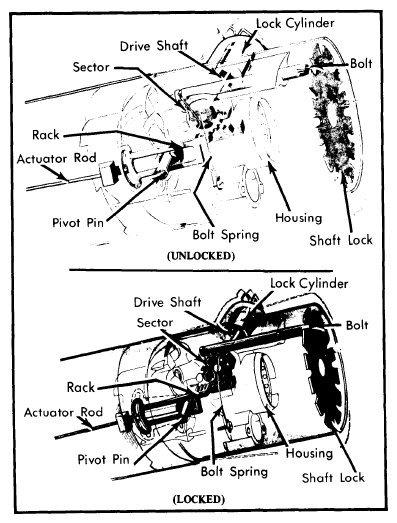

Fig 1: General Motors Steering Column Locking Mechanism (Others Similar)

Courtesy of NOT AVAILABLE

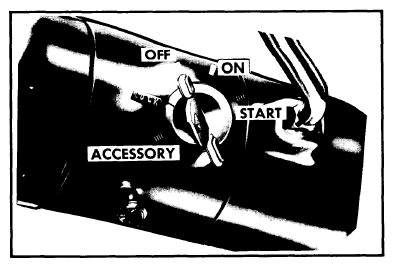

Fig 2: Steering Column Lock Positions Common to All Models

Courtesy of NOT AVAILABLE
