All Other Models: Installation

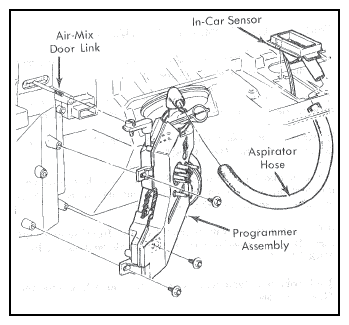

Install programmer on A/C module. Place control panel thumbwheel in highest temperature position. Ensure that air mix door is in full heat position. (Air flow from blower will hold door in proper position.) Connect door rod to programmer without disturbing door rod or output shaft position. Remove 3 wire connector from programmer and check for full travel of air-mix door. Adjust as required.
