All Except Cadillac

Remove instrument panel trim plate. Remove instrument cluster lens. Using pointed tool apply light downward pressure on notches of flag until it is reset. An alignment mark will appear in left center of odometer window when flag is reset.

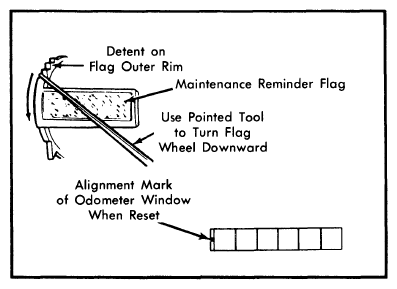

Fig 1: Resetting Maintenance Reminder Flag (All Except Cadillac)
G09339826Courtesy of GENERAL MOTORS COMPANY
