Ignition System Check

Fig 1: Ignition System Diagnosis - Chart 1

G3398

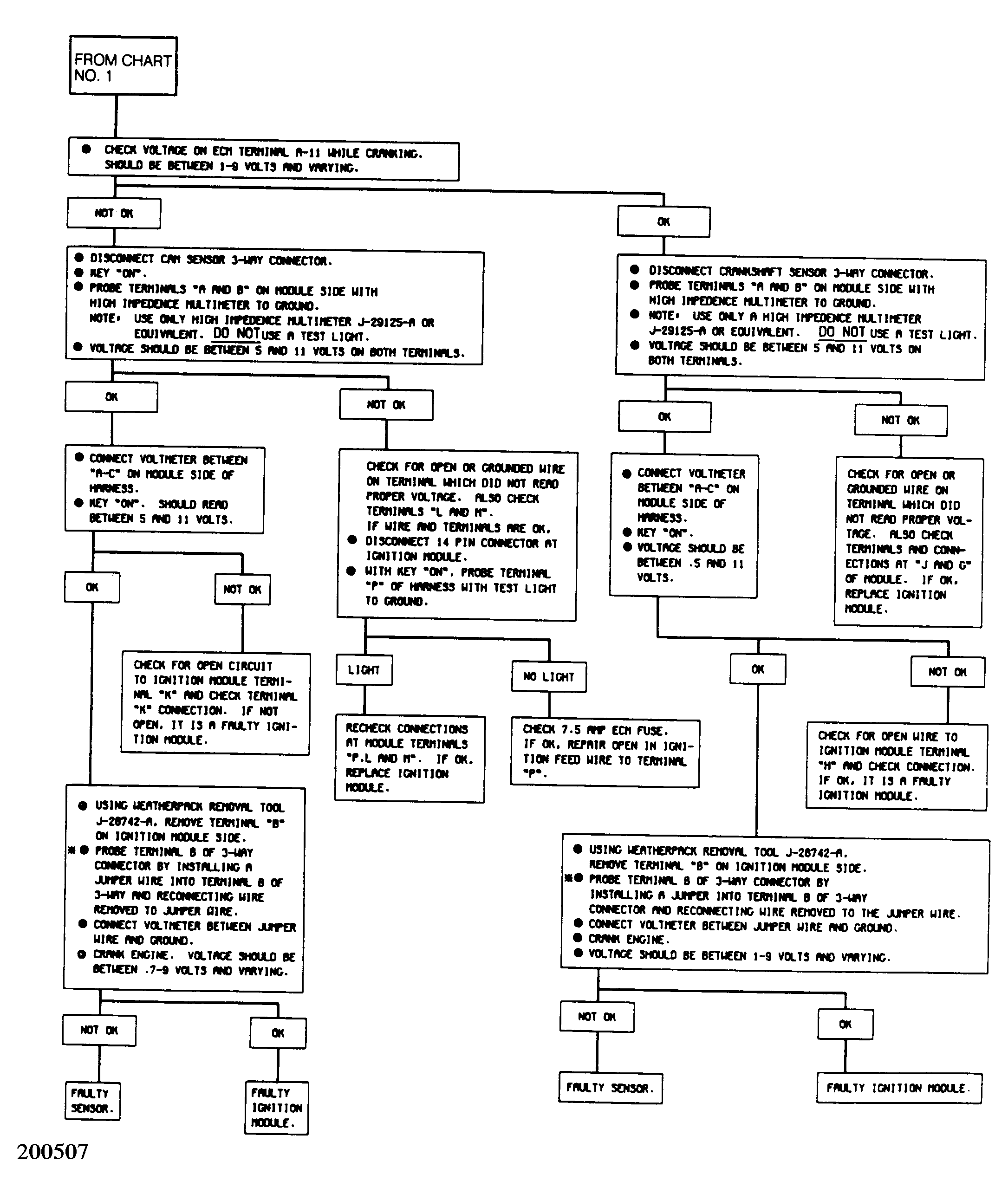

Fig 2: Ignition System Diagnosis - Chart 2

G200507
