ECM Terminal Identification

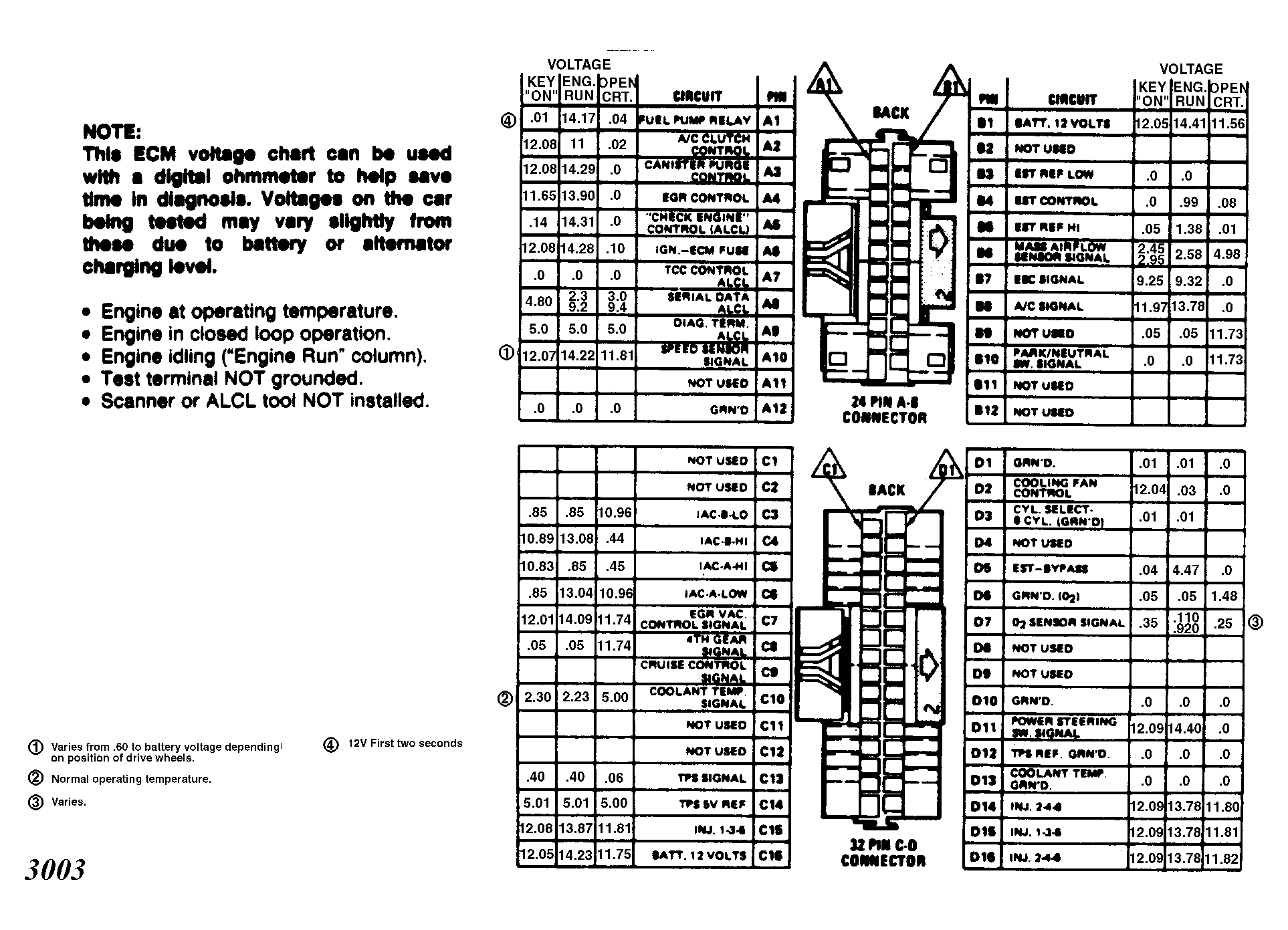

Fig 1: Port Fuel Injection ECM Terminal Identification 3.0L

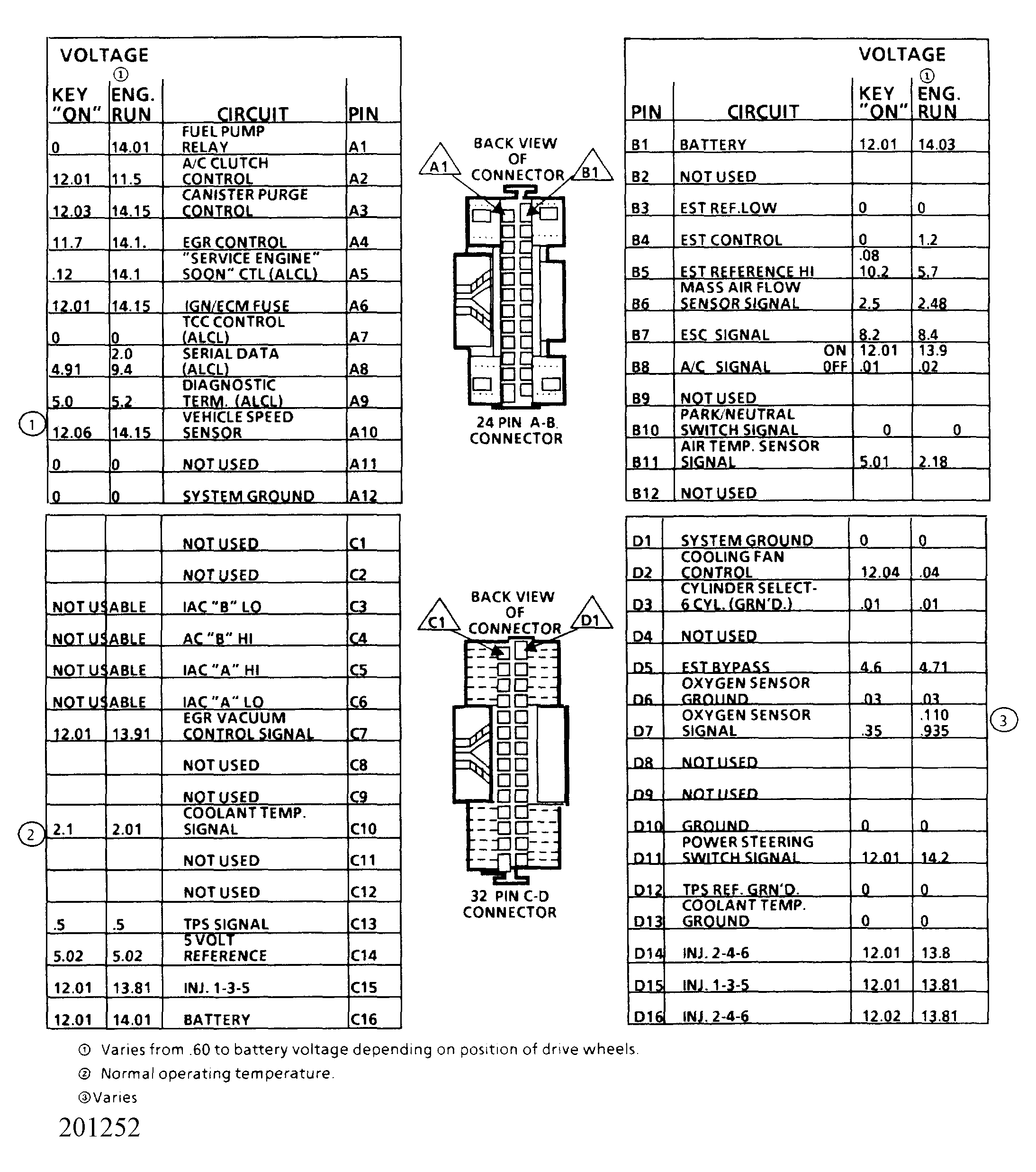

Fig 2: Port Fuel Injection ECM Terminal Identification 3.8L

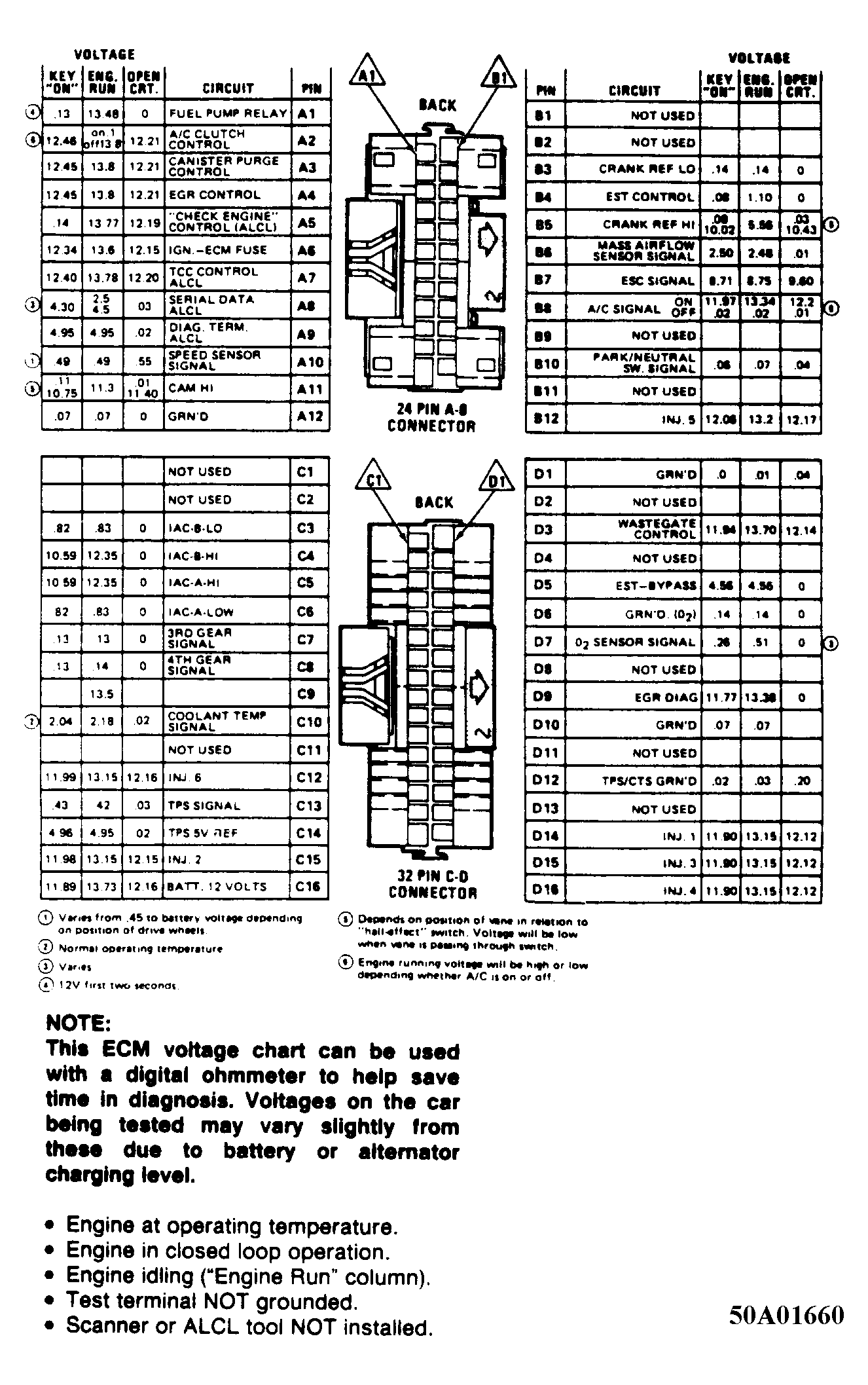

Fig 3: Port Fuel Injection ECM Terminal ID 3.8L Turbo
