Removal & Installation: Prom

If code 51 indicates a faulty PROM, check to see if PROM has bent pins, is fully seated in ECM, and is correctly aligned according to locating marks.

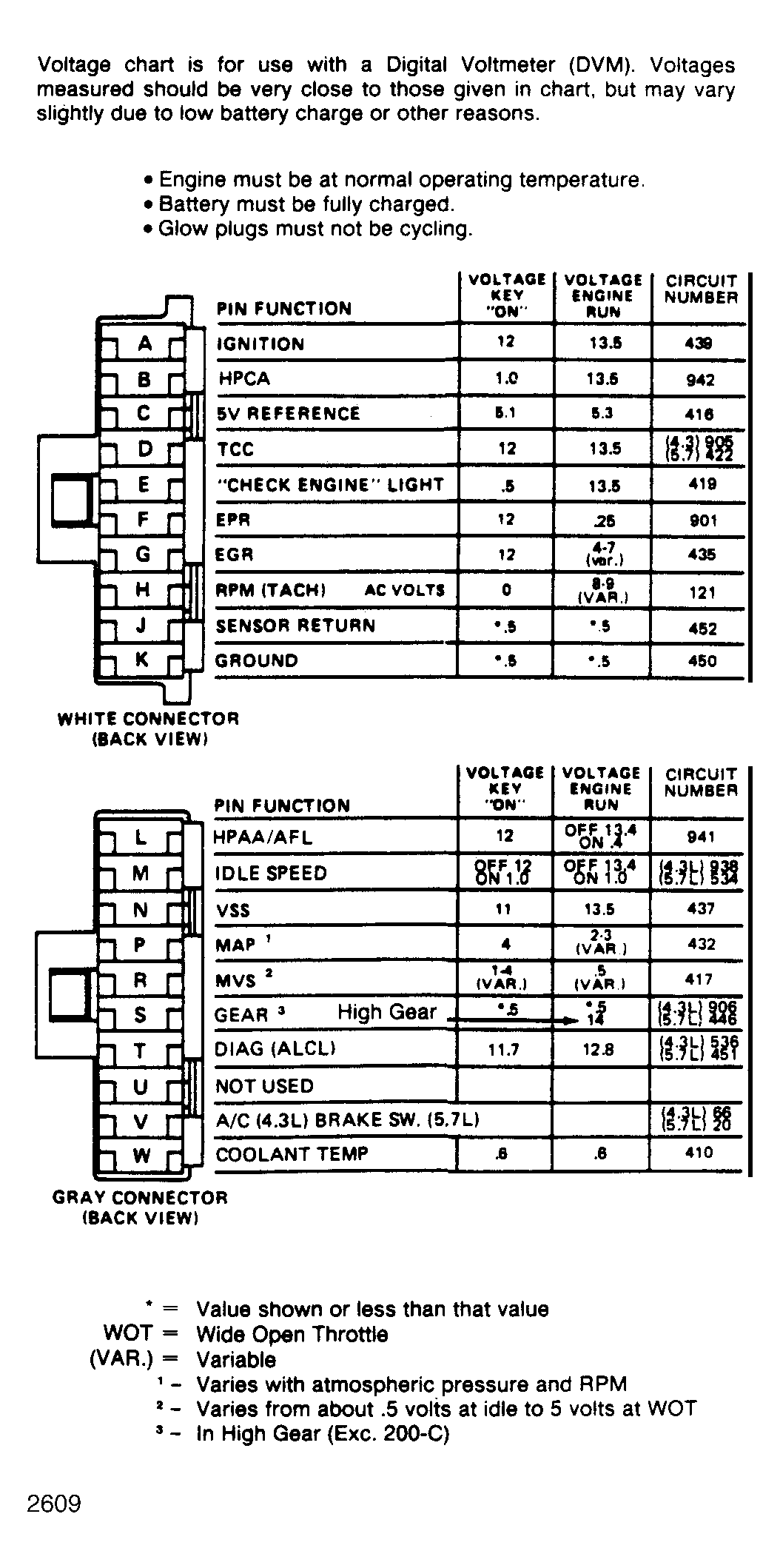

Fig 1: ECM Terminal Identification For 4.3L V6 & 5.7L V8 Diesel
G2609

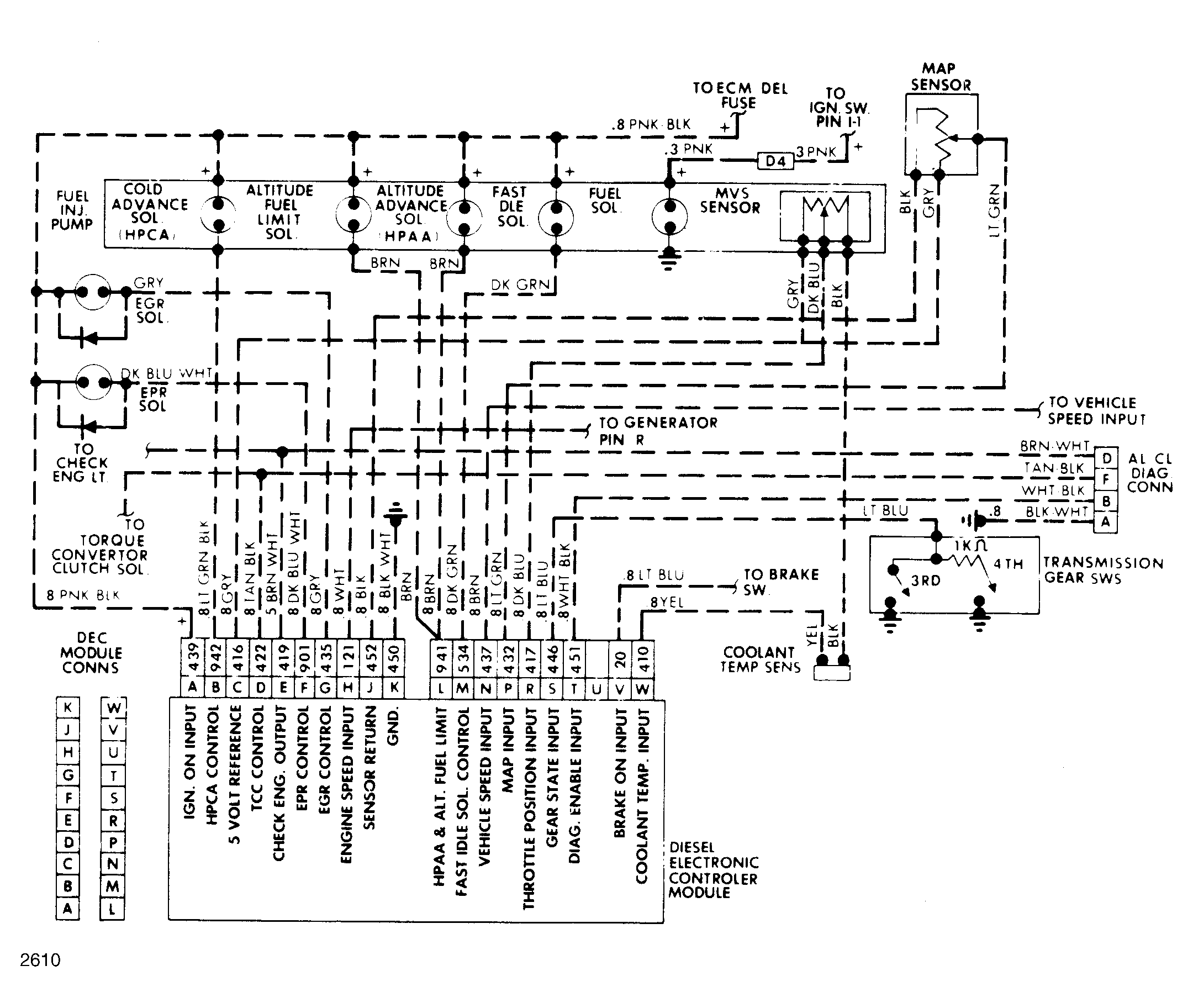

Fig 2: 4.3L V6 W/External EGR & 5.7L V8 Diesel Wiring Diagram
G2610
