Wiring Diagrams

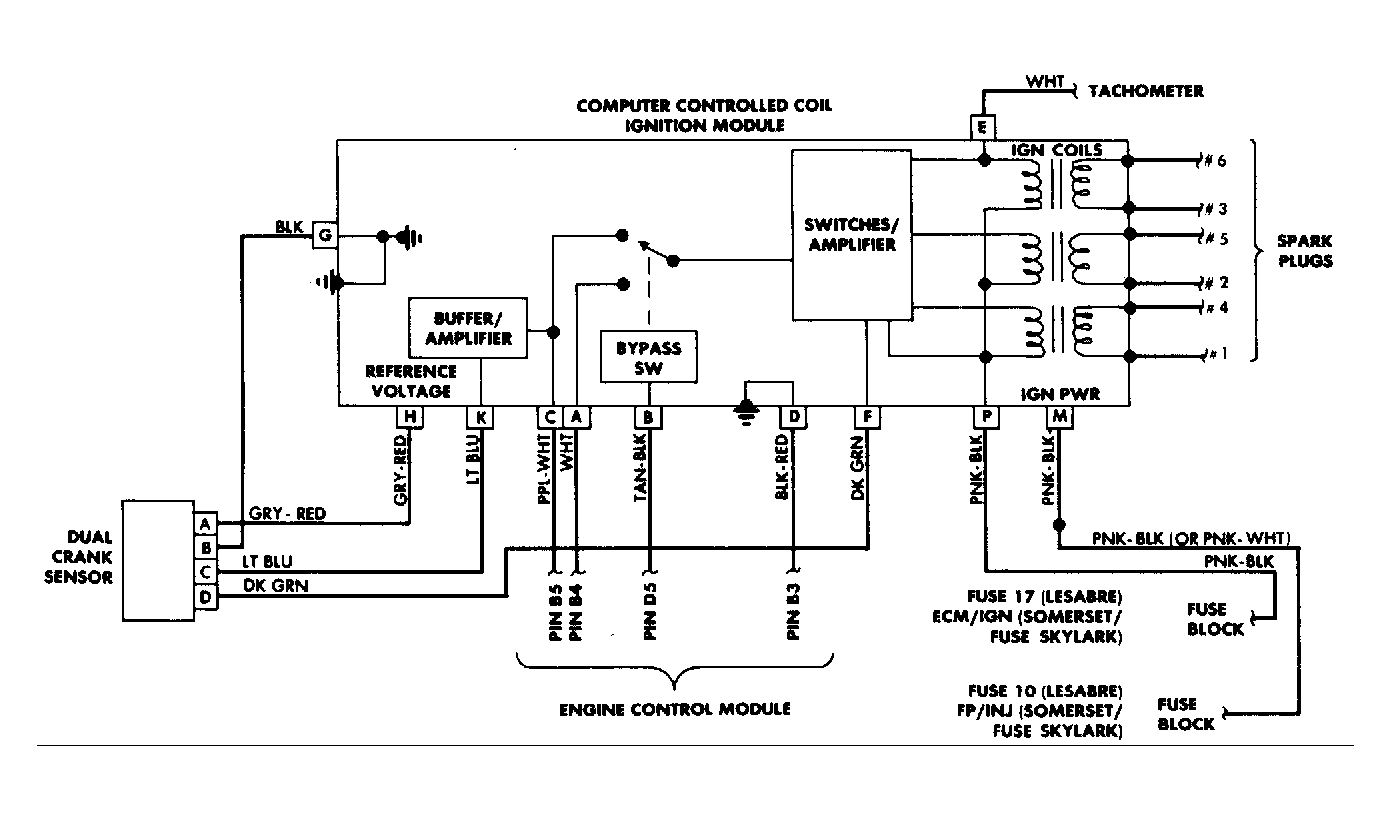

Fig 1: LeSabre (VIN L), Skylark & Somerset (3.0L) Schematic

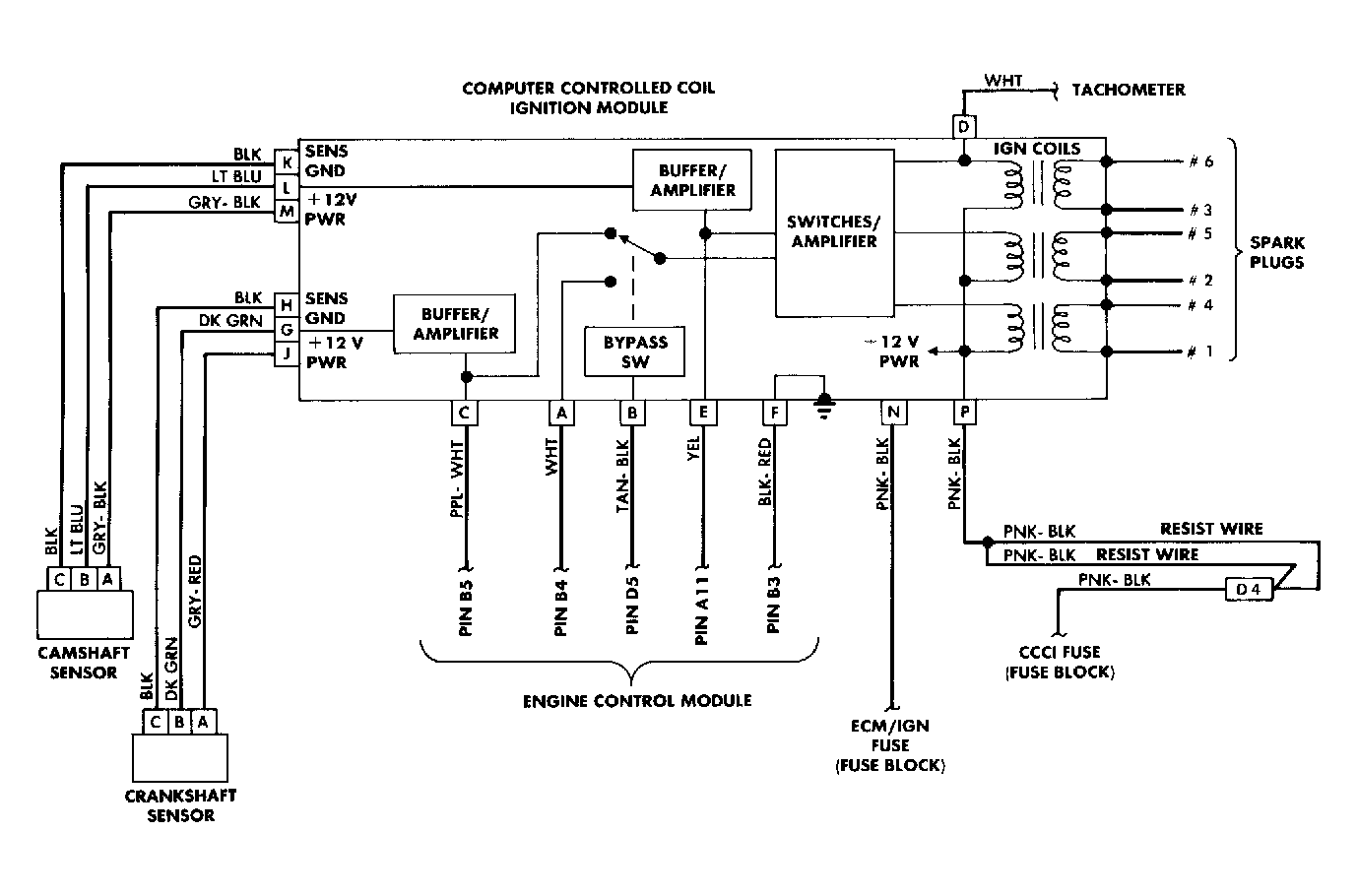

Fig 2: Regal C(3)I System Schematic

Fig 3: Electronic Spark Control System Schematic (All Models)

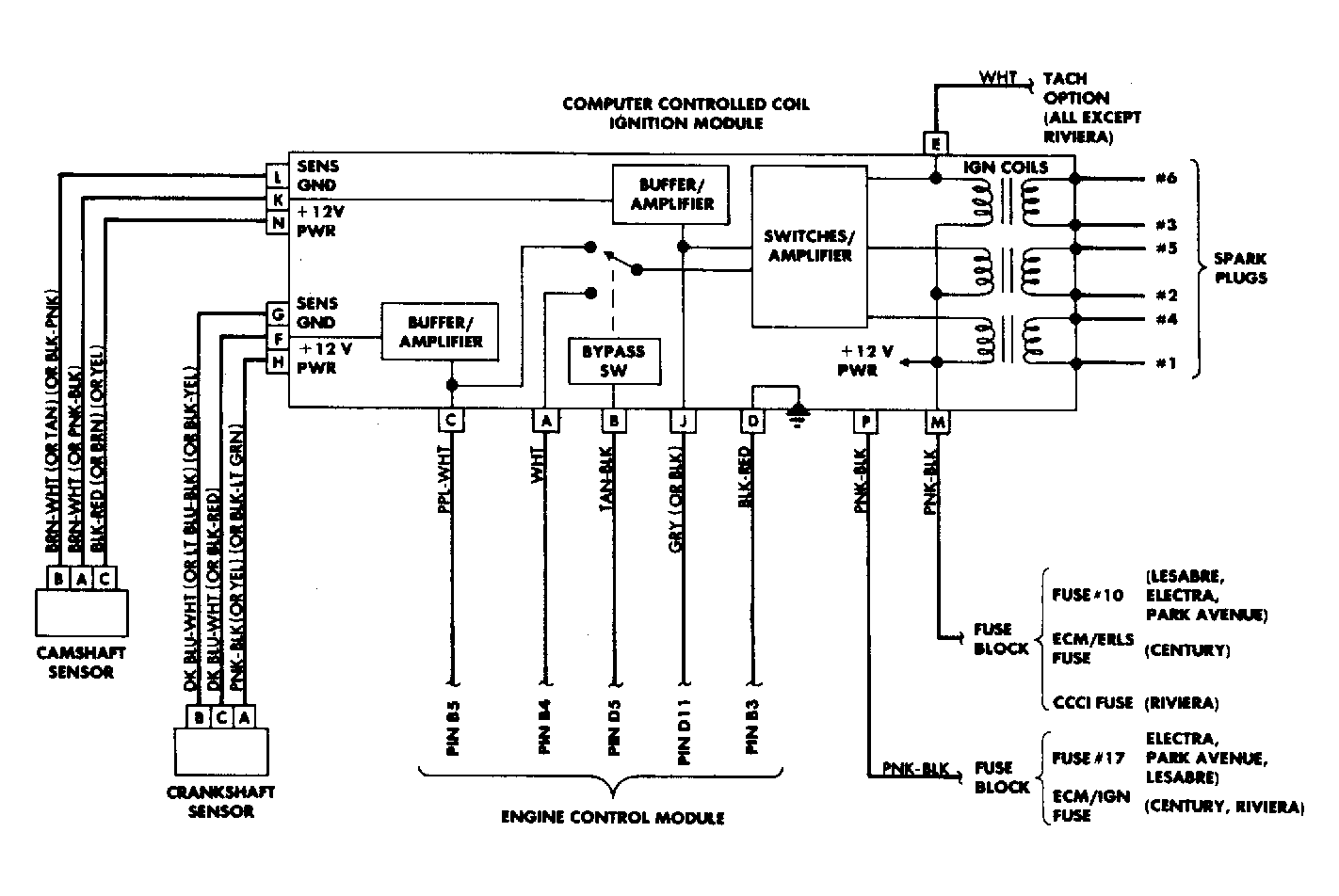

Fig 4: Century, Electra, LeSabre (VIN 3), Park Avenue & Riviera Schematic
