BCM System, Part I: Identification

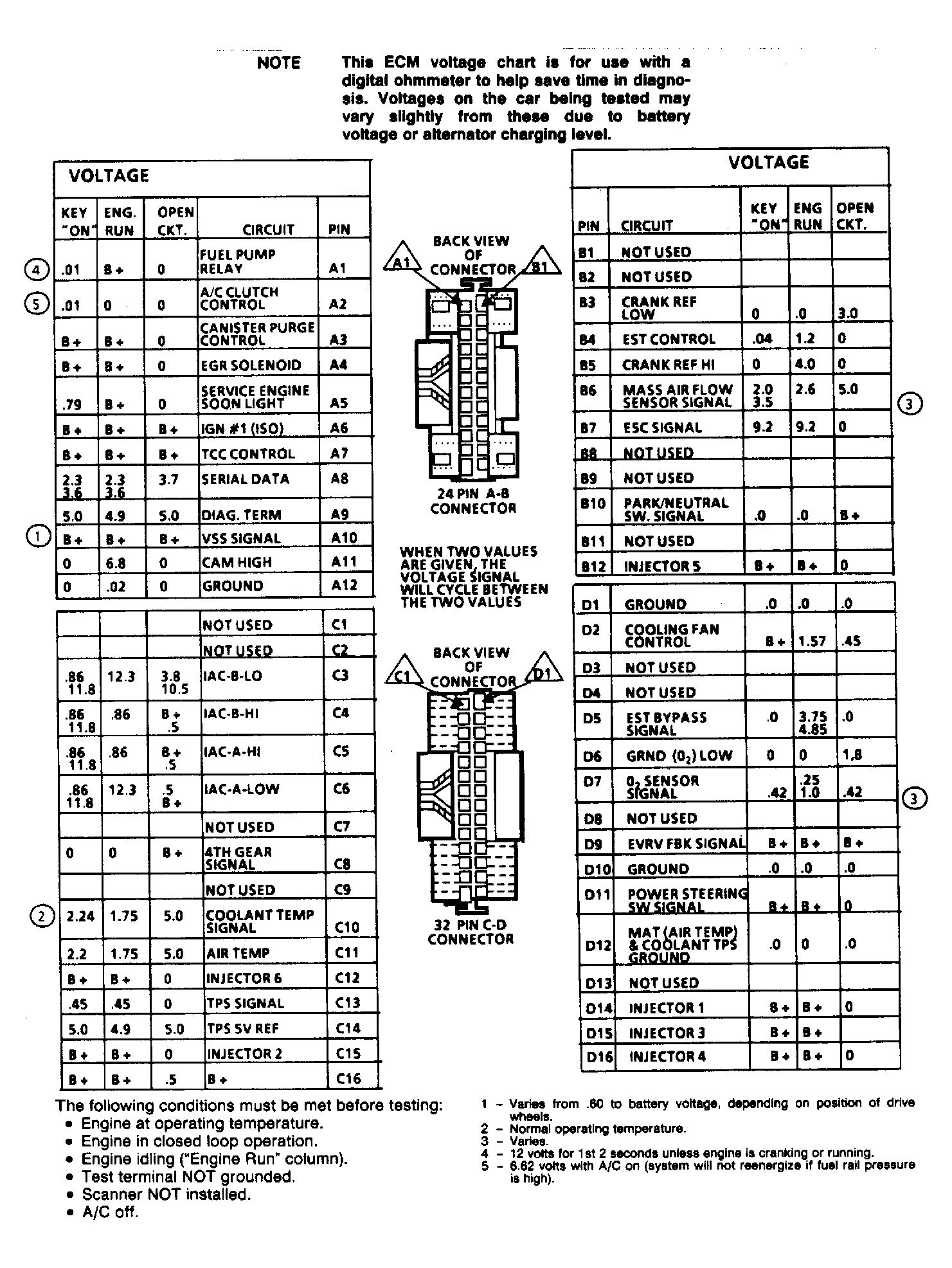

Fig 1: ECM Terminal Identification

G5011

The following conditions must be met before testing:

Engine at operating temperature.
Engine in closed loop operation.
Engine idling ("Engine Run" column).
Test terminal NOT grounded.
Scanner NOT installed.
A/C off.
