3.0L PFI Tests W/Codes
›
ECM Terminal Id
ECM Terminal Id

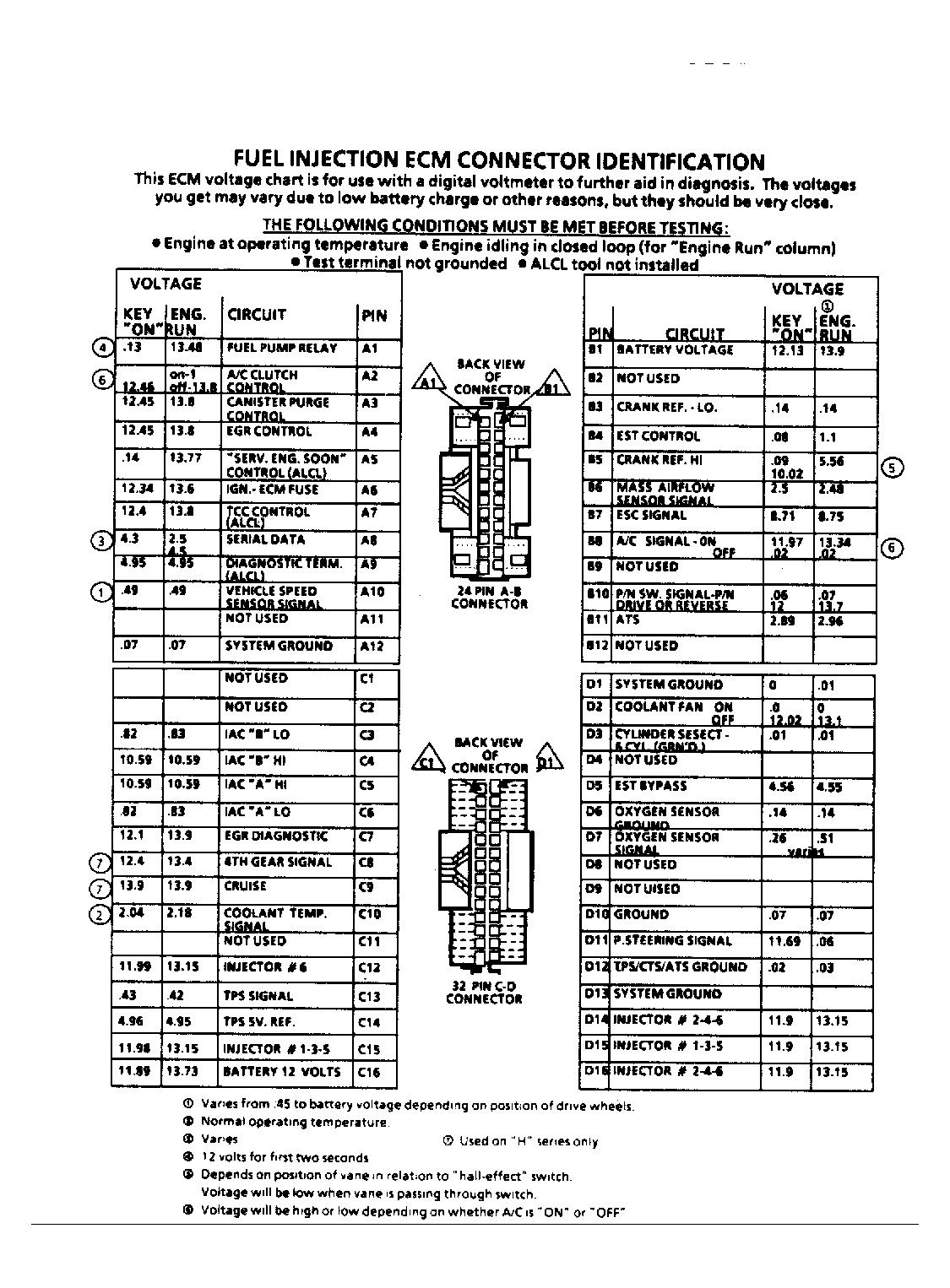

Fig 1: 3.0L PFI ECM Terminal Identification
