Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Antilock Brake System (ABS) Diode | Behind left side of instrument panel. |
| A/C Compressor Clutch Diode | In connector at rear of compressor. |
| A/C-Heater Blower Resistors | On right side of firewall at center of plenum. |

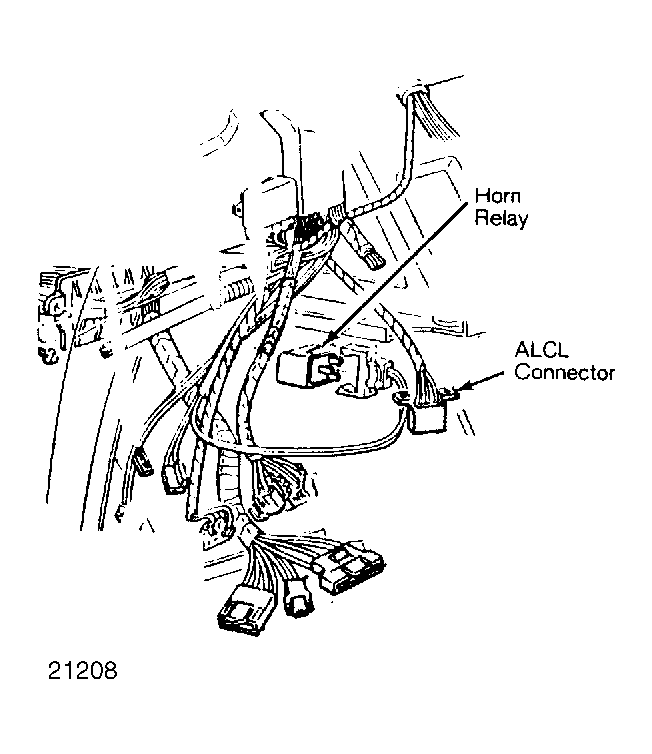

| ALCL Connector | Under left side of dash, to left of steering column. See Figure & 7. |
| Cooling Fan Resistor | On fan support frame behind radiator. |
| Cruise Control Servo | On top left side of engine. |
| Fuel Pump Prime Connector | Taped to wiring harness, near left front wheelwell. |

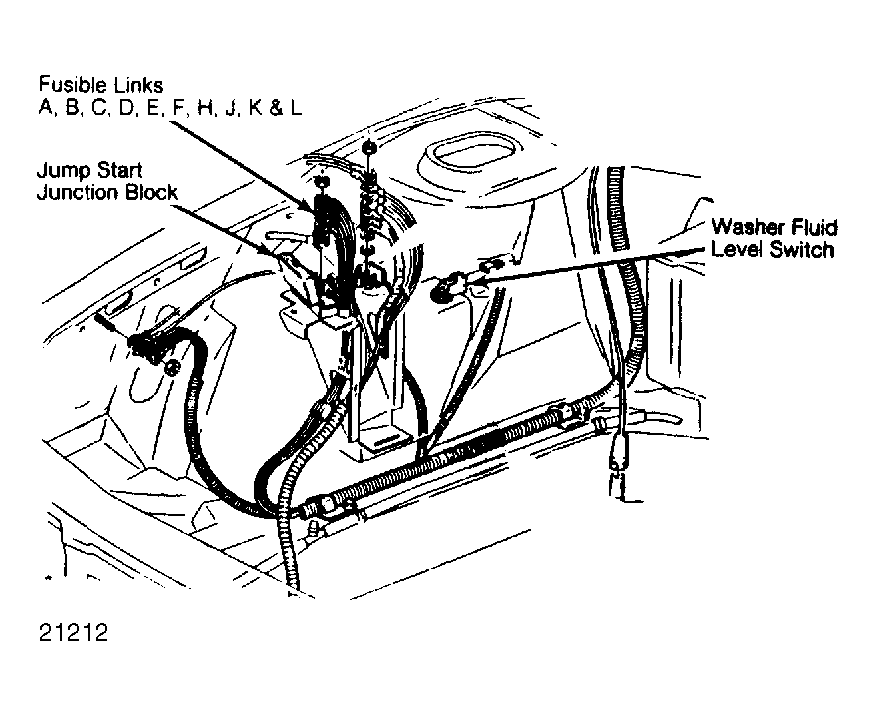

| Jump Start Junction Block | In front of right front wheelwell. See Figure . |
| Power Seat Circuit Breaker | In right side of fuse block position No. 24. |
| Power Seat Diode | In connector at front of each seat. |
| Power Seat Recliner Capacitor | In connector below front seats |
| Power Window Circuit Breaker | In right side of fuse block, position No. 23. |

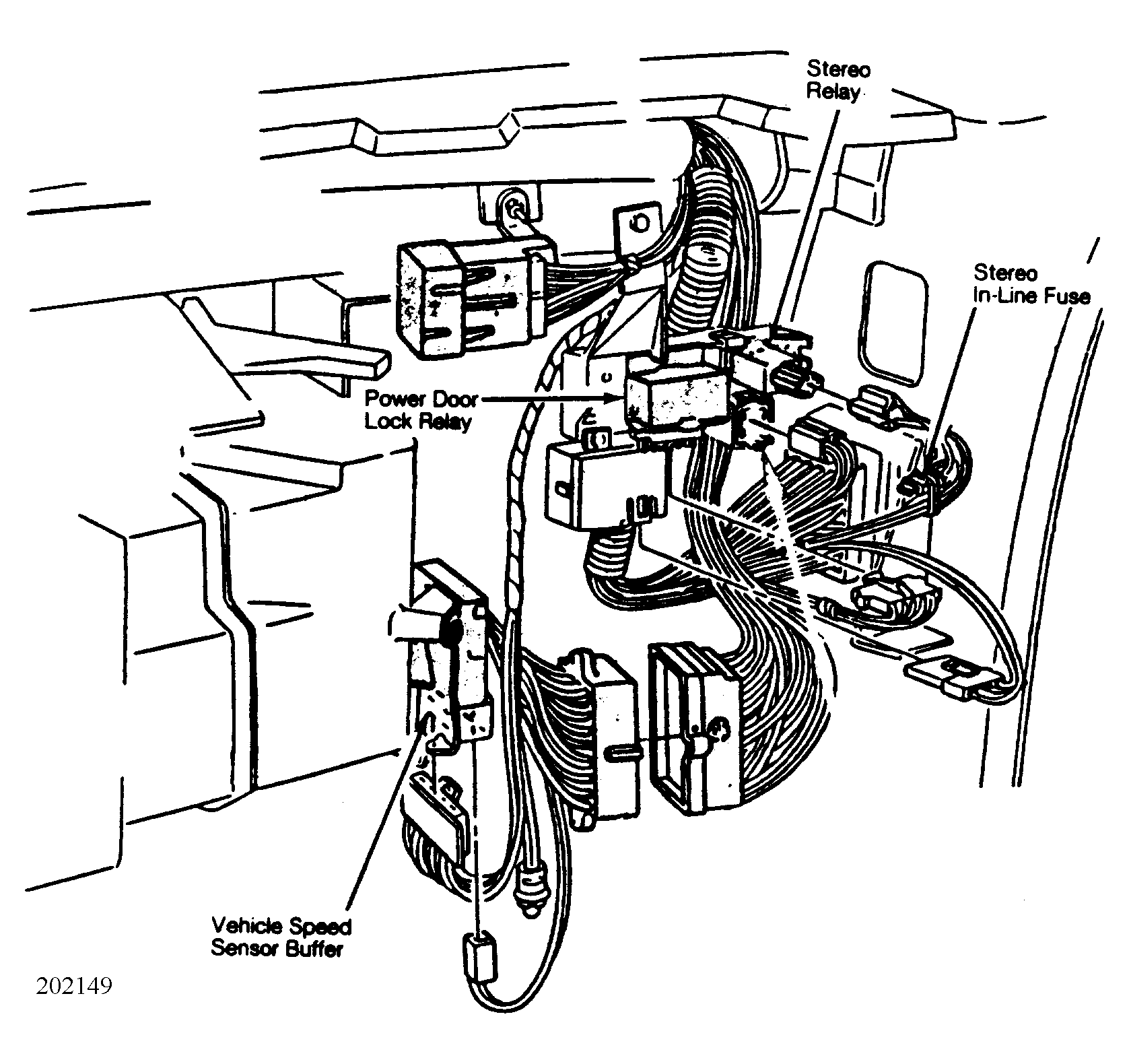

| Stereo In-Line Fuse | Under right side of dash near kick panel. See Figure . |
| Vehicle Speed Sensor Buffer | Under right side of dash on plenum. See Figure . |
