2.0L PFI Tests
›
PFI ECM Terminal Identifications
PFI ECM Terminal Identifications

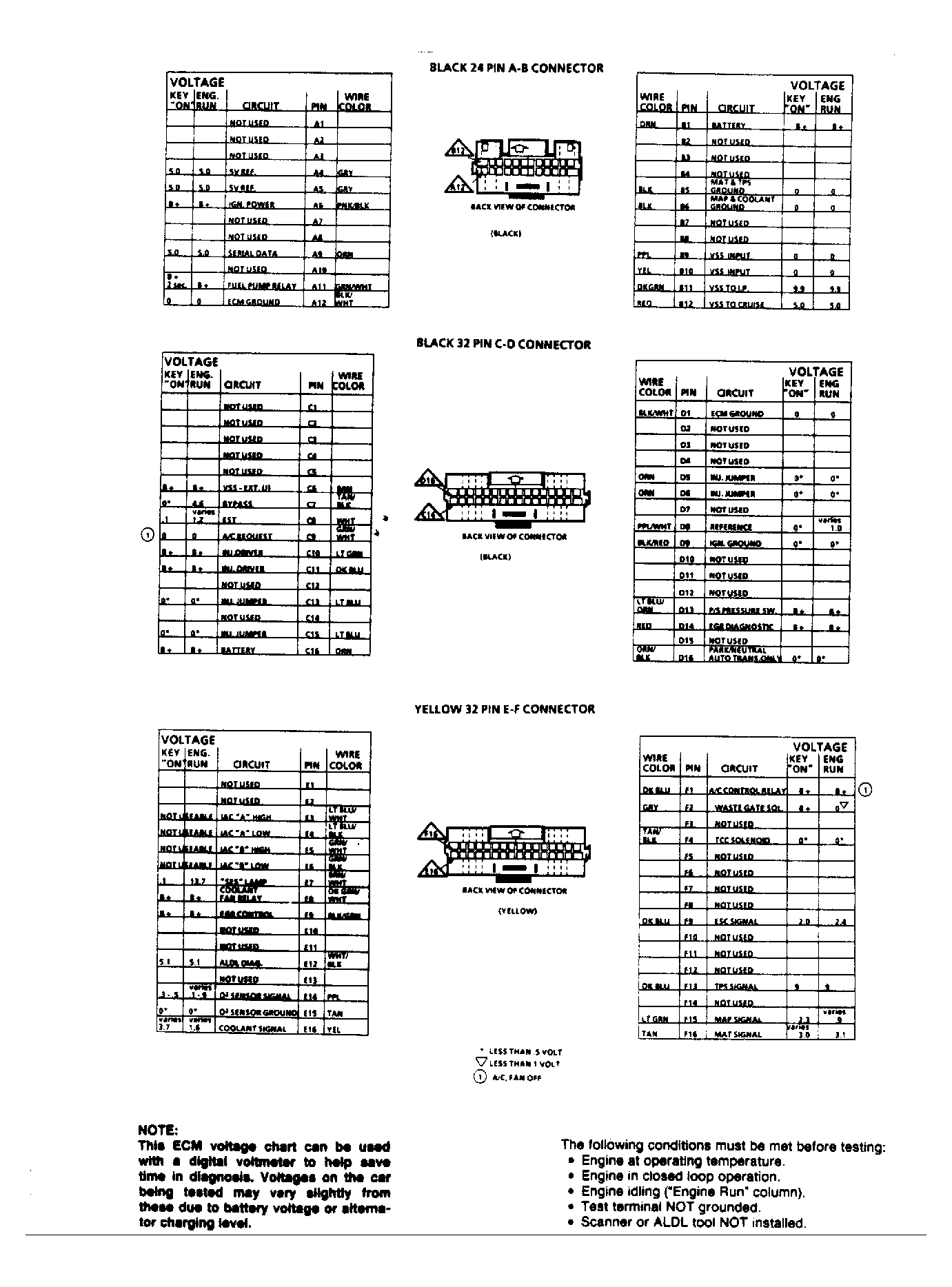

Fig 1: PFI ECM Terminal ID, (VIN M)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
