Buick
›
1987
›
Skyhawk Sport, 2.0 M, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
2.0L PFI Tests
›
Component Locations
Component Locations

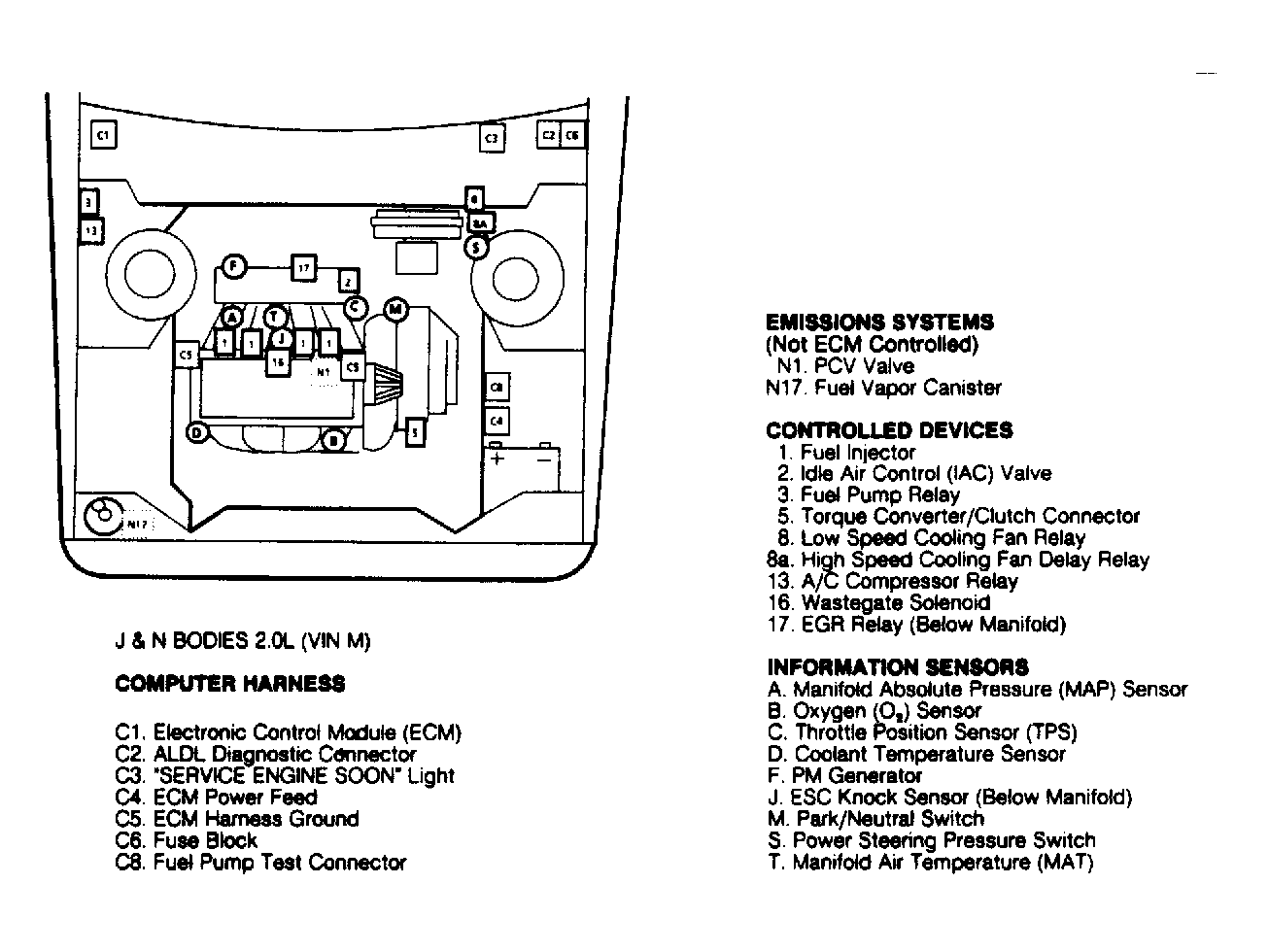

Fig 1: PFI Component Locations, (VIN M)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
