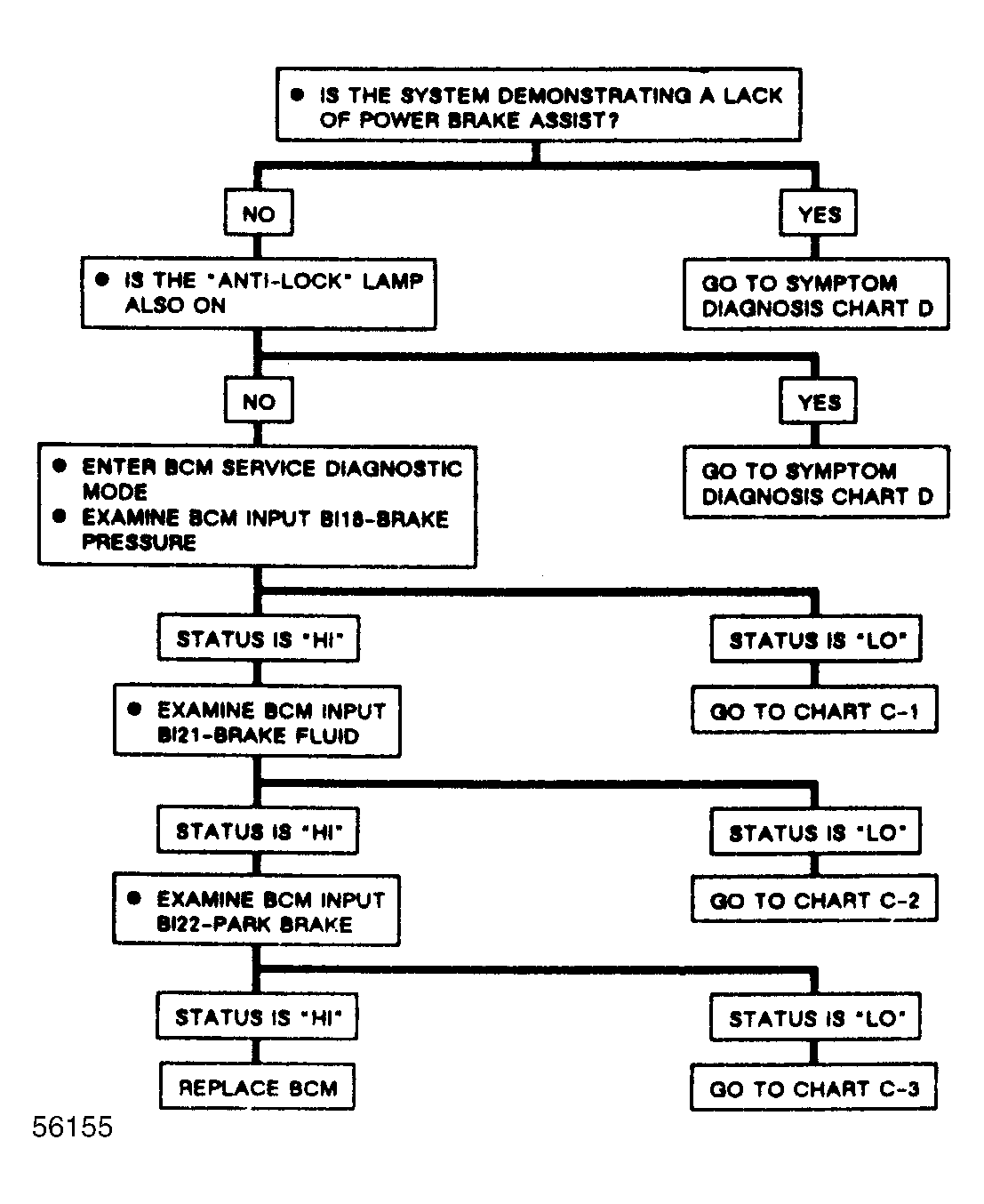

Chart C "Brake" Light On & No Codes
This chart should be used as directed by FUNCTIONAL CHECK chart. This light operates through BCM. See ACCESSING BCM TROUBLE CODES. There are 3 inputs that activate this light
- Brake Pressure Switch
- Brake Fluid Level
- Parking Brake Input
