Wiring Diagrams

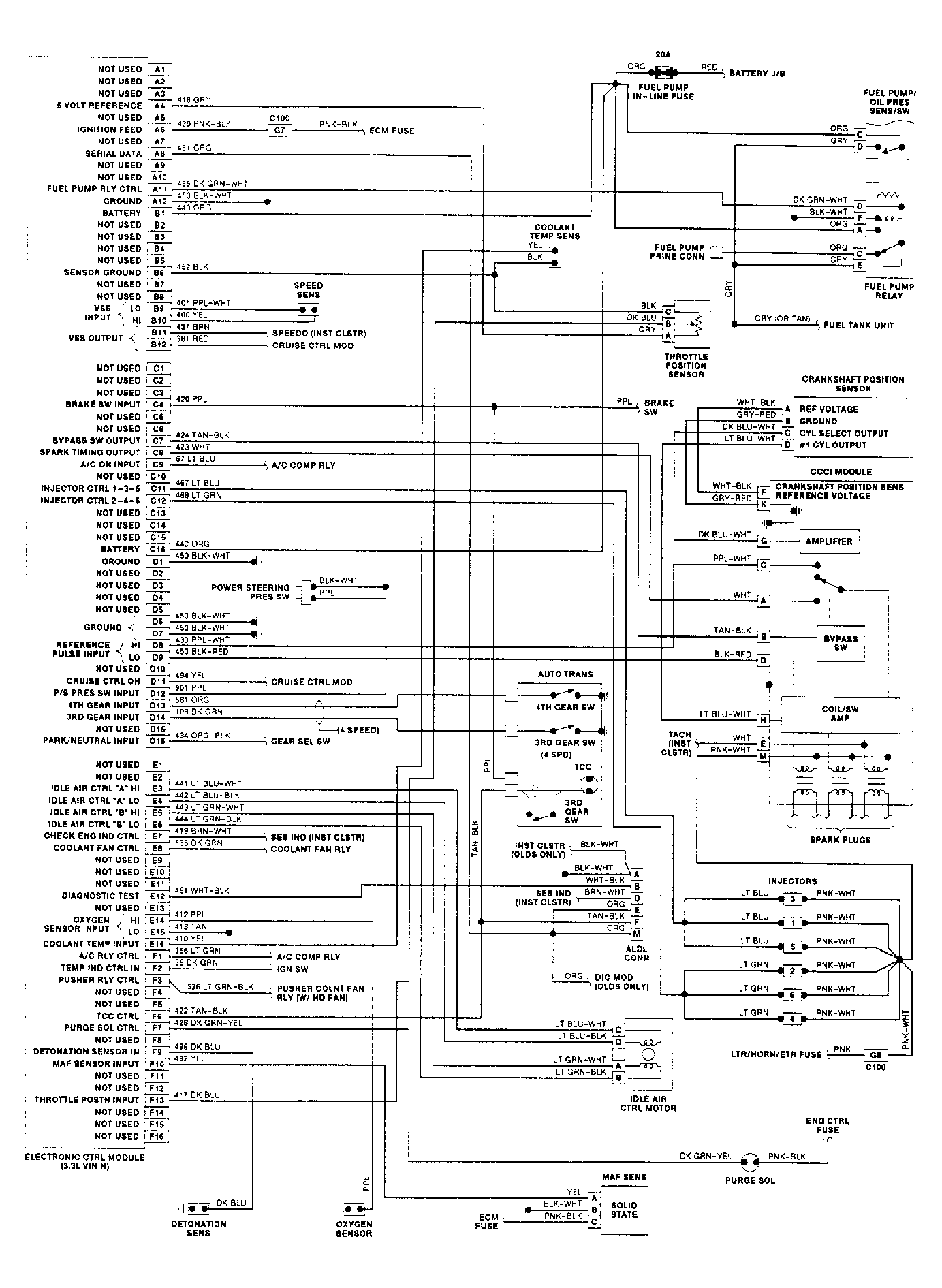

Fig 1: PFI Wiring Diagram (3.3L VIN N, "A" Body)

G111271

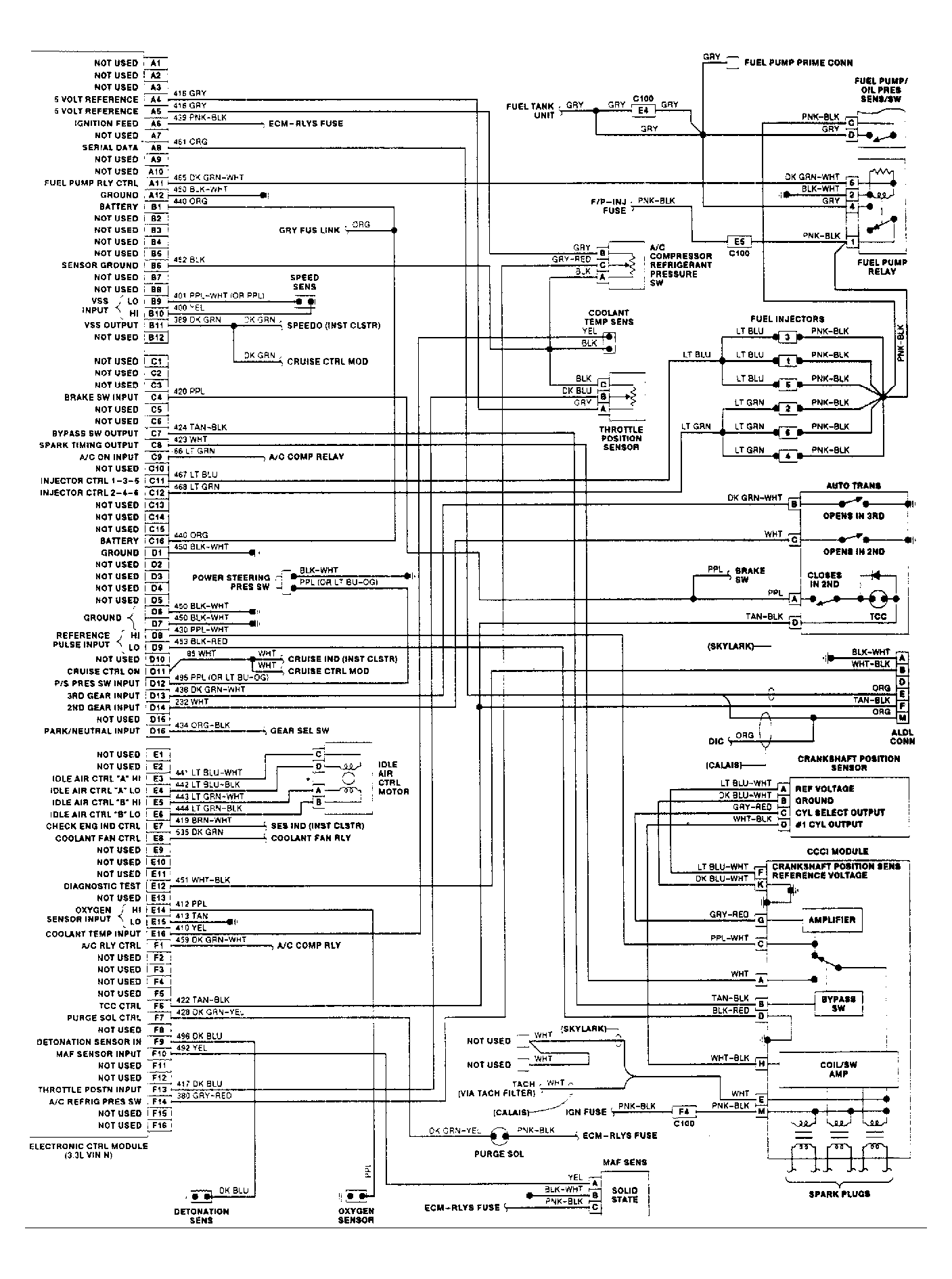

Fig 2: PFI Wiring Diagram (3.3L VIN N, "N" Body)

G111272

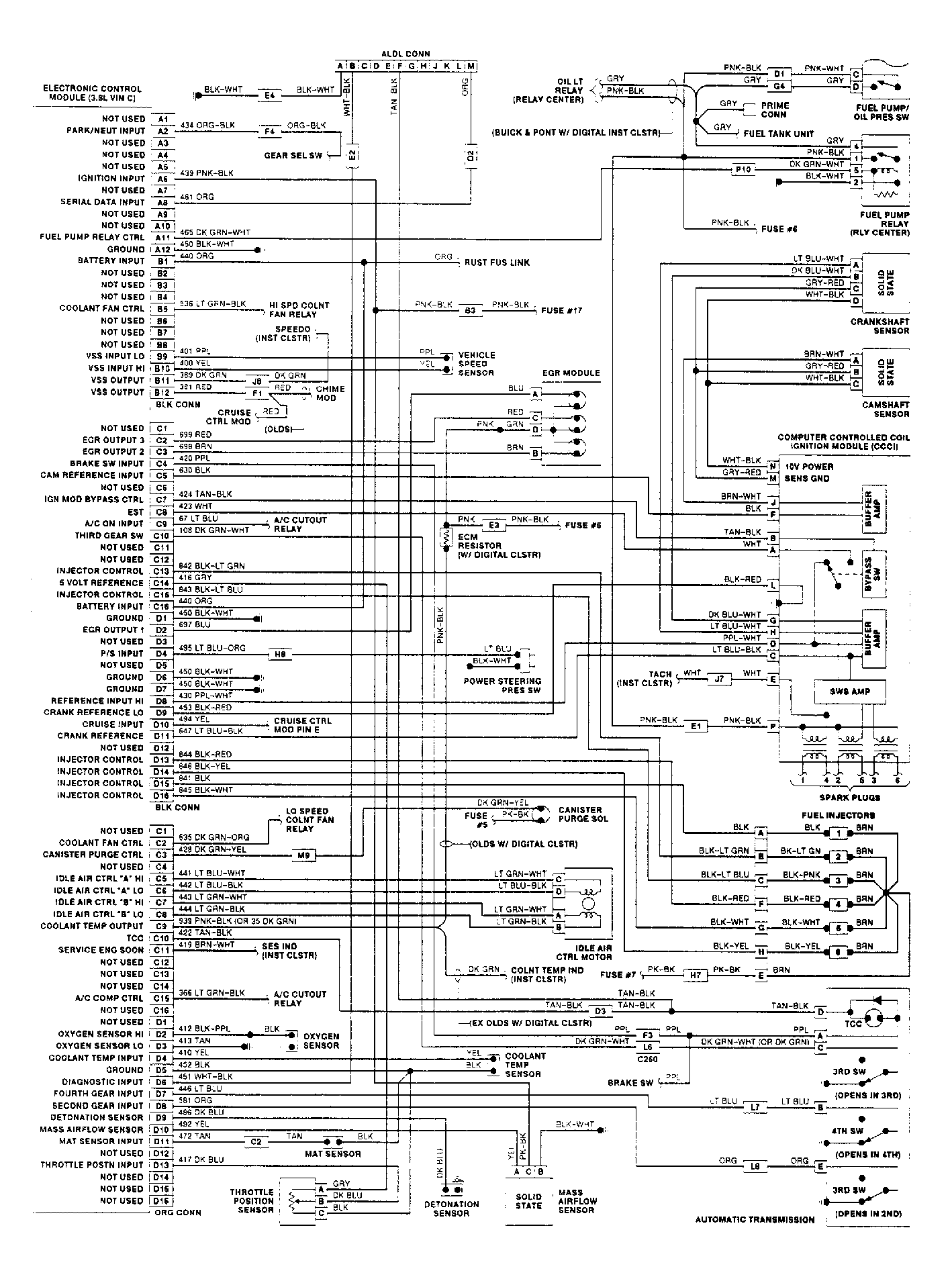

Fig 3: PFI Wiring Diagram (3.8L VIN C, "C" & "H" Bodies)

G111273
