Note On Intermittents

If an intermittent Code B132 is being set, manipulate the related wiring while observing BCM data parameter BD71. If the failure is induced, the reading will to a high oil pressure.

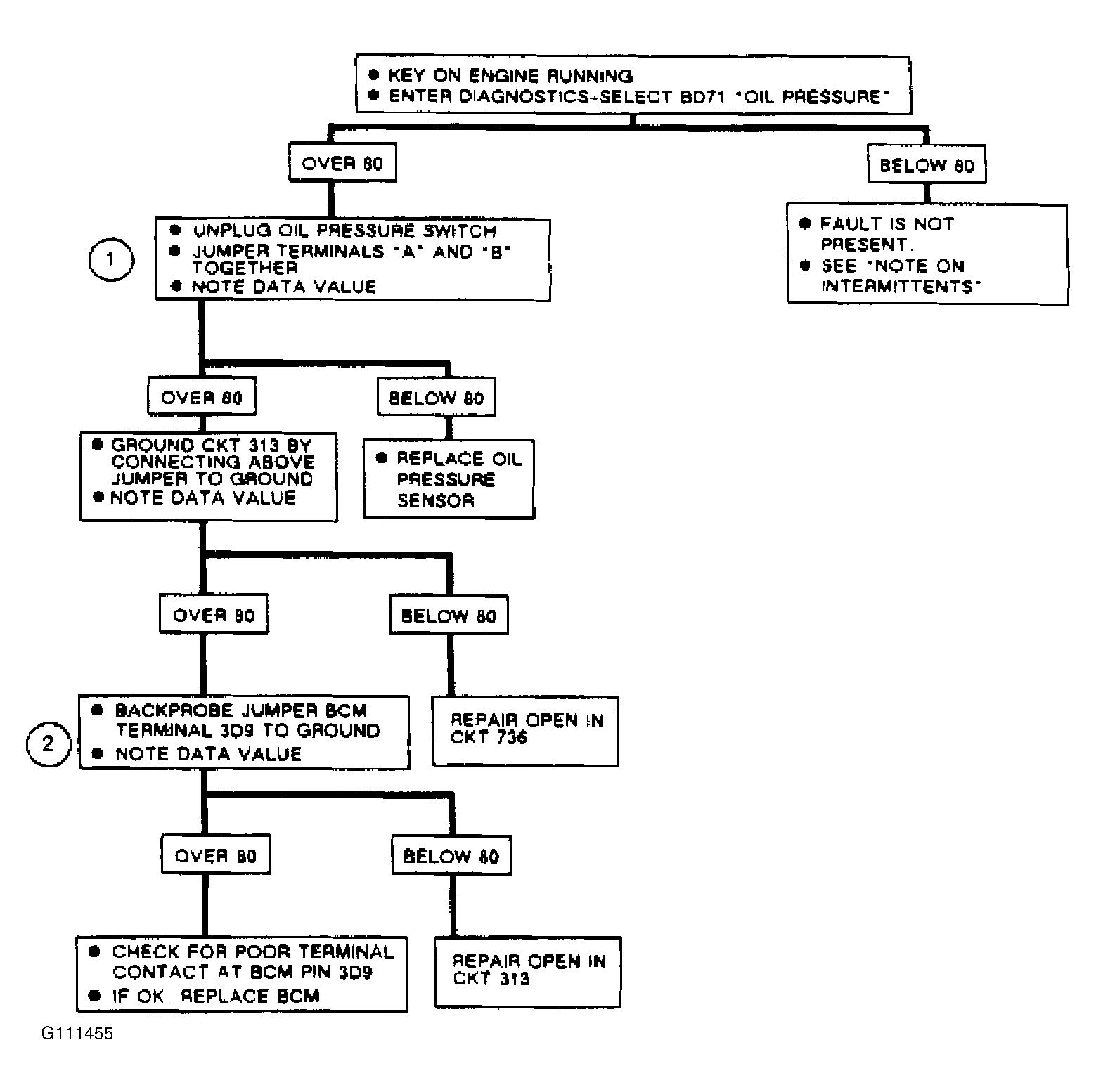

Fig 1: Code B132, Flow Chart Engine Oil Pressure Sensor Circuit Faulty
G111455
