Diagnostic Aids

If engine is allowed to cool overnight, the coolant and MAT sensors, when measured with a "Scan" tester, should read close to each other. A Code 25 also results if circuit No. 472 is shorted to ground.

Fig 1: Code 25 Schematic, MAT Sensor Temp High
G110326

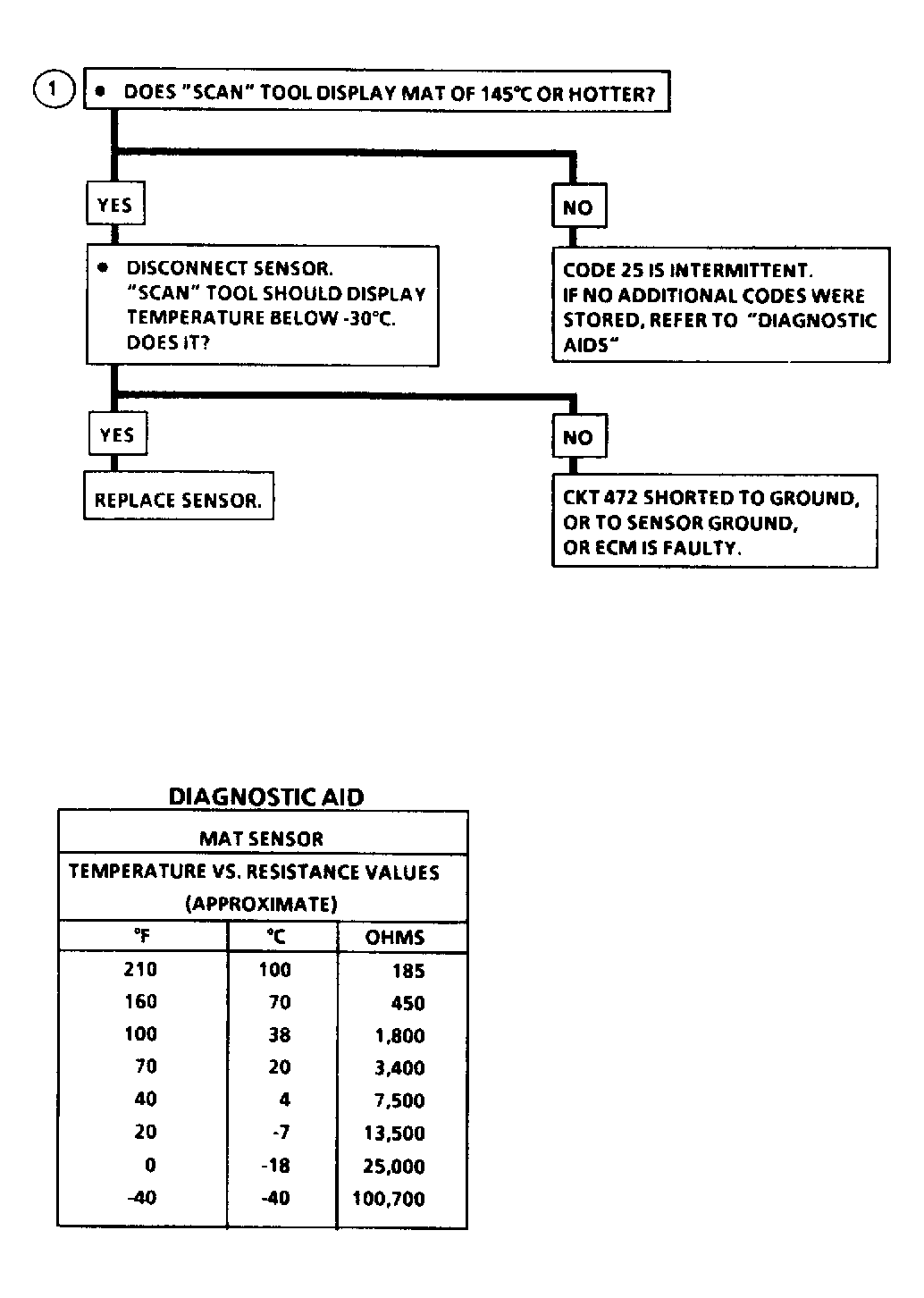

Fig 2: Code 25 Flow Chart, MAT Sensor Temp High
G110331
