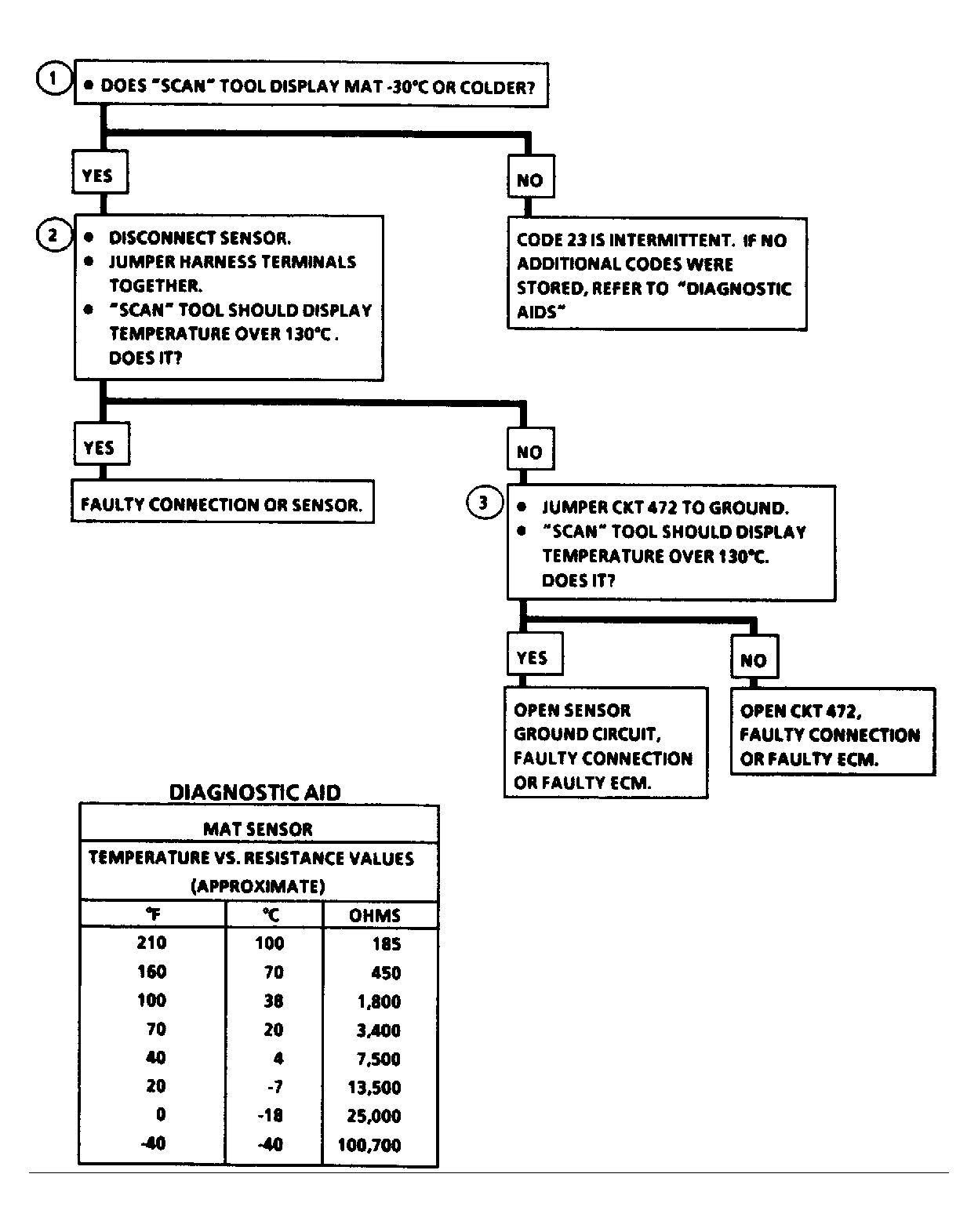

Diagnostic Aids
If the engine is allowed to cool overnight, the coolant and MAT sensors, when measured with a "Scan" tester, should read close to each other.
When Code 15 is set, the ECM will turn on the cooling fan. A Code 23 will also result if circuits No. 472 or 469 become open.
