Serial Data Circuit Multiple Intermittent Codes

Fig 1: Serial Data Circuit Diagram

G90H21755

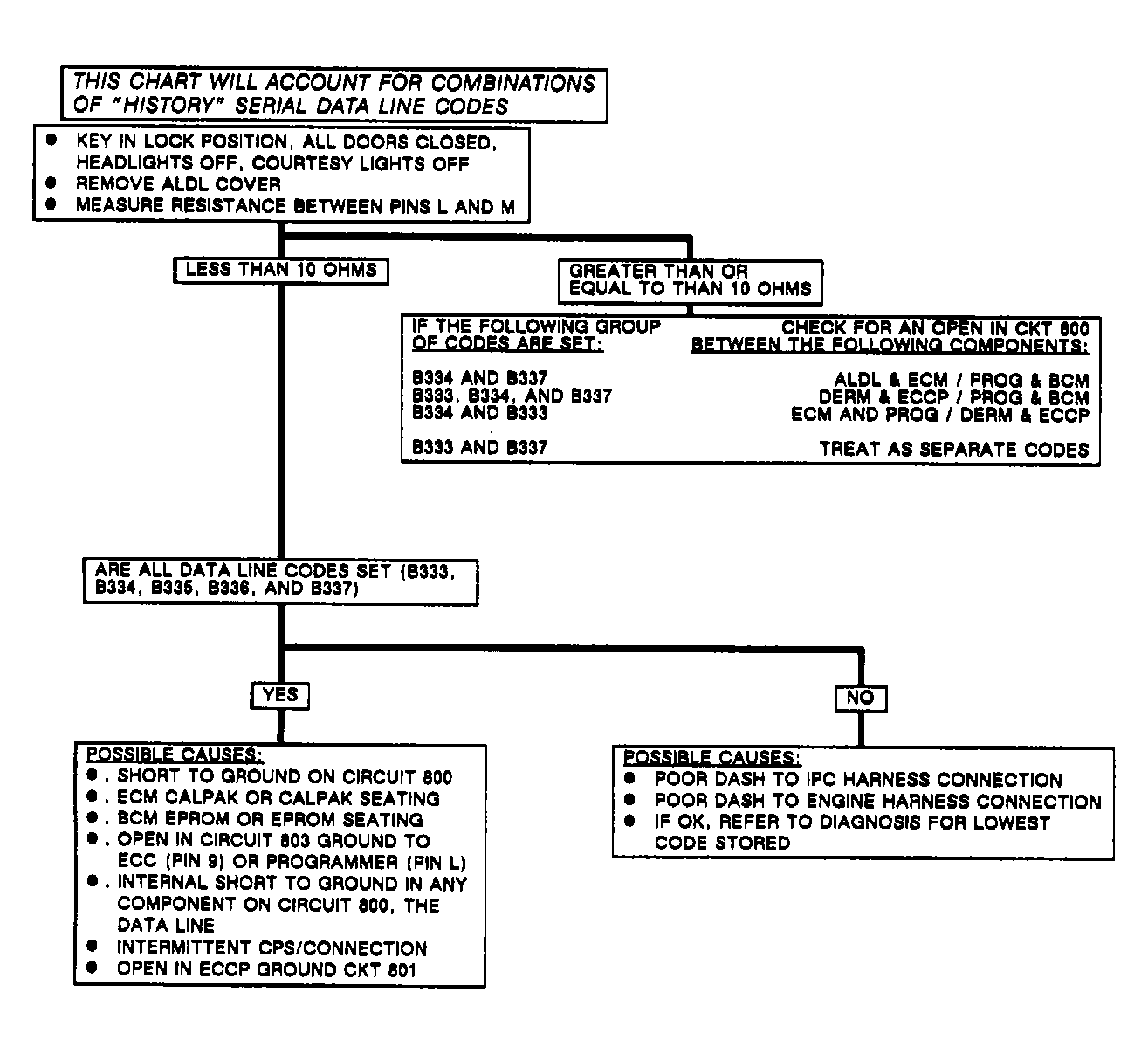

Fig 2: Serial Data Flow Chart

G90G14619
