System Operation Check

  1. Use the System Check Chart as a guide to normal operation. See Fig 1 .
  2. If problem exists, repair by symptom. See Figure under SYSTEM TESTS.

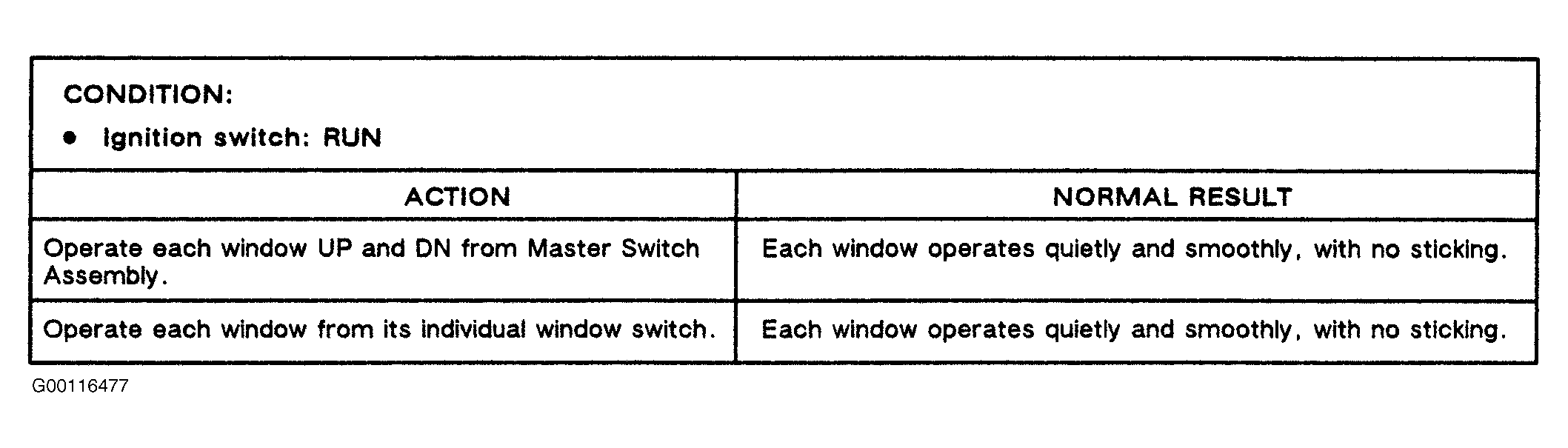

Fig 1: System Check Chart
G00116477Courtesy of GENERAL MOTORS CORP.
