Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Fuse/Relay Blocks | |||

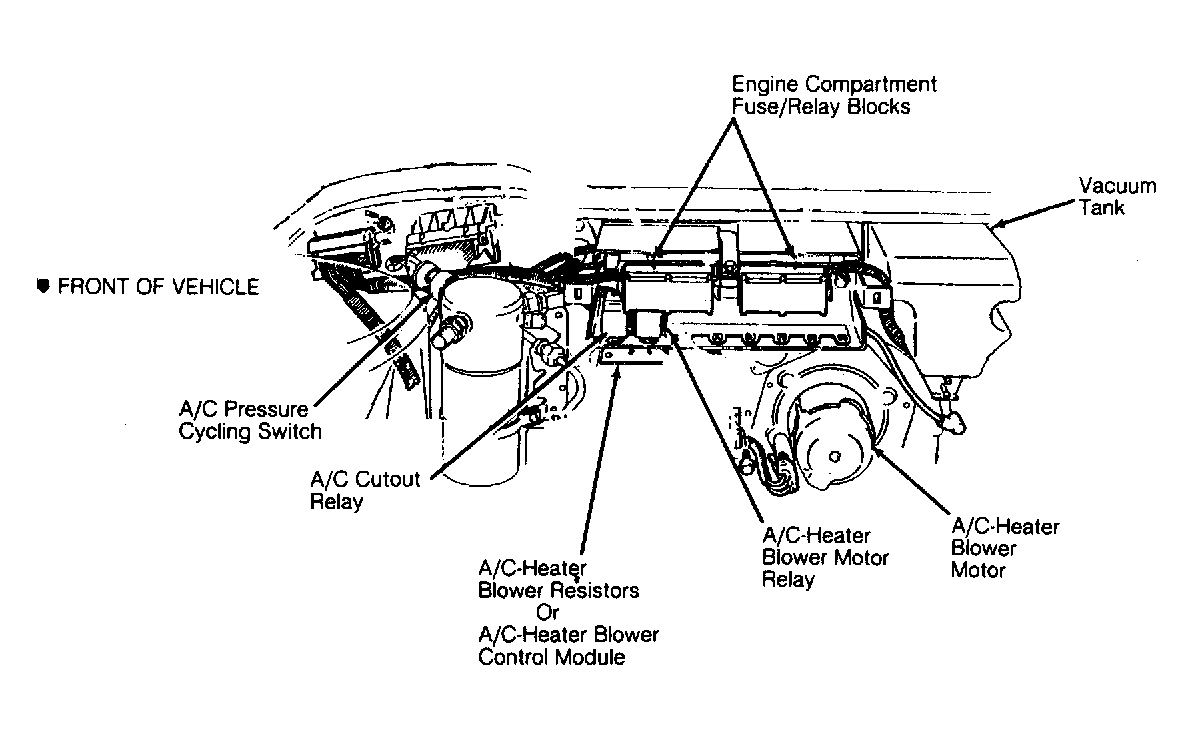

| Engine Compartment | On right side of firewall. See Figure . | ||
| Passenger Compartment | Behind left side of dash. See Figure . | ||
| Power Door Lock Circuit Breaker | In passenger compartment fuse/relay block. | ||
| Power Seat Circuit Breaker | In passenger compartment fuse/relay block. | ||
| Power Window Circuit Breaker | In passenger compartment fuse/relay block. | ||
| Relay Center | |||
| Engine Compartment | On right side of firewall. | ||
| Passenger Compartment | |||
| 3.8L VIN L | Behind right side of dash. See Figure . | ||
| 3.8L VIN C | Behind right side of dash. See Figure . | ||
