Code 41, Cam Sensor Circuit: Notes

Quick reference:

See Figure for Code 41 flow chart.

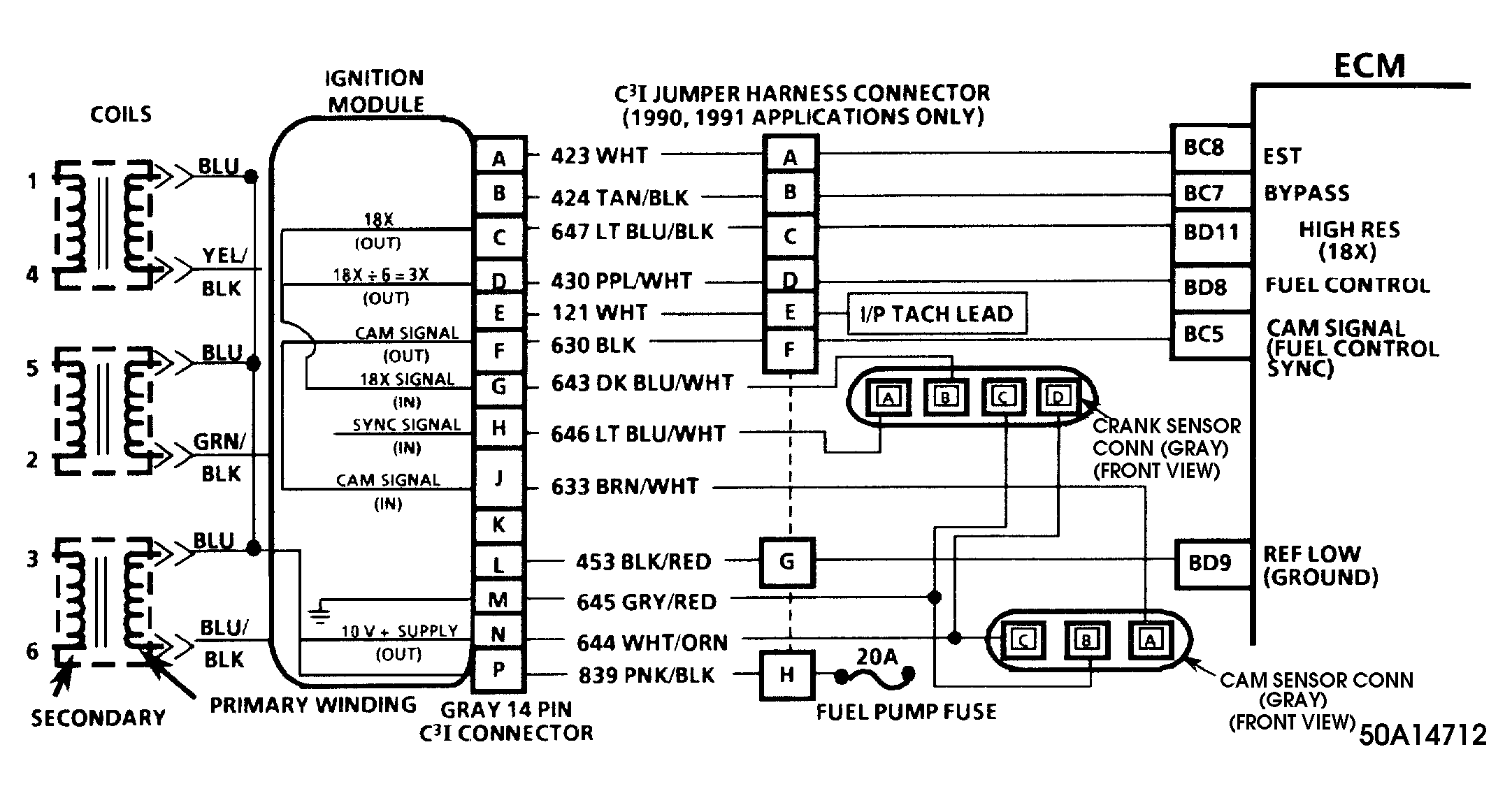

See Figure for Code 41 supplemental wiring.
