Trim Panel: Installation

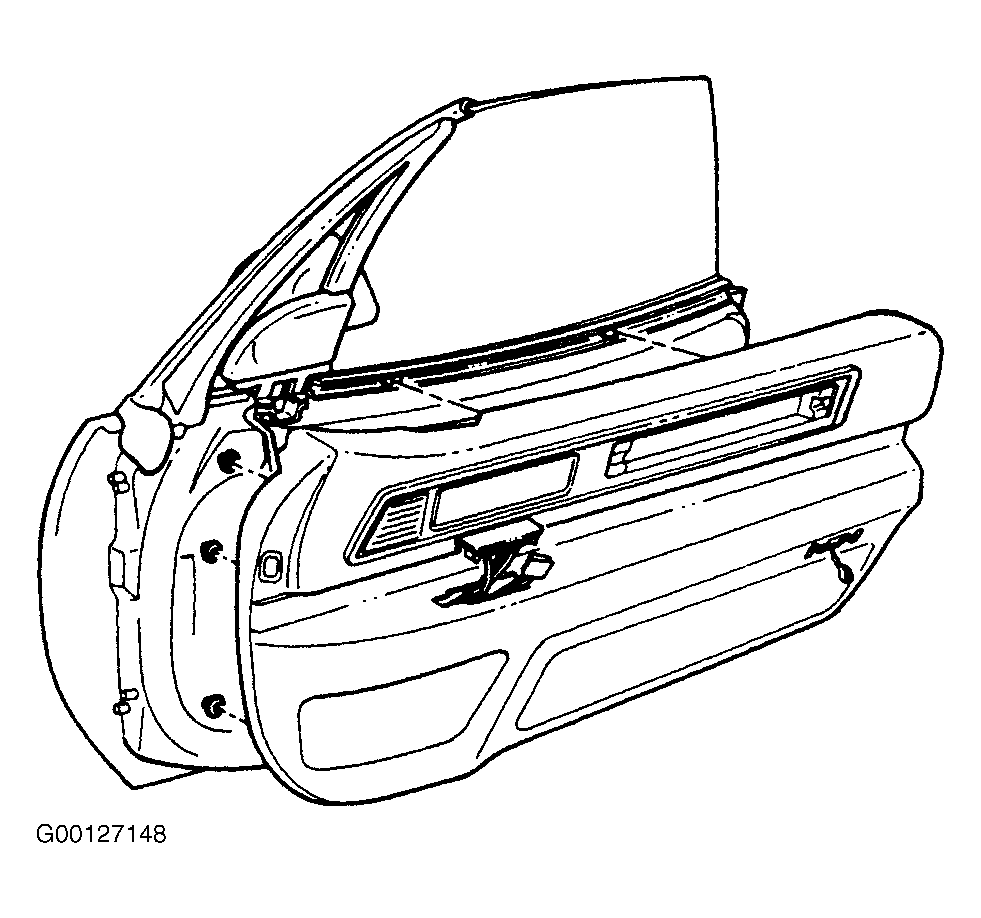

Position trim panel close and install electrical connectors. See Figure and Figure .
On Riviera, insert hooks at top.
On Reatta, align top of panel into retainer.

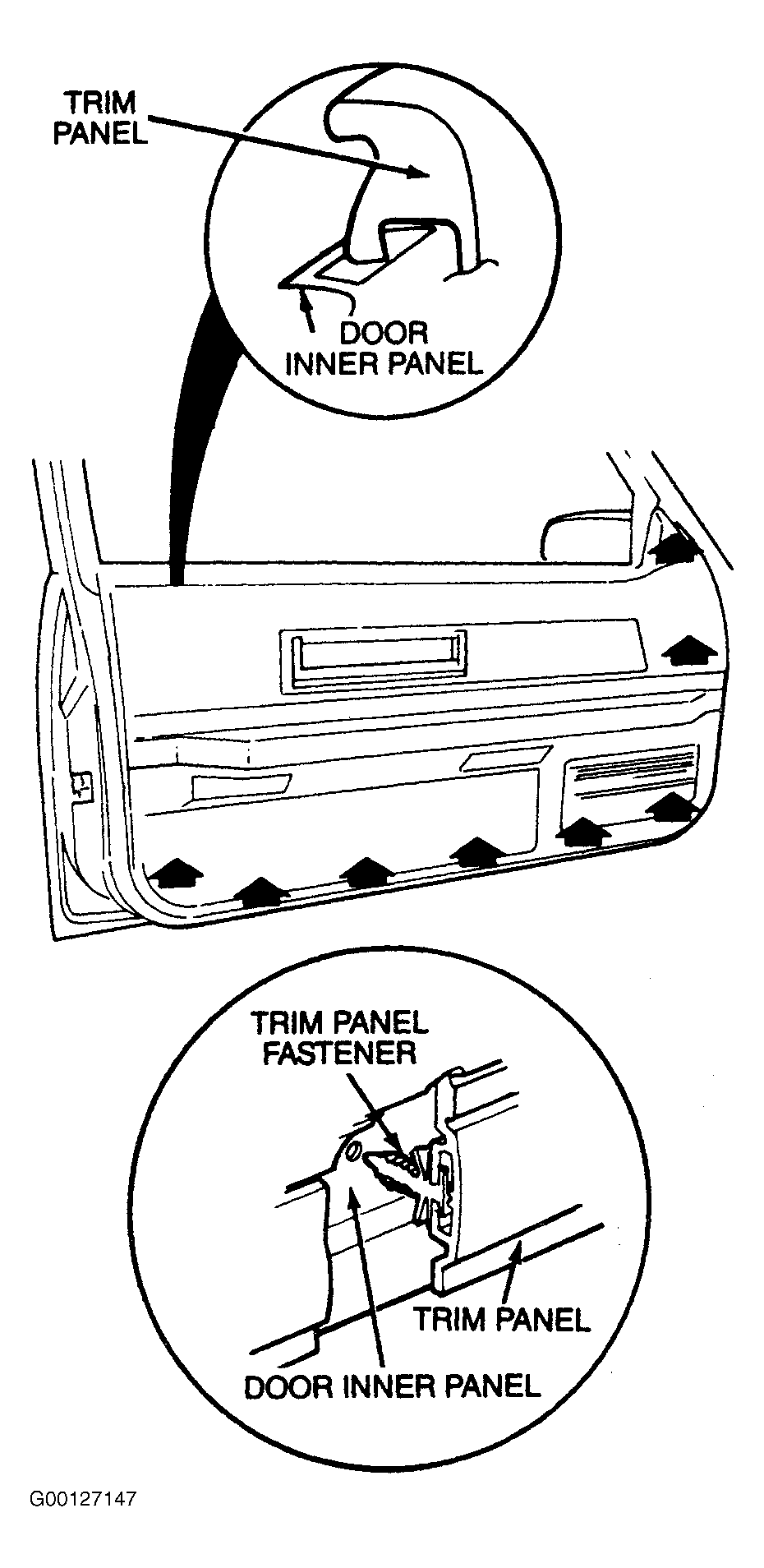

On all models, align fasteners with holes in door at locations shown and push in on trim panel. See Figure and Figure .

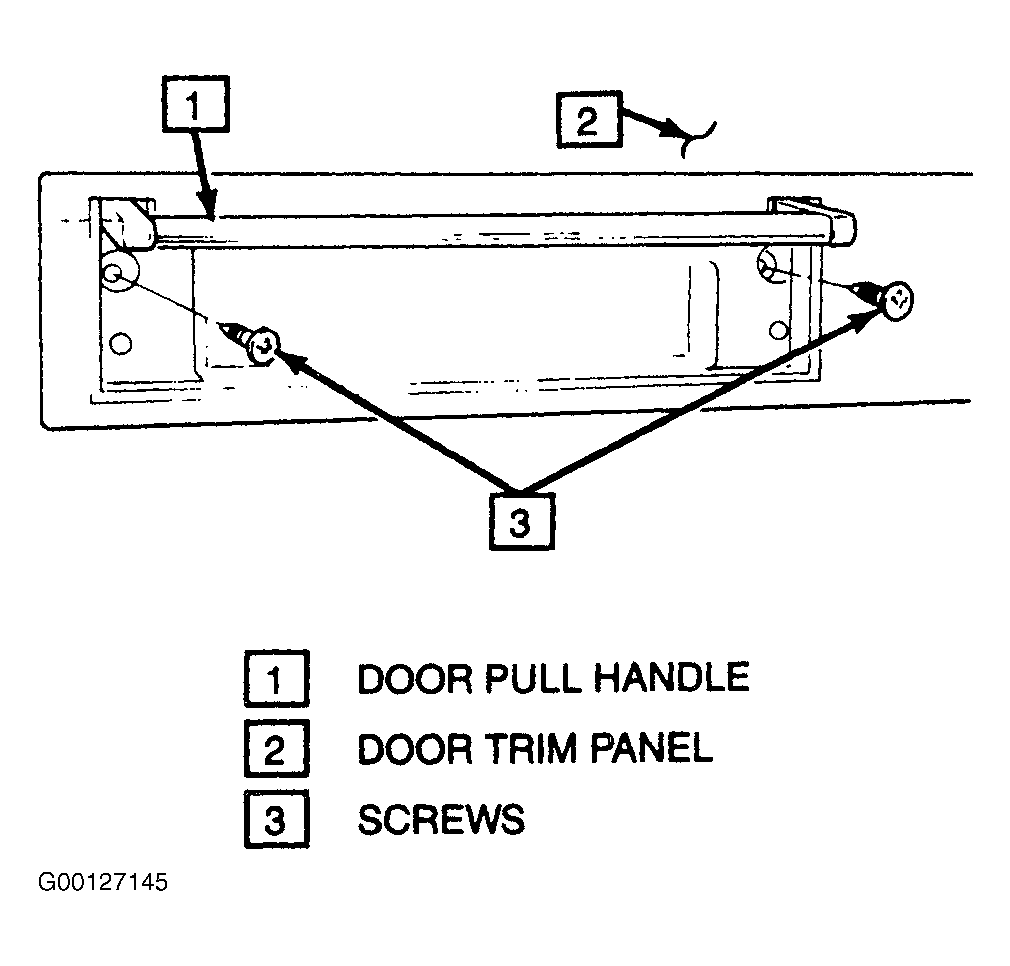

On Riviera models, install screws (3). See Figure .

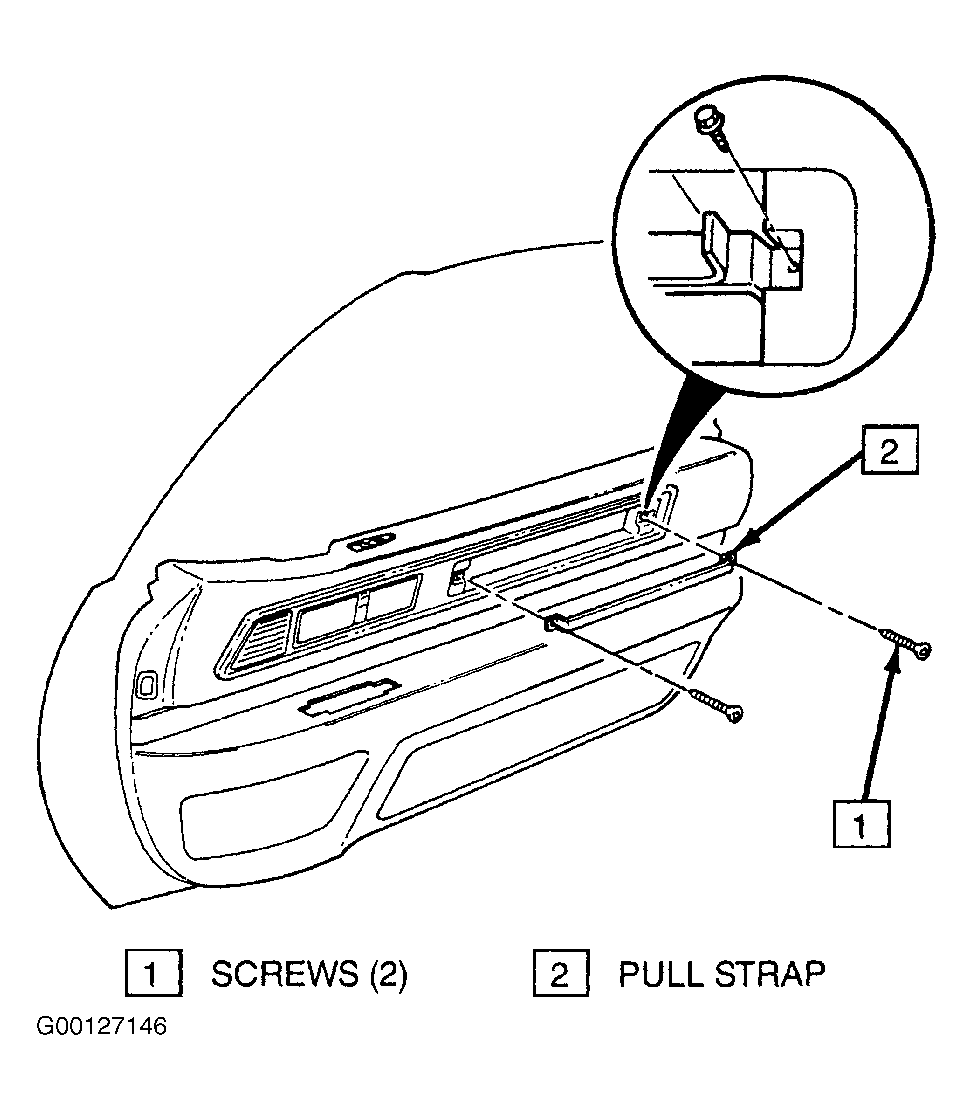

On Reatta models, insert pull strap (4). See Figure .
On all models, install power door lock switch. See SWITCH PLATE - POWER DOOR LOCKS .
Install power seat switch. See SWITCH PLATE - POWER SEATS .
Install negative battery cable.
