FixVault
Home
›
Buick
›
1991
›
Reatta 2D Convertible
›
Repair and Diagnosis
›
Body & Frame
›
Power Windows
›
Wiring Diagrams
Wiring Diagrams

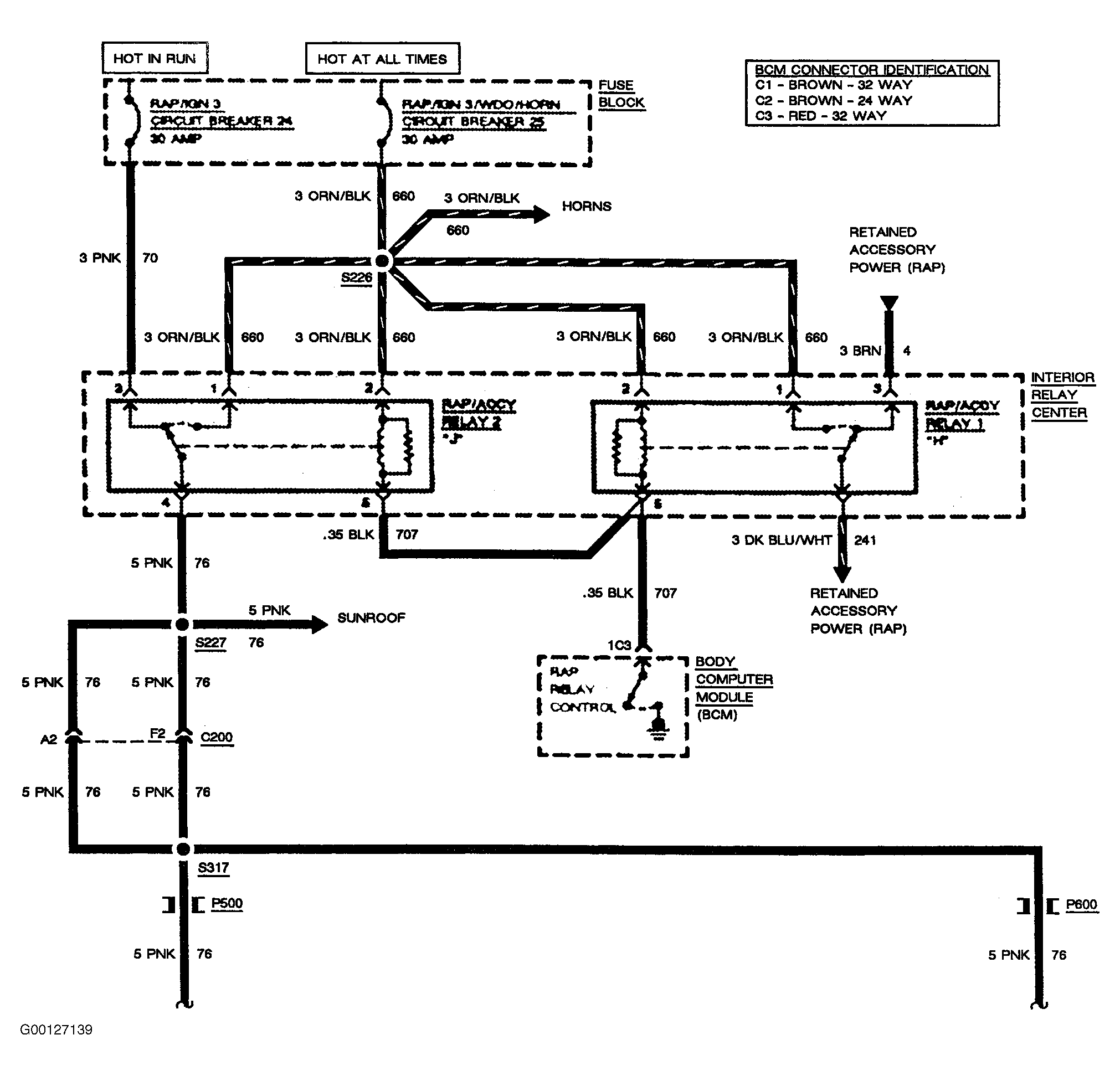

Fig 1: Power Windows System Wiring Diagram (Riviera/Reatta - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

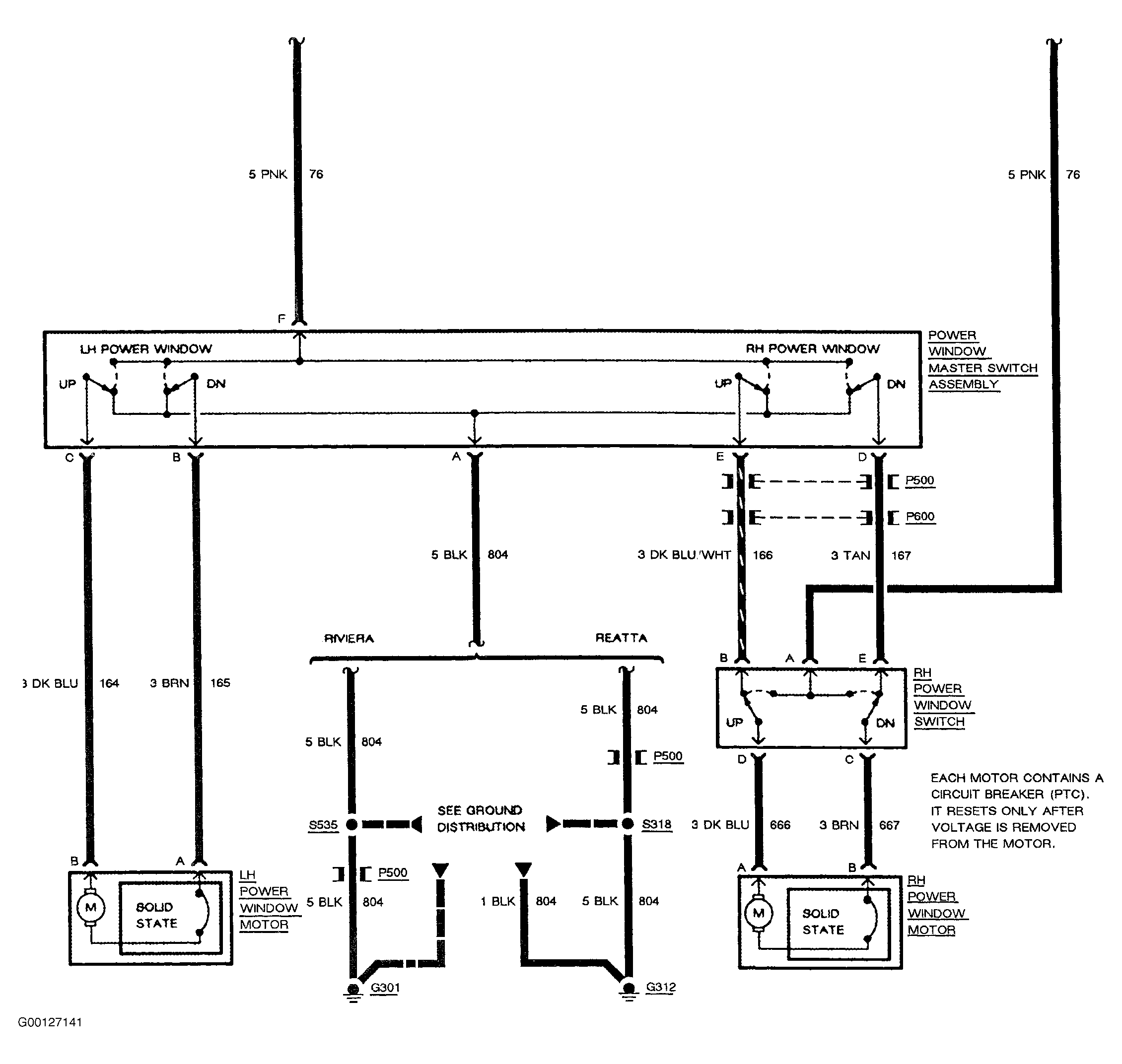

Fig 2: Power Windows System Wiring Diagram (Riviera/Reatta - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
