Trouble Code B410 - Charging System Circuit: Notes

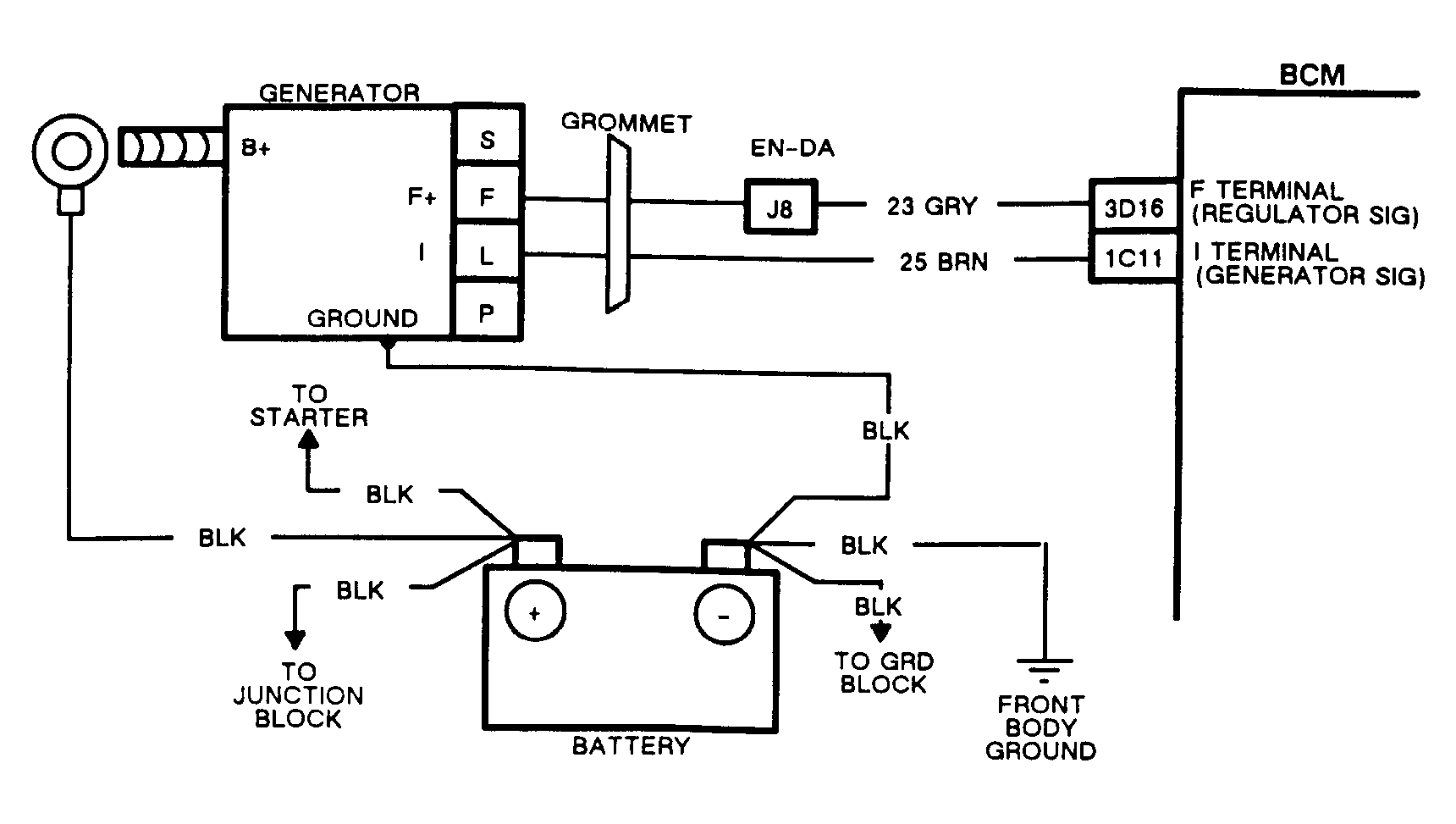

Fig 1: Trouble Code B410 Wiring Diagram (1 of 2)
G91E09007Courtesy of GENERAL MOTORS CORP.

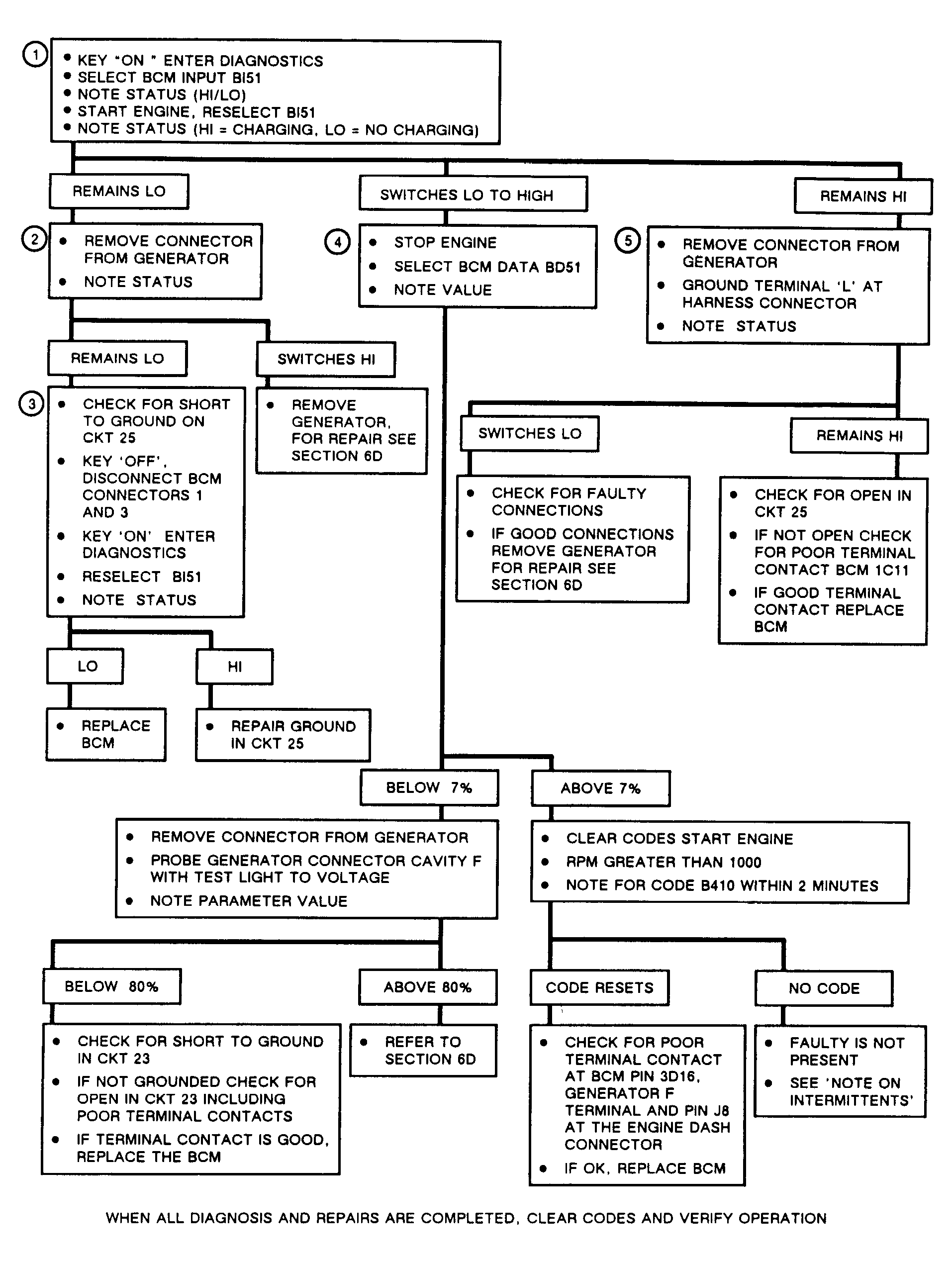

Fig 2: Trouble Code B410 Flow Chart (2 of 2)
G91H06604Courtesy of GENERAL MOTORS CORP.
