Wiring Diagrams

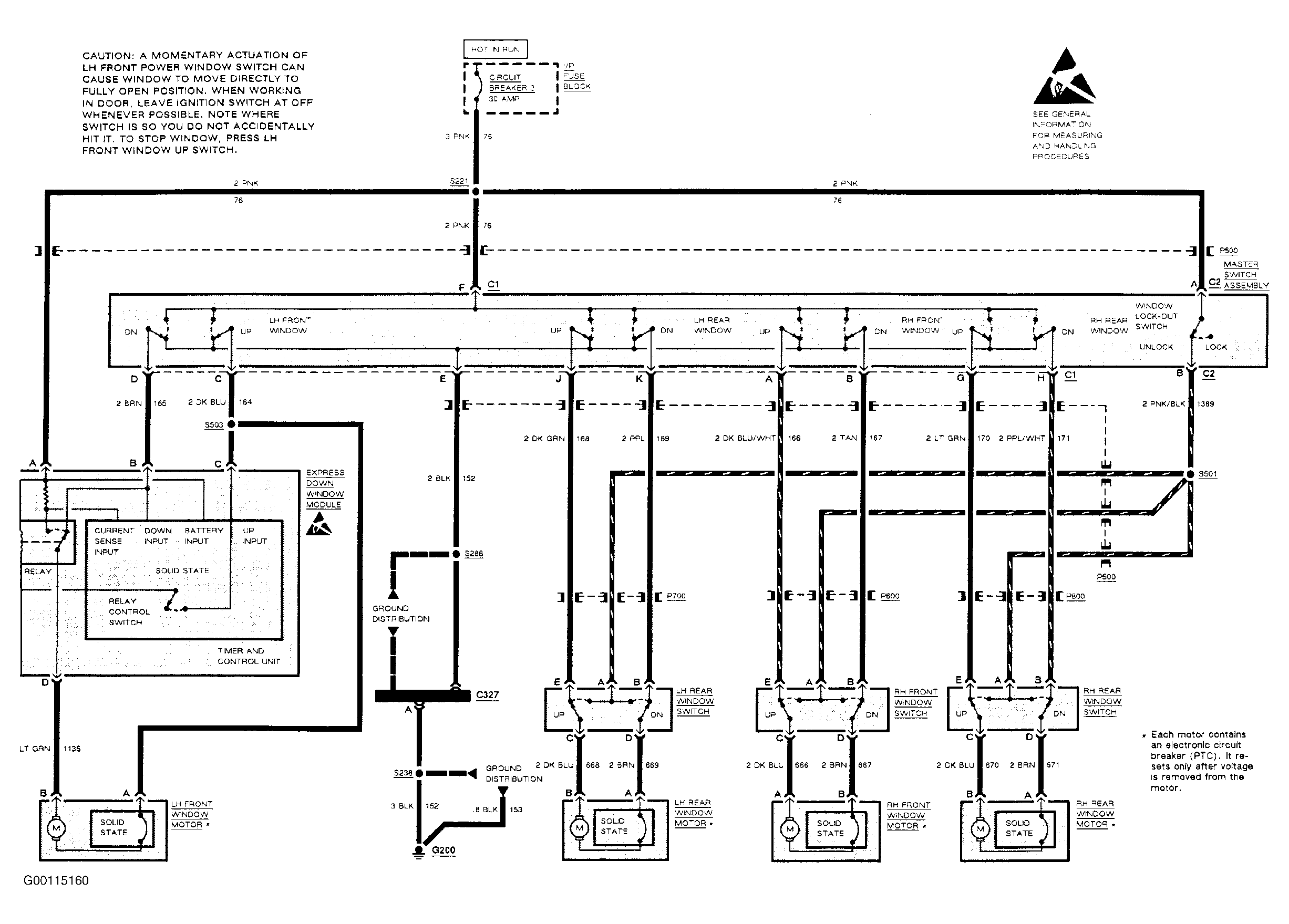

Fig 1: Power Window Wiring Diagram (LeSabre)
G00115160Courtesy of GENERAL MOTORS CORP.
