Code 67, Cruise Engage Switches: Notes

Code 67 will set if circuit No. 397 or 86 is open, set/coast or resume/accel switch is closed for an extended amount of time or any cruise engage switch circuit is shorted to voltage.

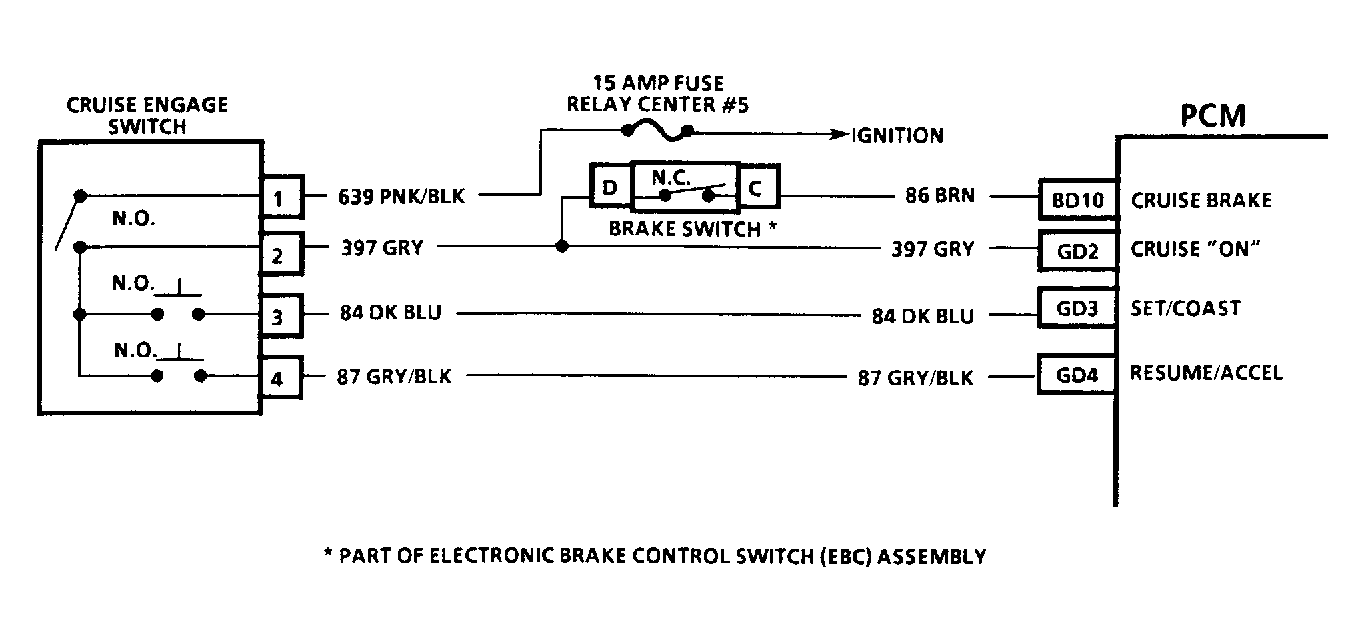

Fig 1: Code 67, Schematic, Cruise Engage Switches
G92I04629
