Test A: Window Switch Continuity Test

For testing procedure, see Fig 1 .

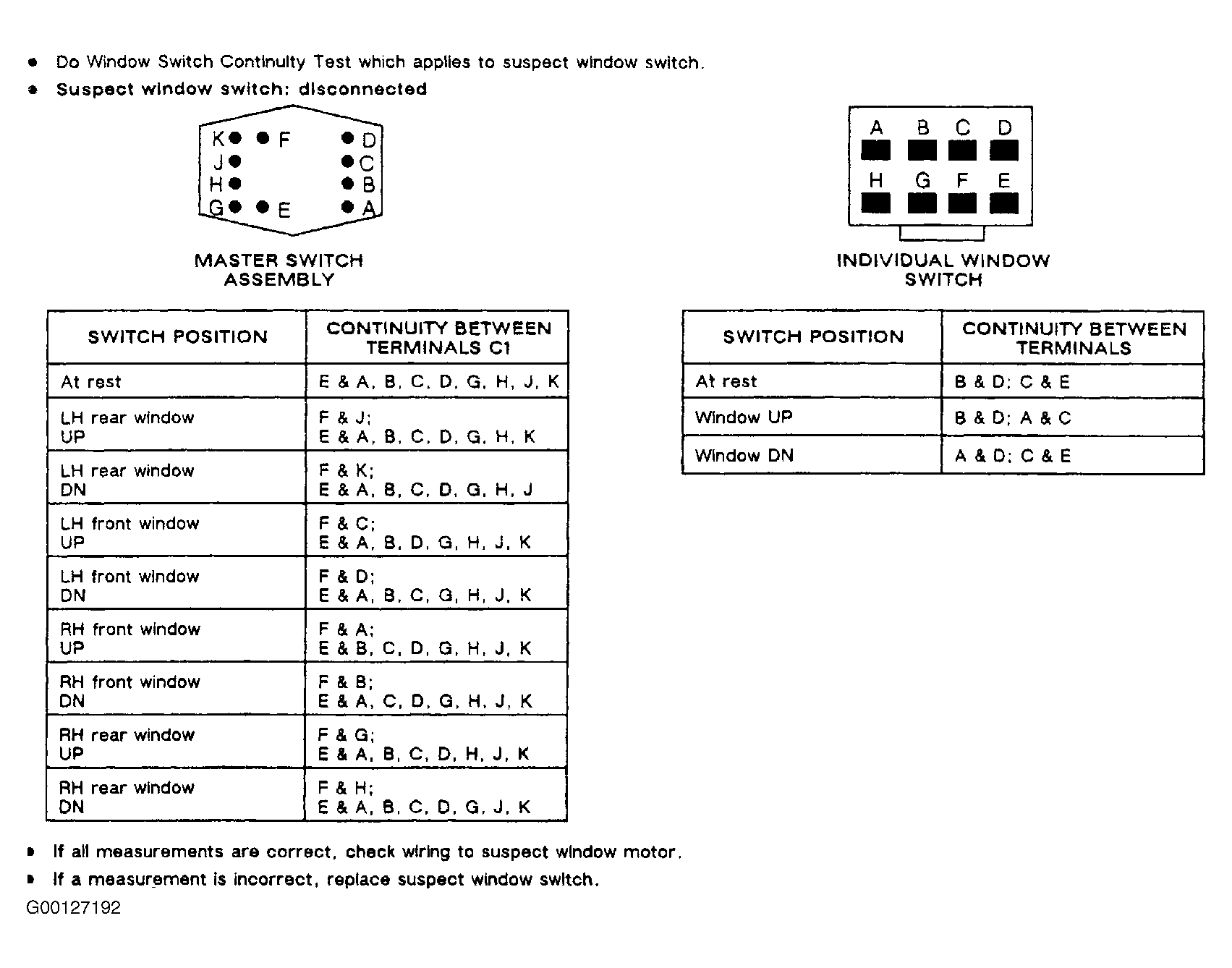

Fig 1: Test A: Window Switch Continuity Test
G00127192Courtesy of GENERAL MOTORS CORP.
