Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

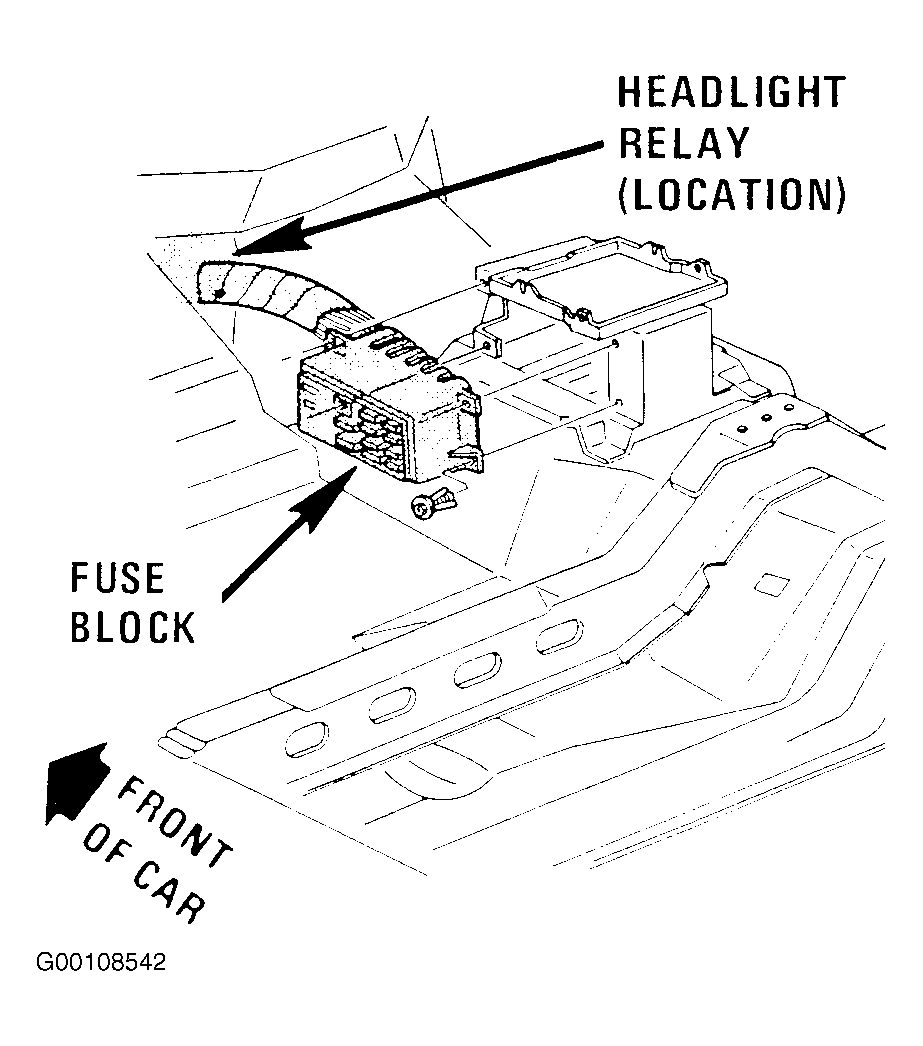

| Fuse Block | Left Front Of Console. See Fig 1 . |
| Left Power Seat Capacitor | Under Left Front Seat, In Seat Feed Connector C304 |
| Lumbar Compressor Capacitors | Below Respective Front Seats, At Lumbar Support Compressor |
| Lumbar Compressors | Under Respective Front Seats |
| Power Seat Recliner Capacitors | Below Respective Front Seats, In Power Seat Recliner Motor Connector |
| Power Seat Recliner Motors | Below Respective Front Seats |

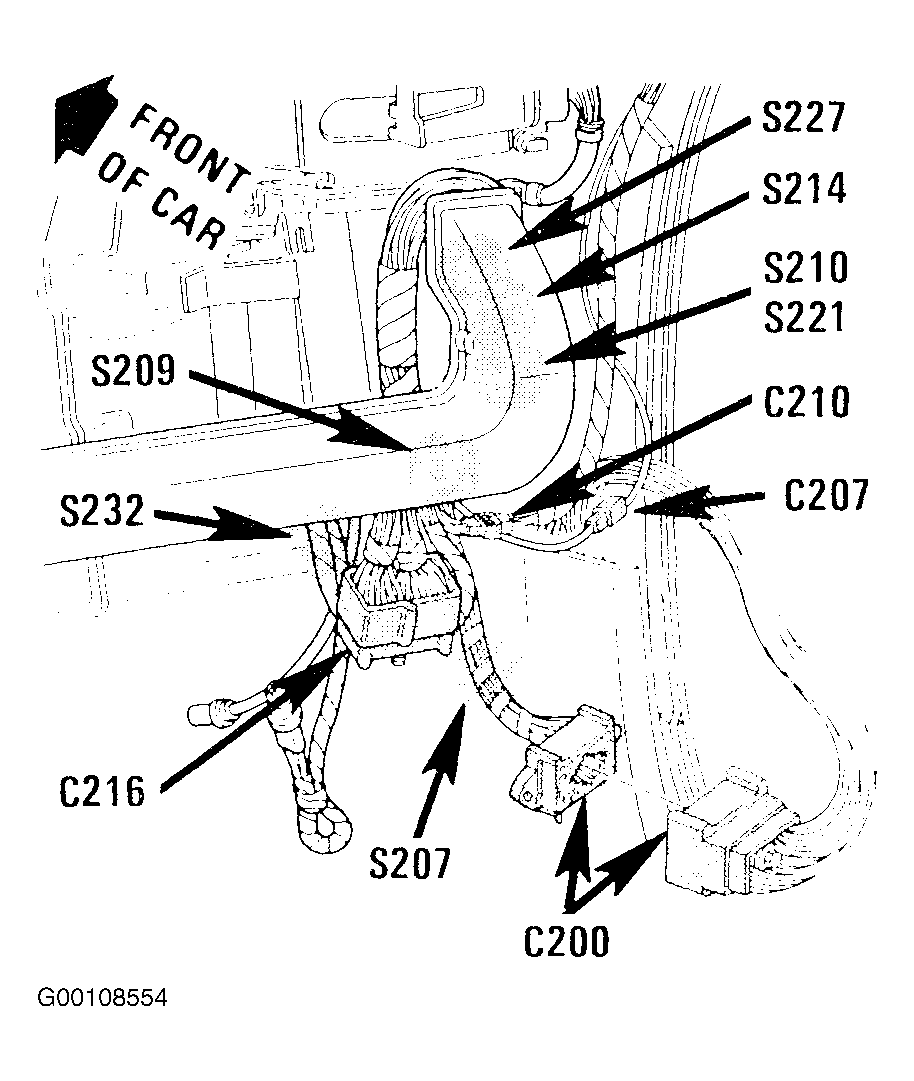

| C200 (56 Cavities) | Behind Right Side Of Instrument Panel, Near Shroud. See Fig 2 . |

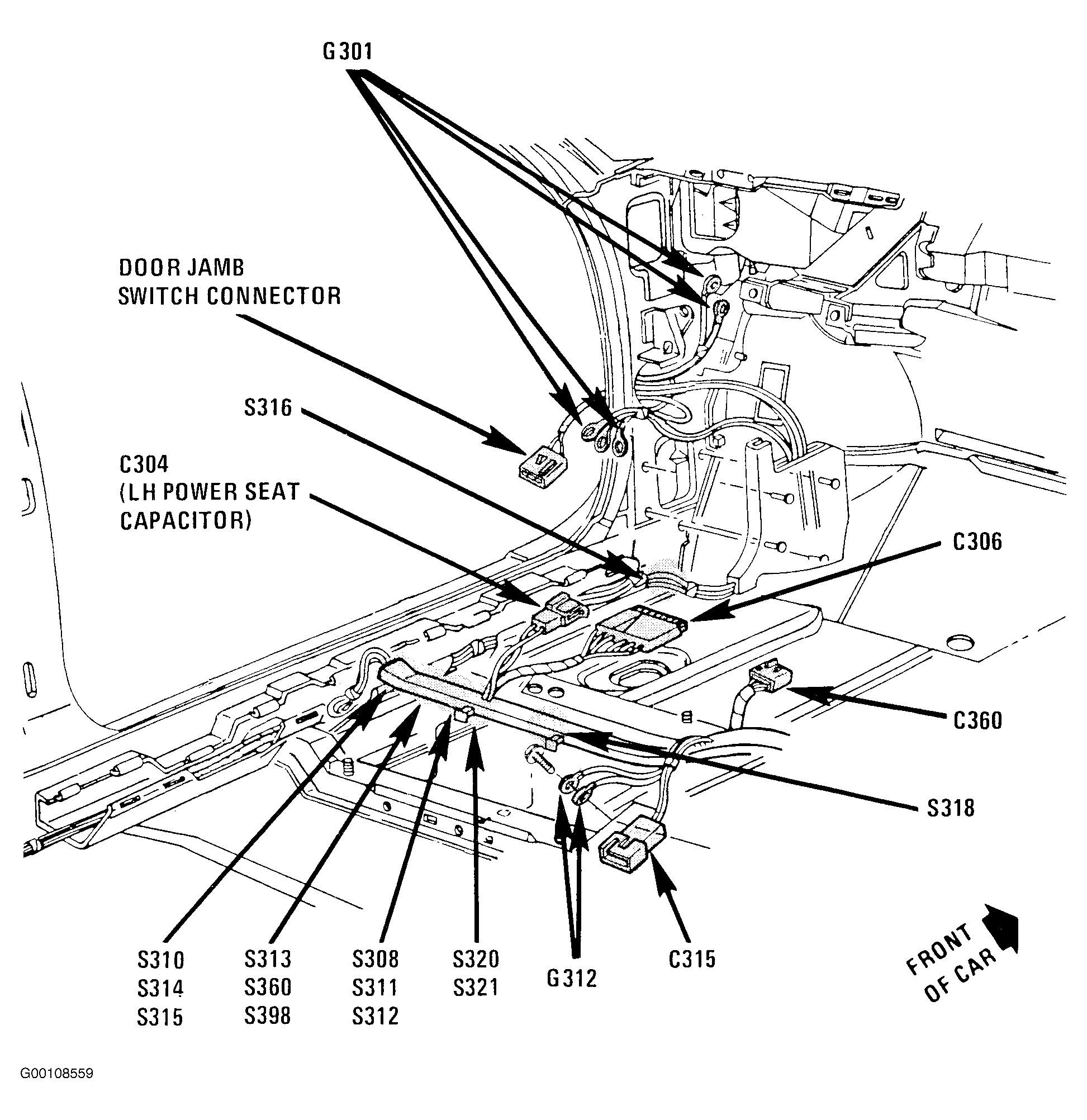

| C304 (2 Cavities) | Below Left Front Seat. See Fig 3 . |
| C305 (2 Cavities) | Below Right Front Seat |
| C306 (6 Cavities) | Below Left Front Seat. See Fig 3 . |

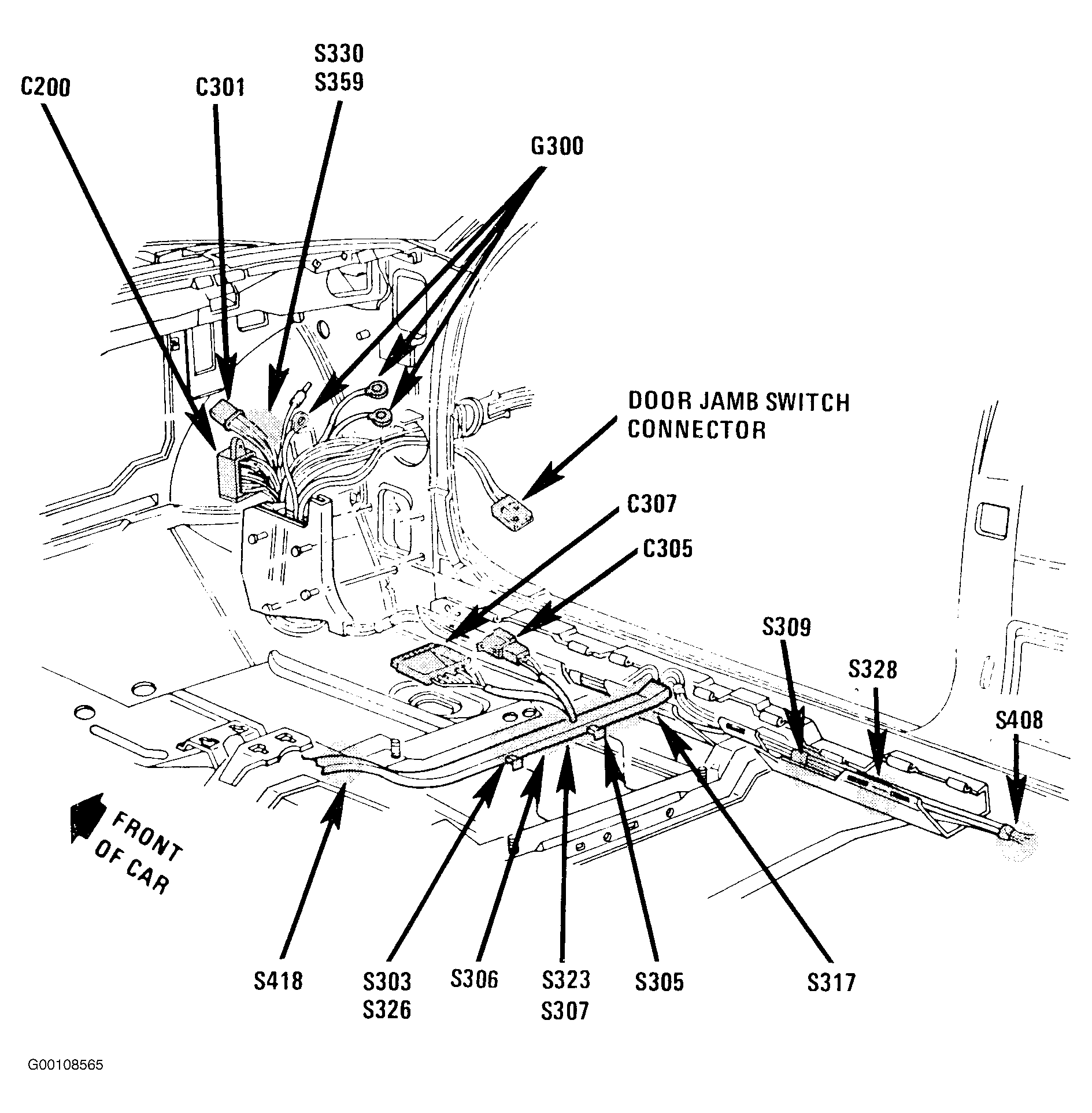

| C307 (6 Cavities) | Below Right Front Seat. See Fig 4 . |
| C347 (2 Cavities) | Below Front Of Right Front Seat |
| C348 (2 Cavities) | In Left Front Seat, Below Seat Lumbar Switch |
| C349 (2 Cavities) | In Right Front Seat, Below Seat Lumbar Switch |
| C355 (2 Cavities) | Under Right Front Seat |

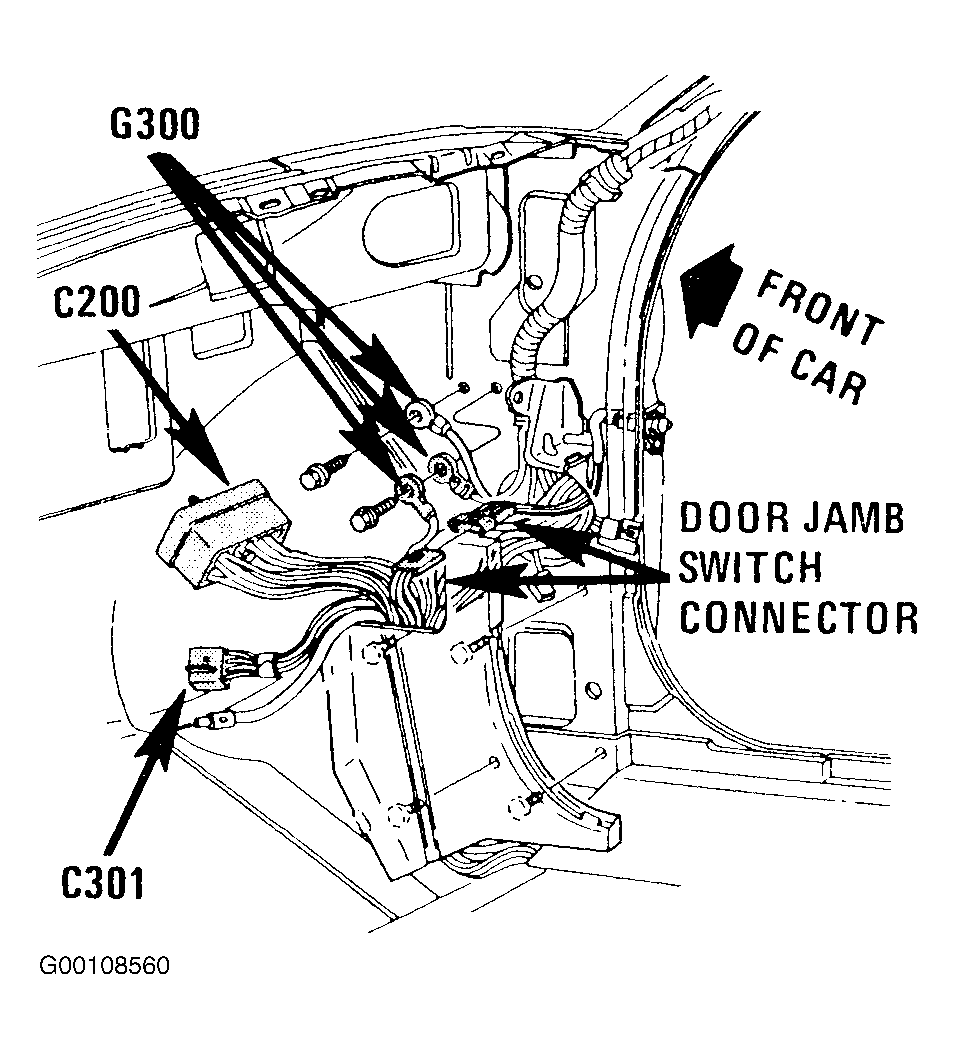

| G300 | Top Of Right Shroud. See Fig 5 . |

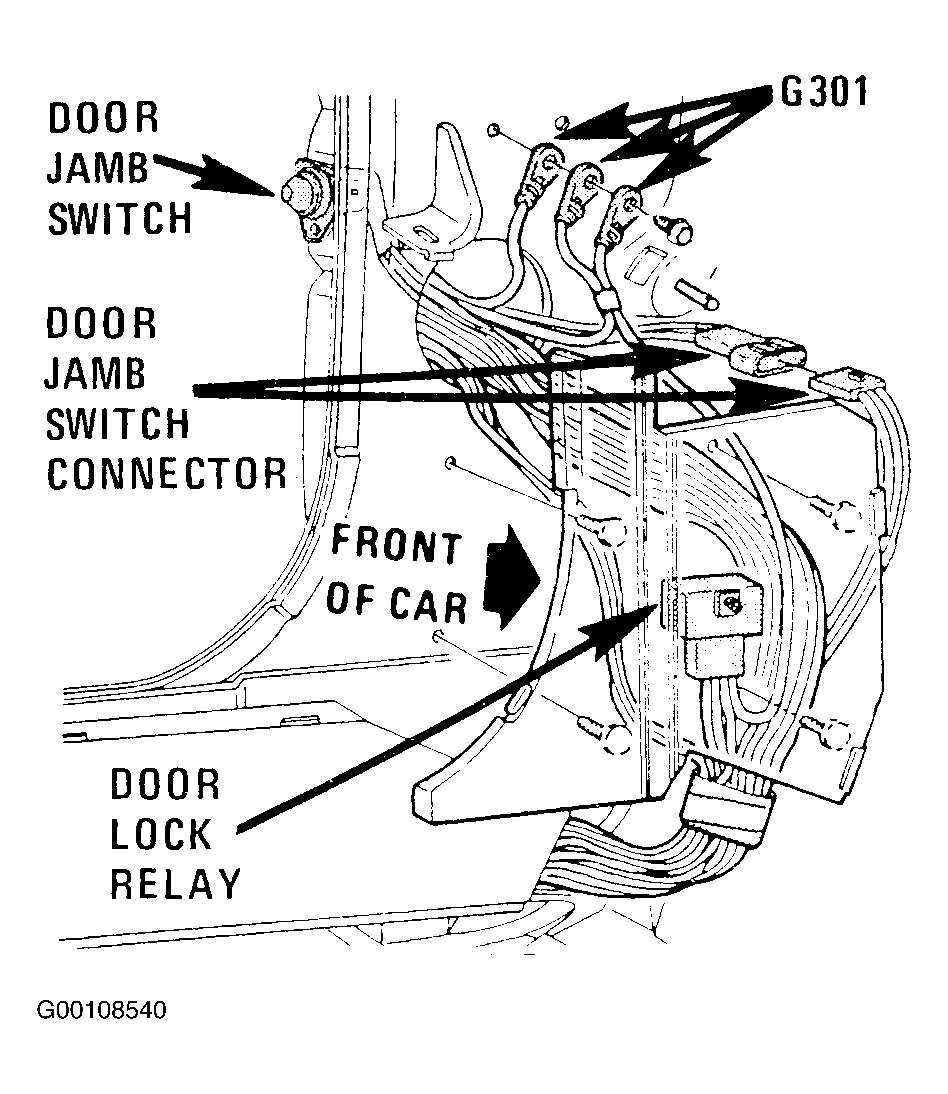

| G301 | Top Of Left Shroud. See Fig 6 . |
| G312 | Center Of Passenger Compartment, Between Front Seats. See Fig 7 . |
| P500 | Front Of Left Door |
| P600 | Front Of Right Door |
| S207 | Dash Harness, Behind Right Side Of Instrument Panel, In C200 Breakout. See Fig 2 . |
| S316 | Main Body Harness, Bottom Of Left Door Sill. See Fig 3 . |
| S318 | Main Body Harness, Below Left Front Seat. See Fig 3 . |
| S327 | Hoover Seats Harness, Under Left Front Seat |
| S329 | Hoover Seats Harness, Under Right Front Seat |
| S348 | Lumbar & Recliner Harness, Below Left Front Seat |
| S349 | Lumbar & Recliner Harness, Below Right Front Seat |
| S535 | Main Body Harness, In Front Portion Of Left Door |
