Component Locations

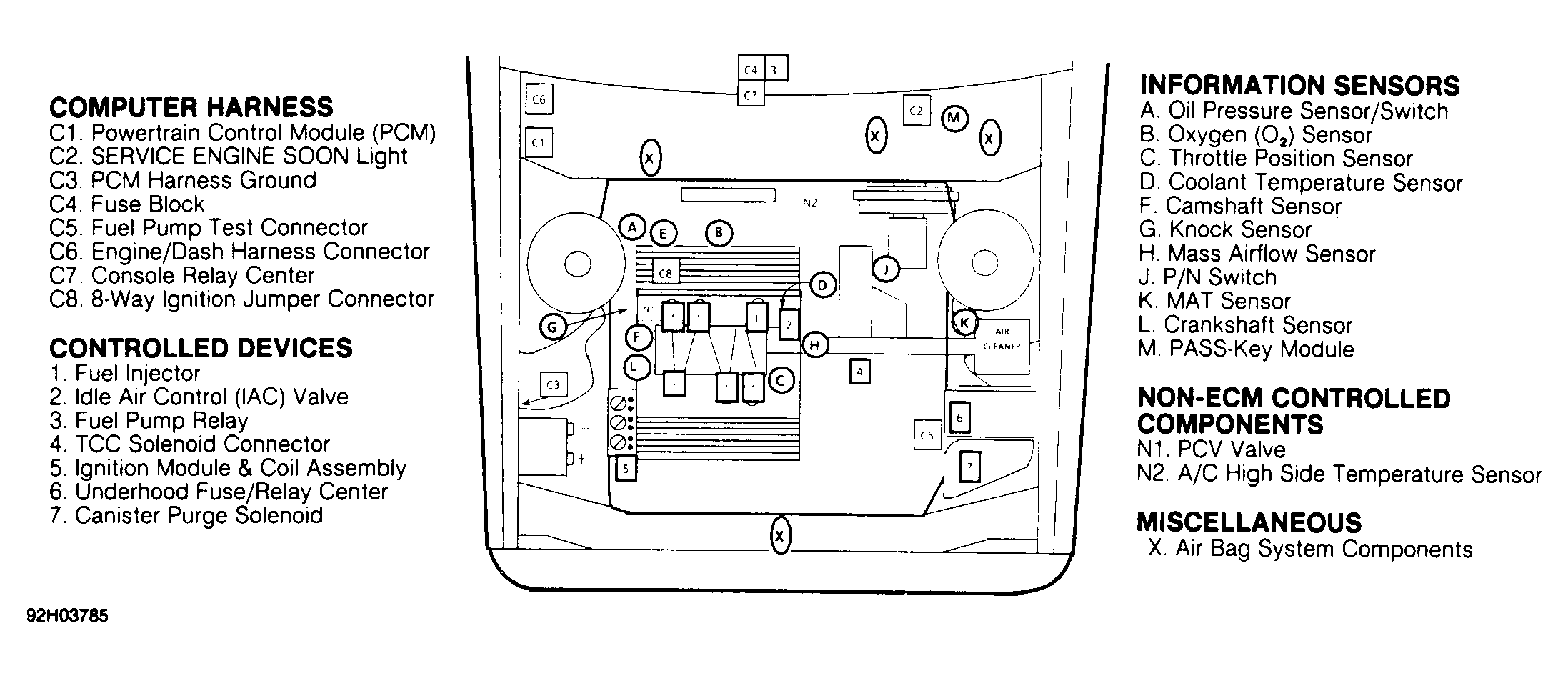

Fig 1: Component Locations, 3.8L VIN L - Riviera
G92H03785Courtesy of GENERAL MOTORS CORP.

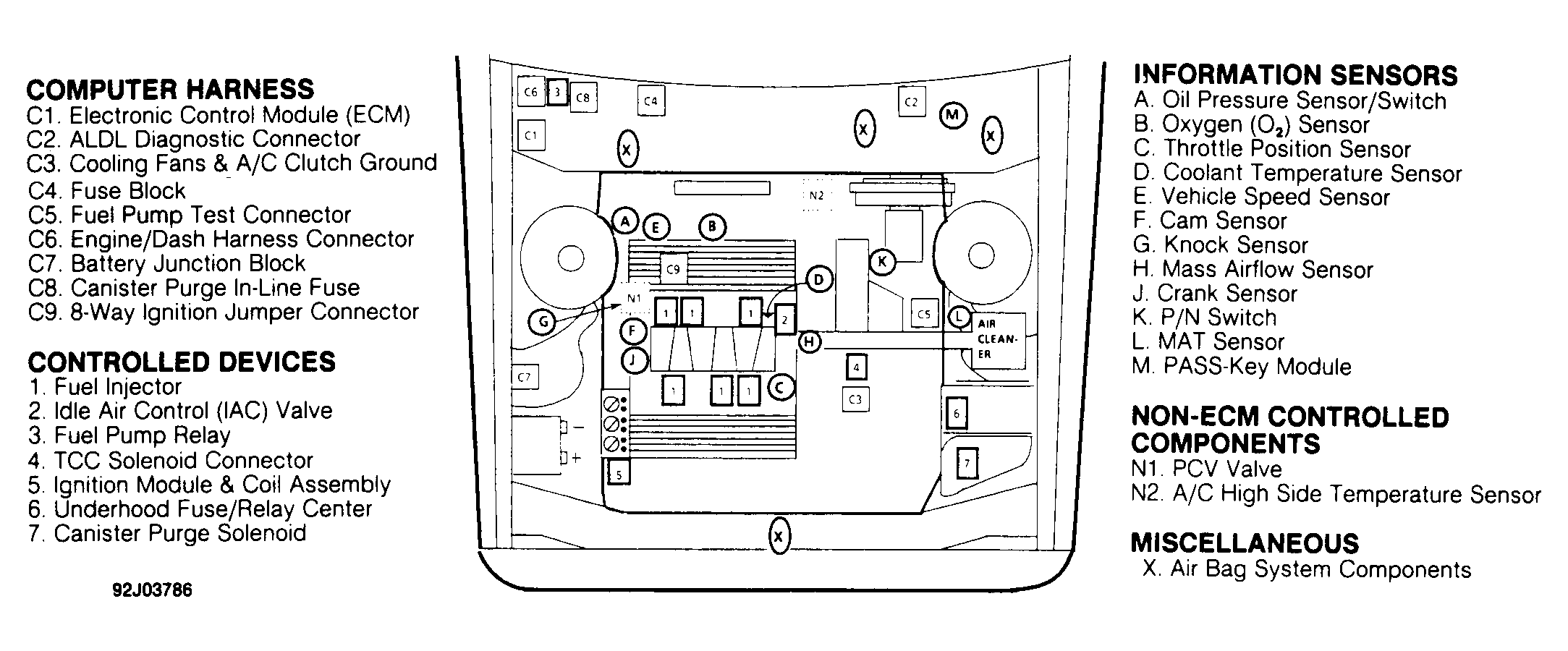

Fig 2: Component Locations, 3.8L VIN L - Toronado & Trofeo
G92J03786Courtesy of GENERAL MOTORS CORP.

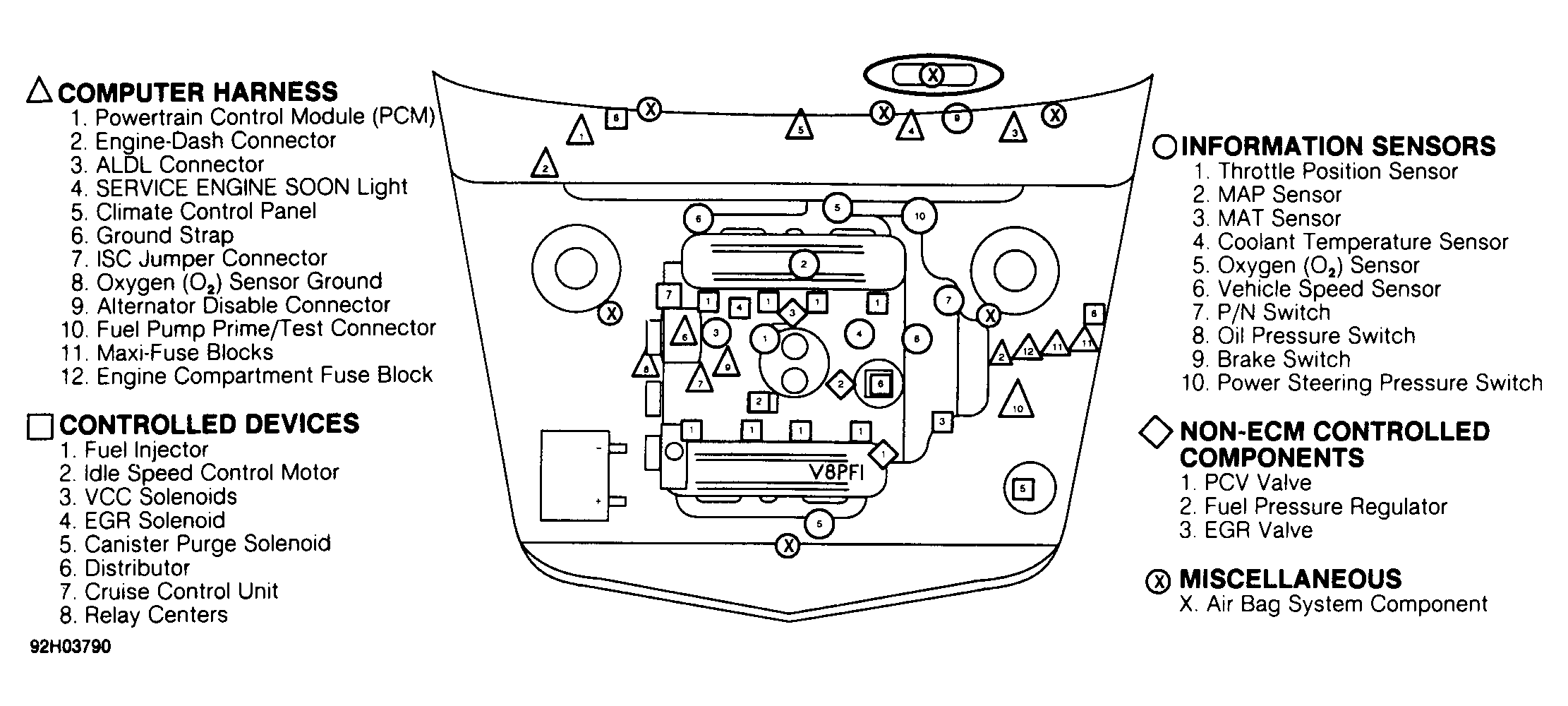

Fig 3: Component Locations, 4.9L VIN B - Eldorado
G92H03790Courtesy of GENERAL MOTORS CORP.
