Chart 2: Power Windows Inoperative From Master Power Window Switch With Normal Operation From Individual Power Window Switches

For testing procedure, see Fig 1 .

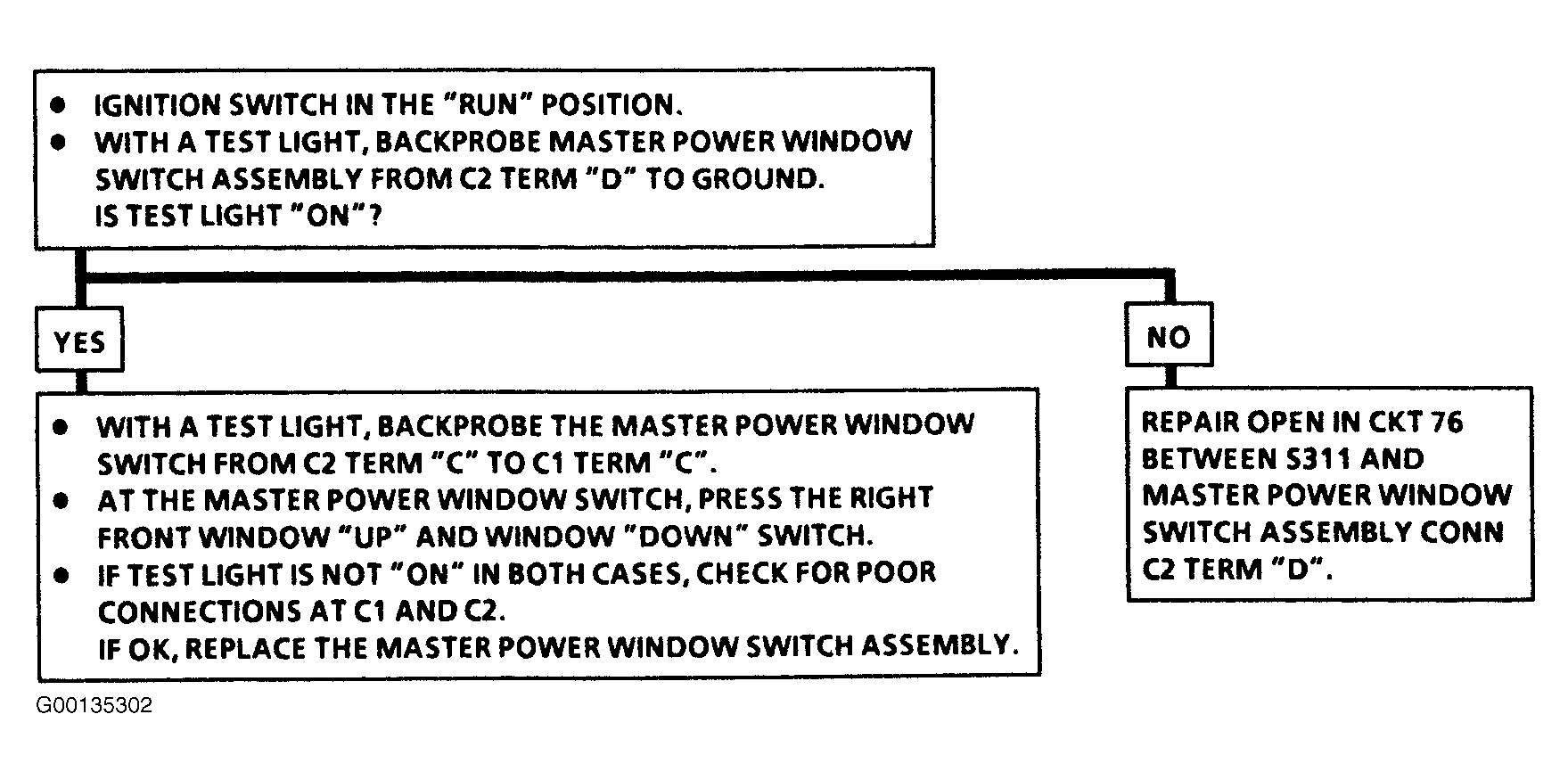

Fig 1: Chart 2: Power Windows Inoperative From Master Power Window Switch With Normal Operation From Individual Power Window Switches
G00135302Courtesy of GENERAL MOTORS CORP.
