Wiring Diagrams

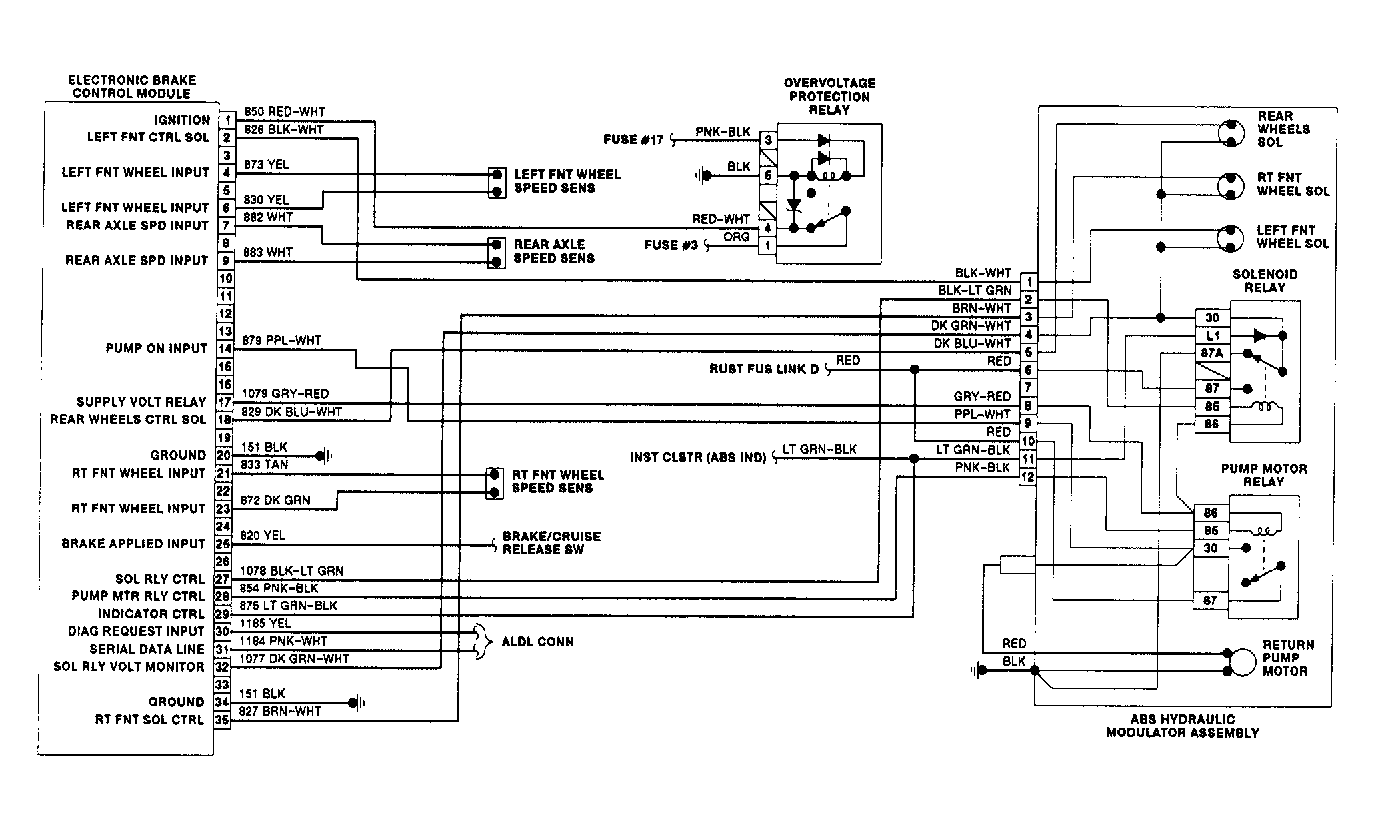

Fig 1: ABS Wiring Diagram (1991 General Motors B-Body Cars)

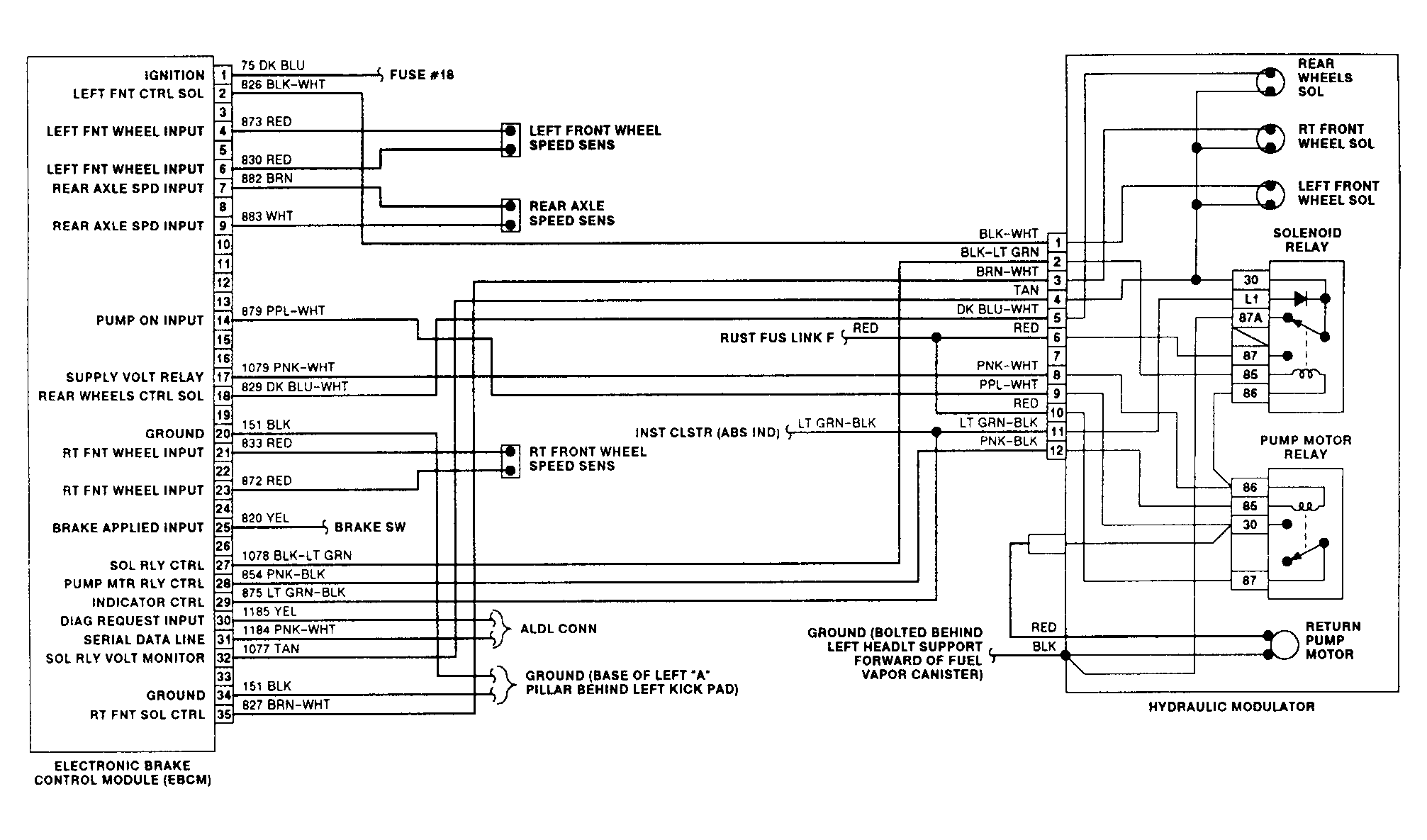

Fig 2: ABS Wiring Diagram (1992 General Motors B-Body Cars)
