Auxiliary Valve Body: Disassembly
- Auxiliary valve cover is under spring tension. Carefully remove cover retaining bolts. Remove cover and spring. Remove piston and "O" ring. See Fig 1 . Press low-overrun clutch valve downward.
- Remove pin, spring and low-overrun valve. Remove pin, abuse valve stop, spring and abuse valve. DO NOT remove orifice plug unless it is damaged.

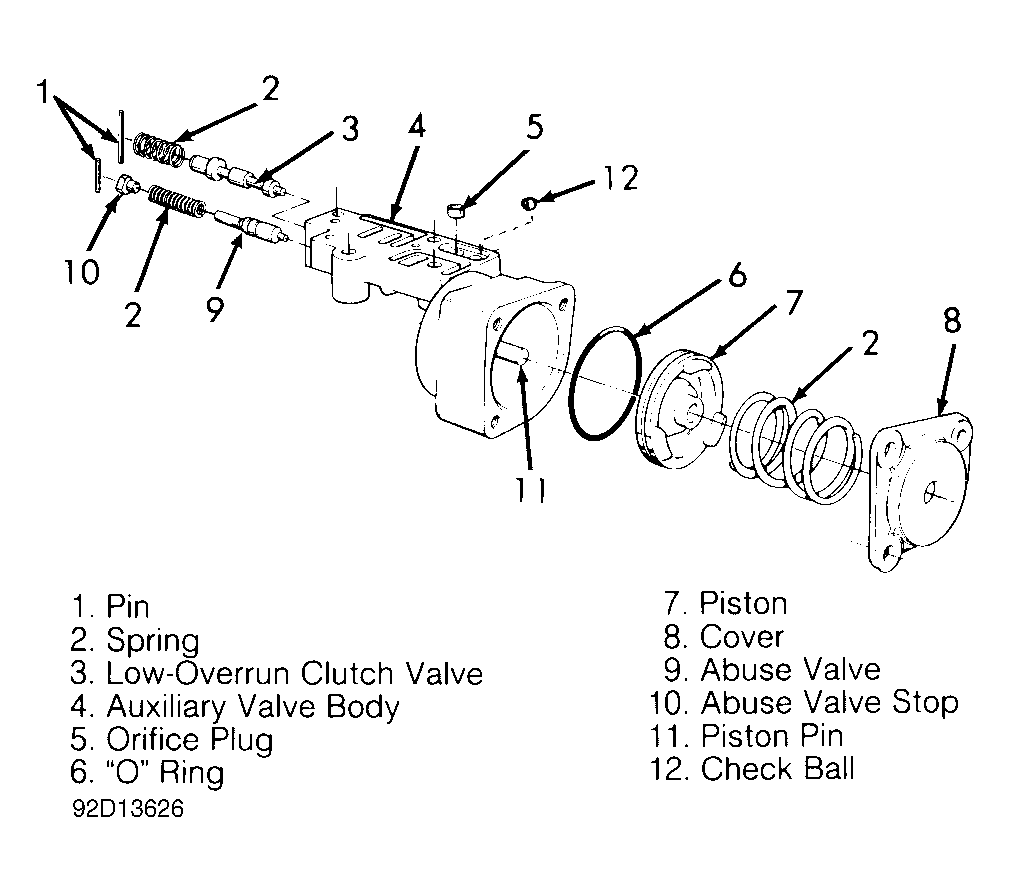

LEGEND FOR FIGURE 43
| Item No. | Description |
|---|---|
| 1 | Pin |
| 2 | Spring |
| 3 | Low-Overrun Clutch Valve |
| 4 | Auxiliary Valve Body |
| 5 | Orifice Plug |
| 6 | "O" Ring |
| 7 | Piston |
| 8 | Cover |
| 9 | Abuse Valve |
| 10 | Abuse Valve Stop |
| 11 | Piston Pin |
| 12 | Check Ball |
