Wiring Diagrams

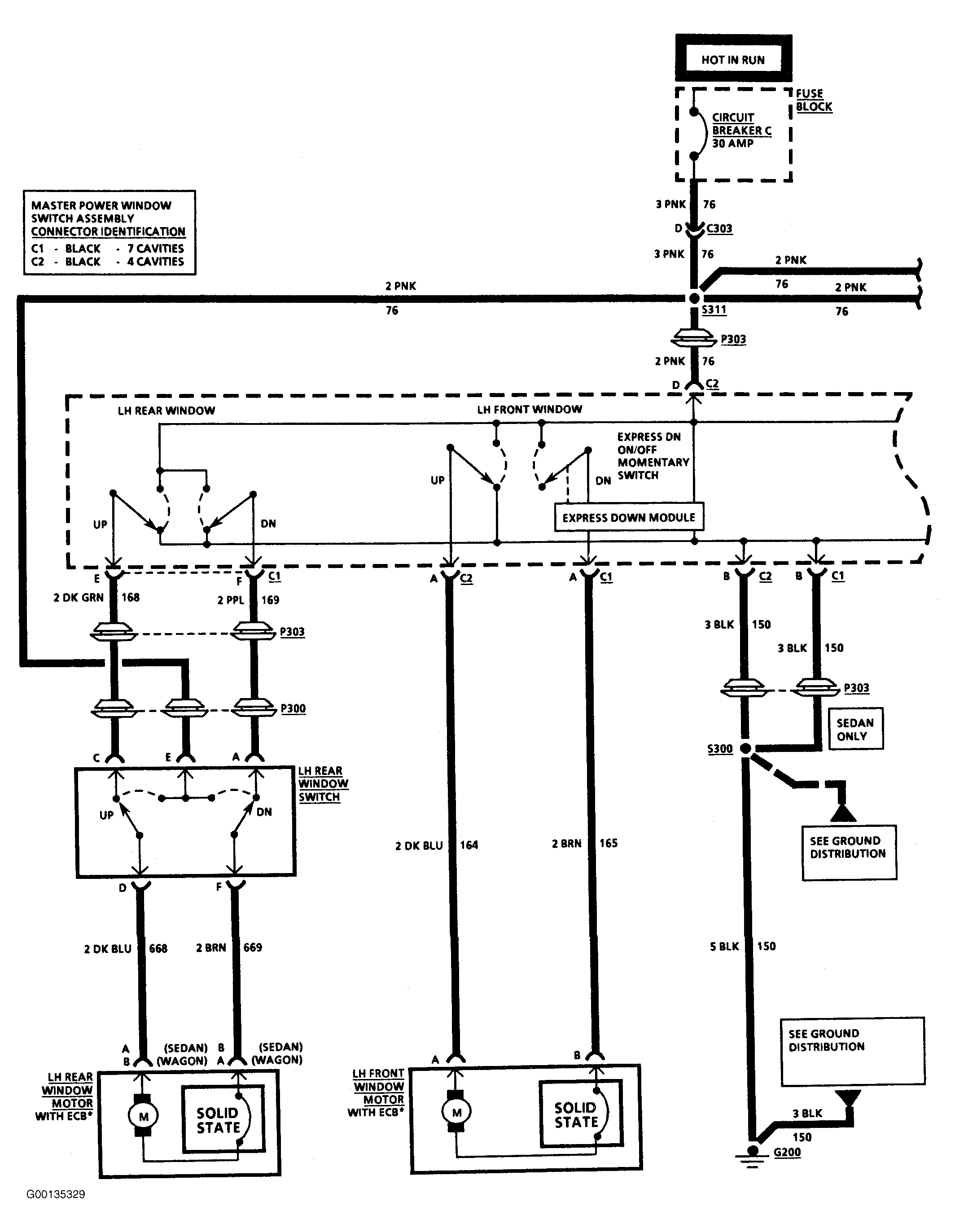

Fig 1: Power Window System Wiring Diagram (Roadmaster) (1 Of 2)
G00135329Courtesy of GENERAL MOTORS CORP.

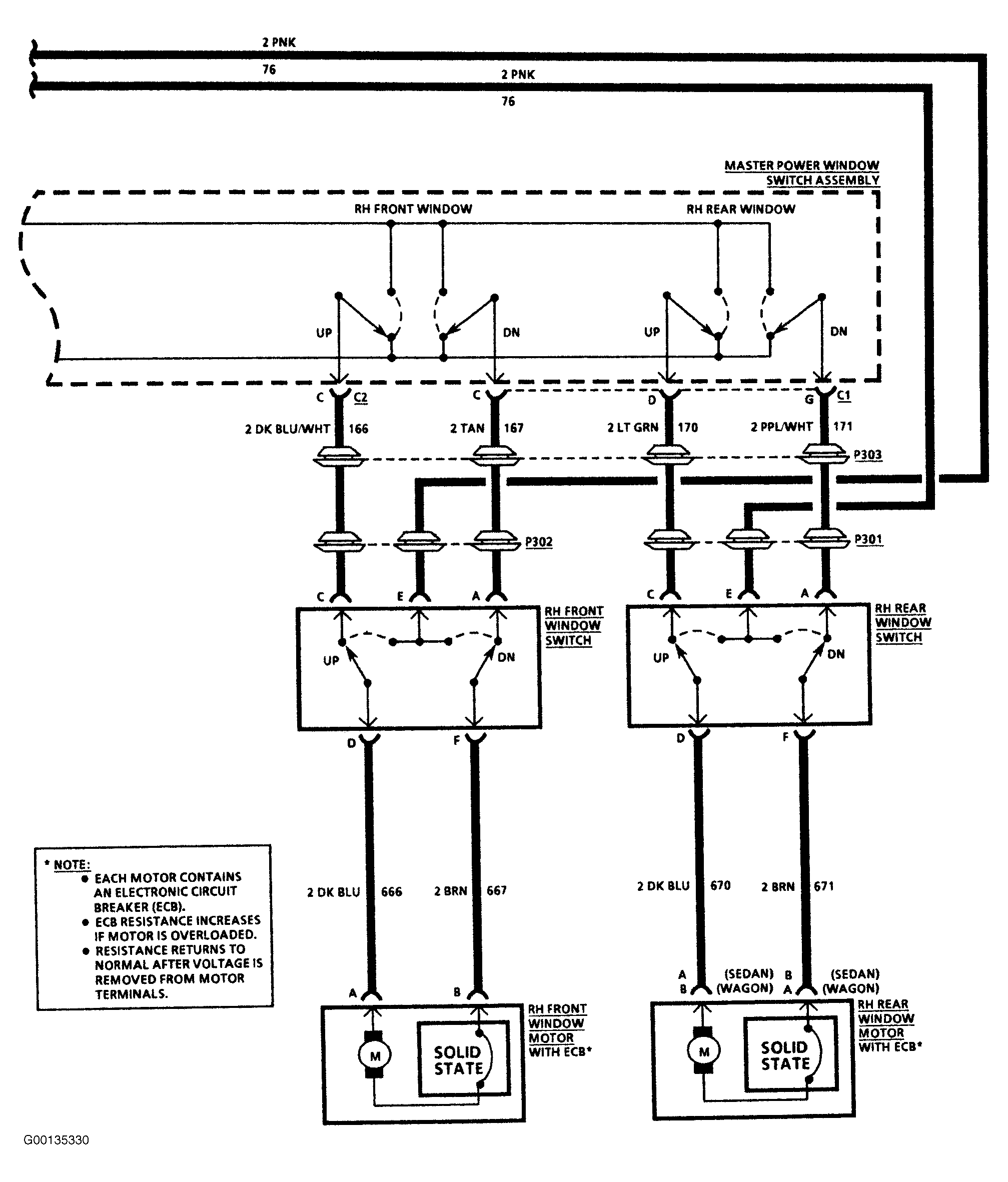

Fig 2: Power Window System Wiring Diagram (Roadmaster) (2 Of 2)
G00135330Courtesy of GENERAL MOTORS CORP.
