Component Locations

Component	Location

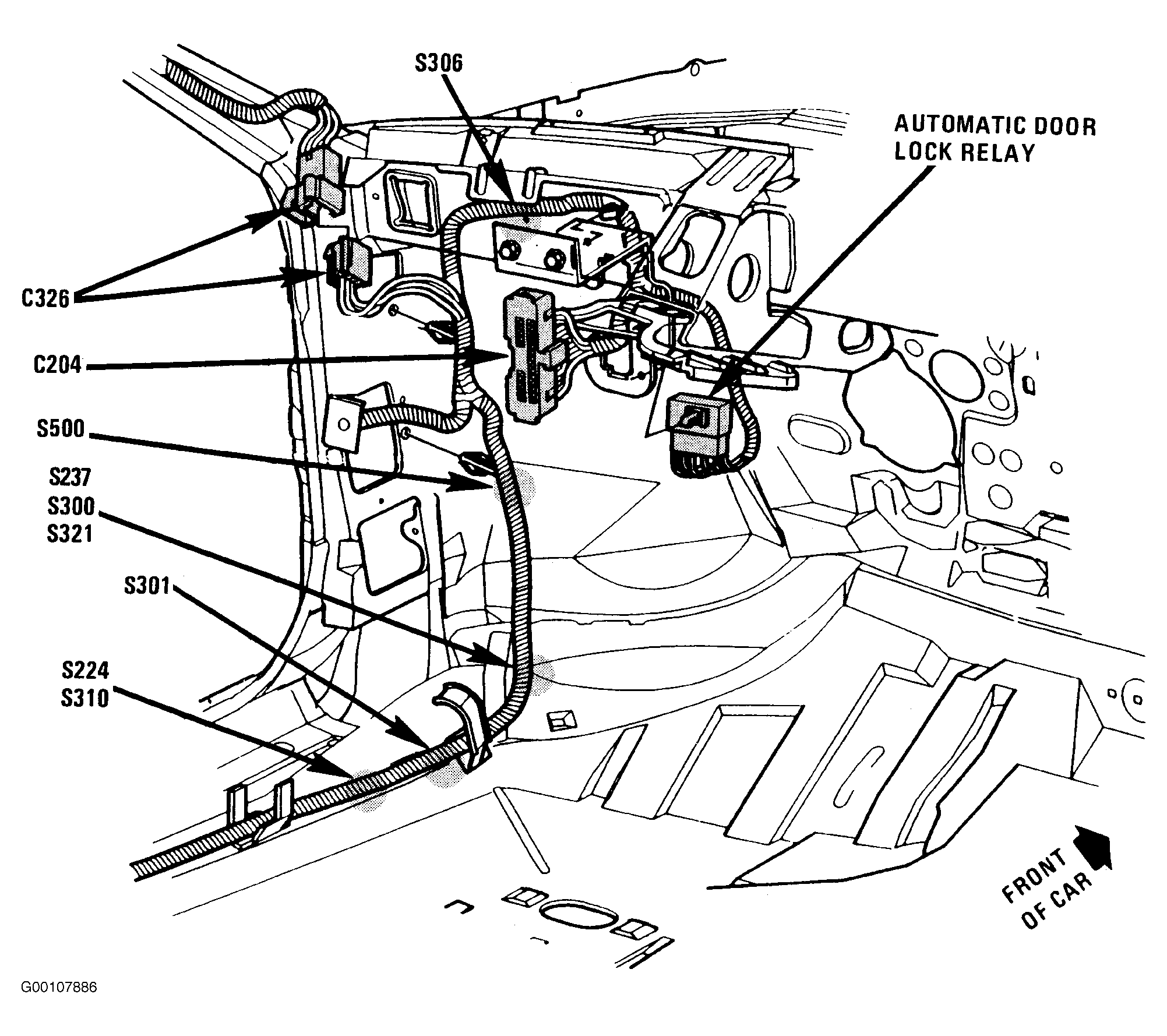

Automatic Door Lock Relay	Behind Left Side Of Instrument Panel, At Steering Column. See Fig 1

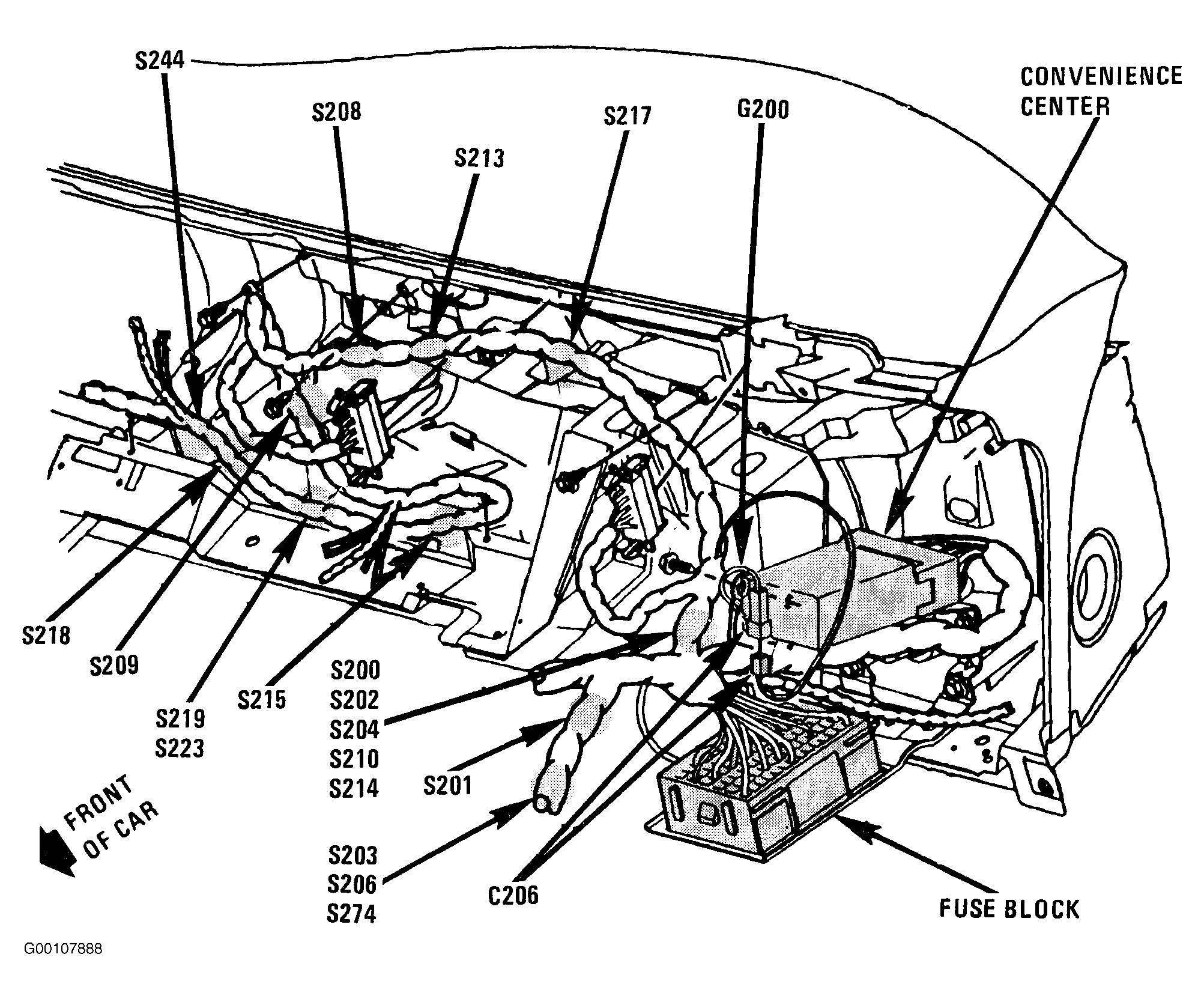

Fuse Block	Behind Left Side Of Instrument Panel. See Fig 2

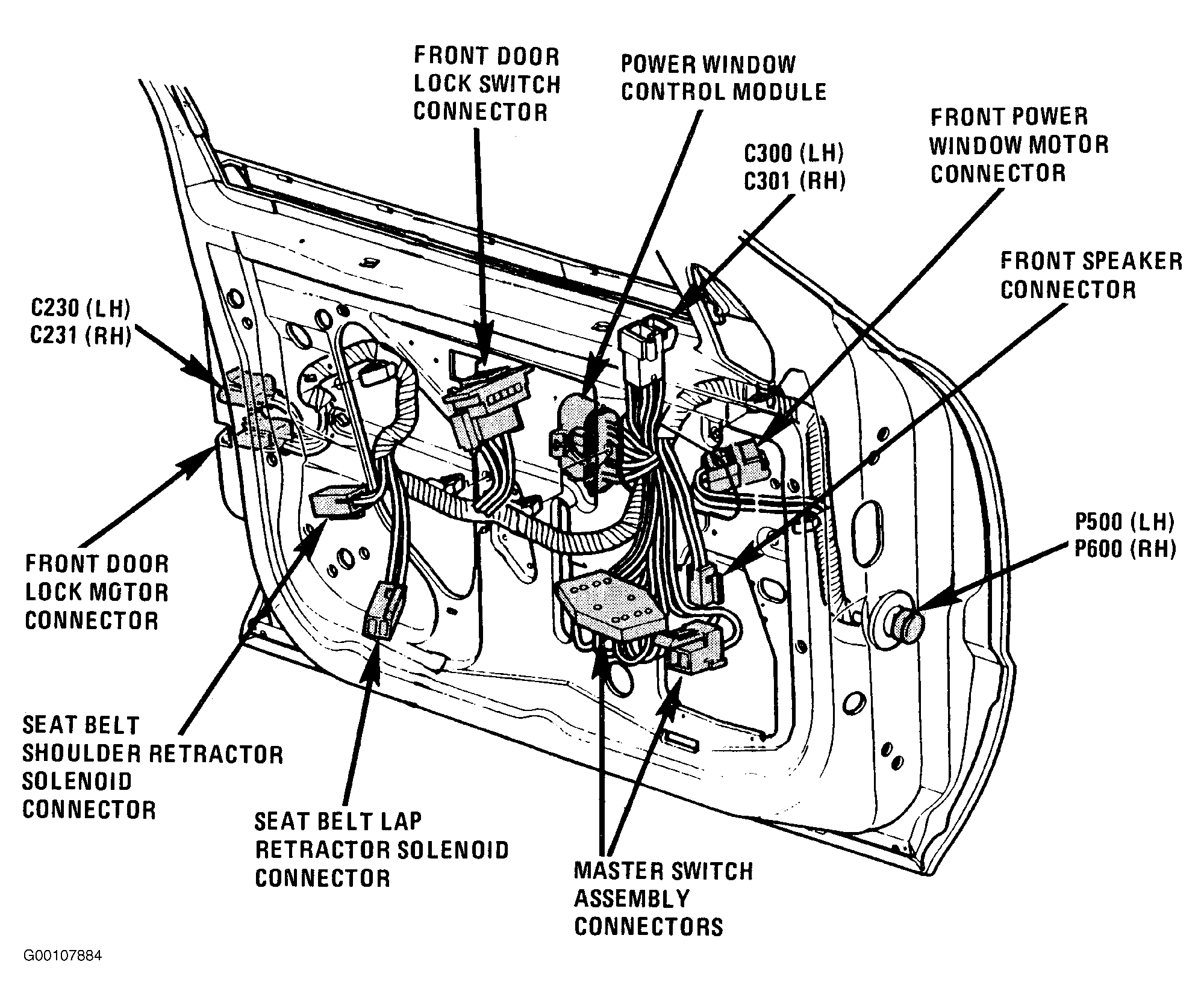

Left Front Door Lock Motor	In Rear Of Left Front Door. See Fig 3
Left Rear Door Lock Motor	In upper rear of left rear door. See Fig 4

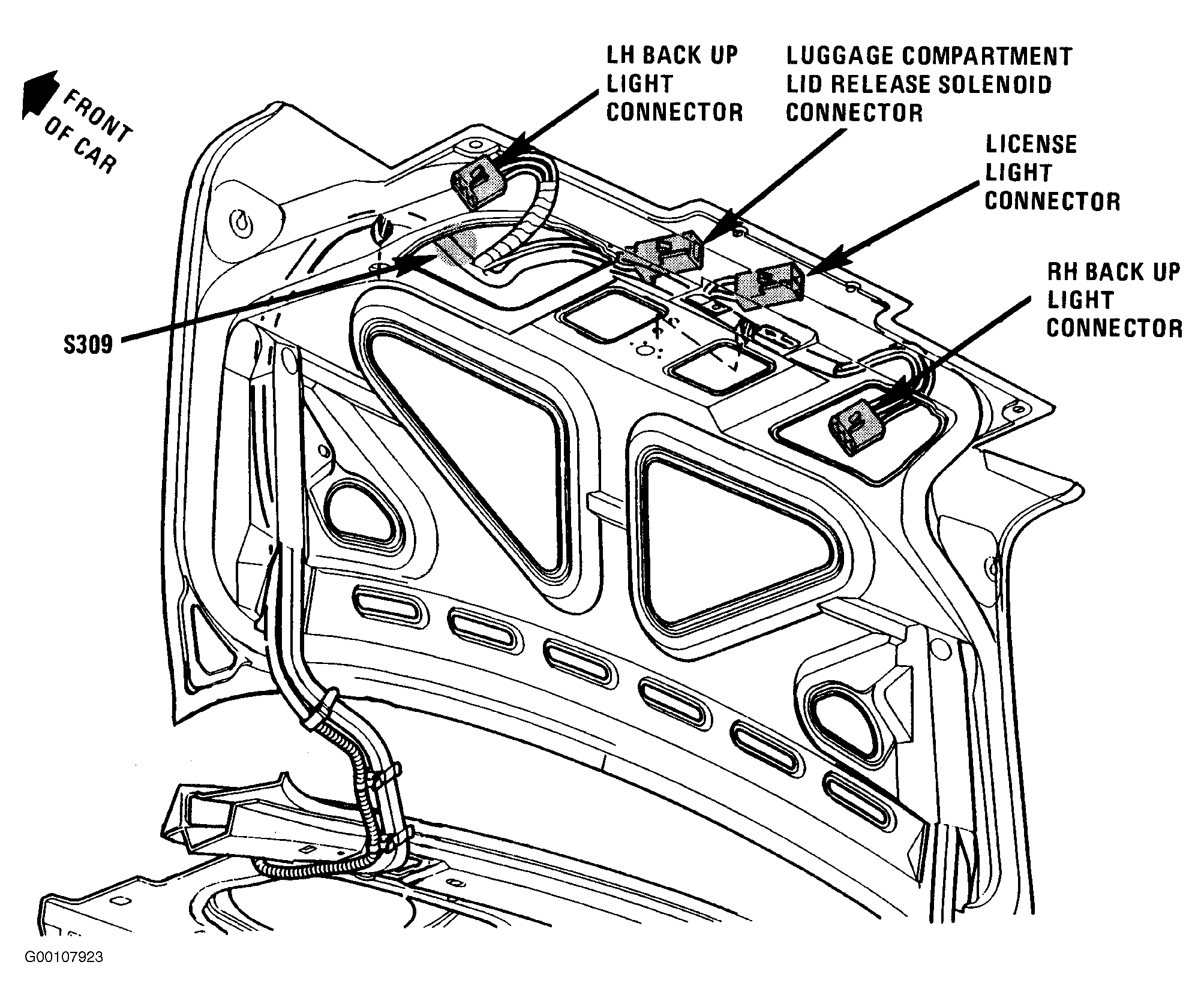

Luggage Compartment Lid Release Solenoid	Underside Of Luggage Compartment Lid. See Fig 5
Program Connector	Left Side Of Luggage Compartment. See Fig 6
Right Front Door Lock Motor	In Rear Of Right Front Door. See Fig 3
Right Rear Door Lock Motor	In Upper Rear Of Right Rear Door. See Fig 4
Remote Keyless Entry (RKE) Module	Left side of luggage Compartment. See Fig 6

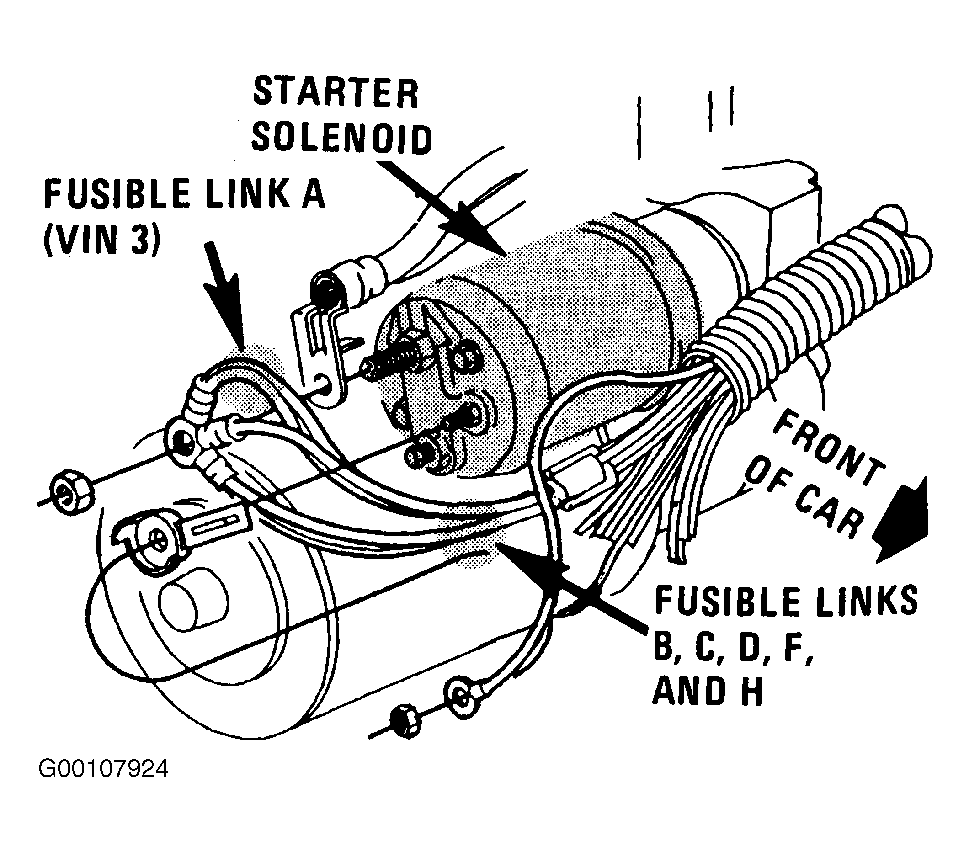

Starter Solenoid	Lower Front Of Engine, On Top Of Starter Motor. See Fig 7
Transaxle Position Switch	Rear Of Engine, Left Top Of Transaxle. See Fig 8
C100 (30 cavities)	Under Left Front Of dash. See Fig 9
C204 (24 cavities)	Behind Instrument Panel, At Steering Column. See Fig 1

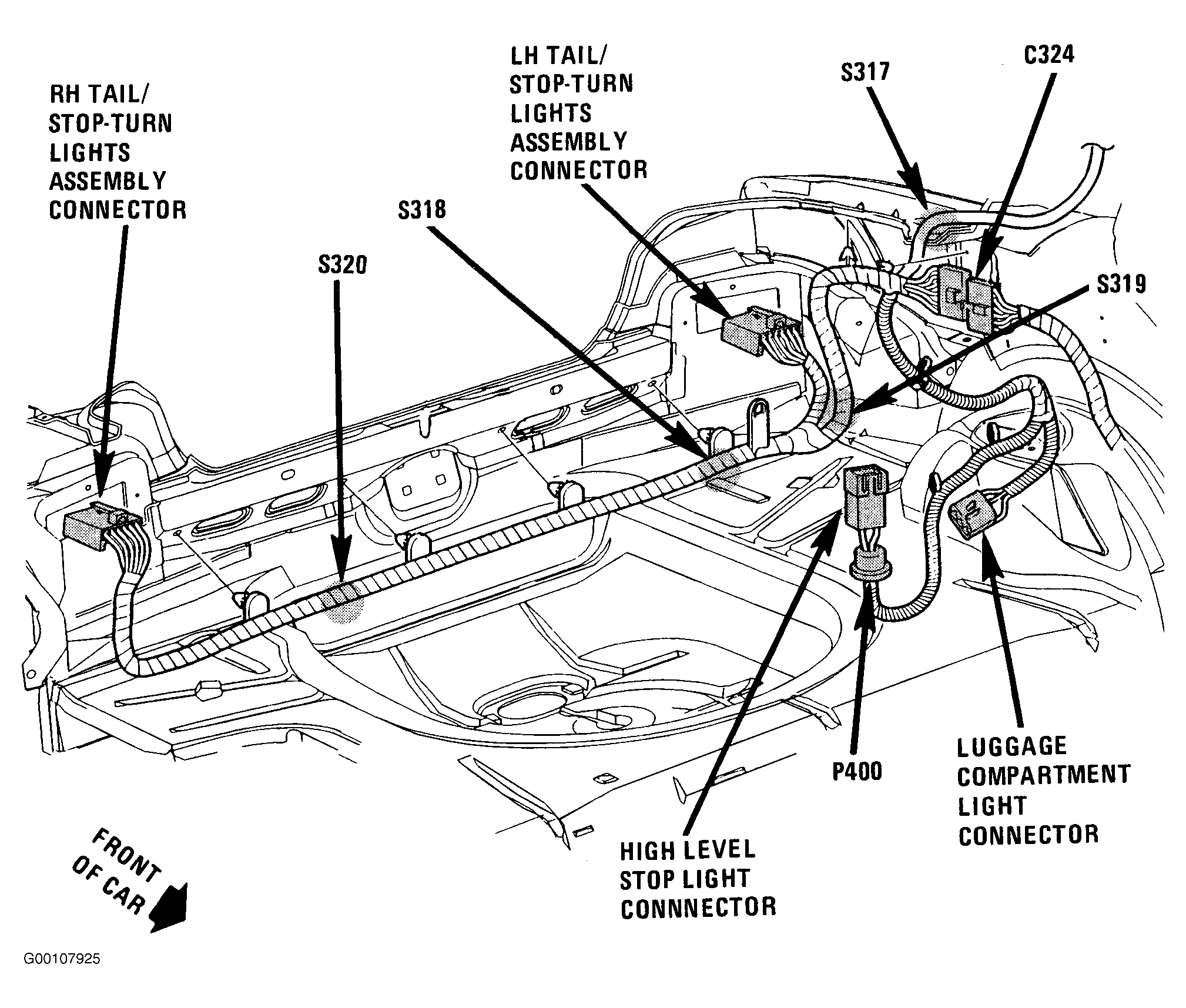

C324 (10 cavities)	Left Side Of Luggage Compartment. See Fig 10

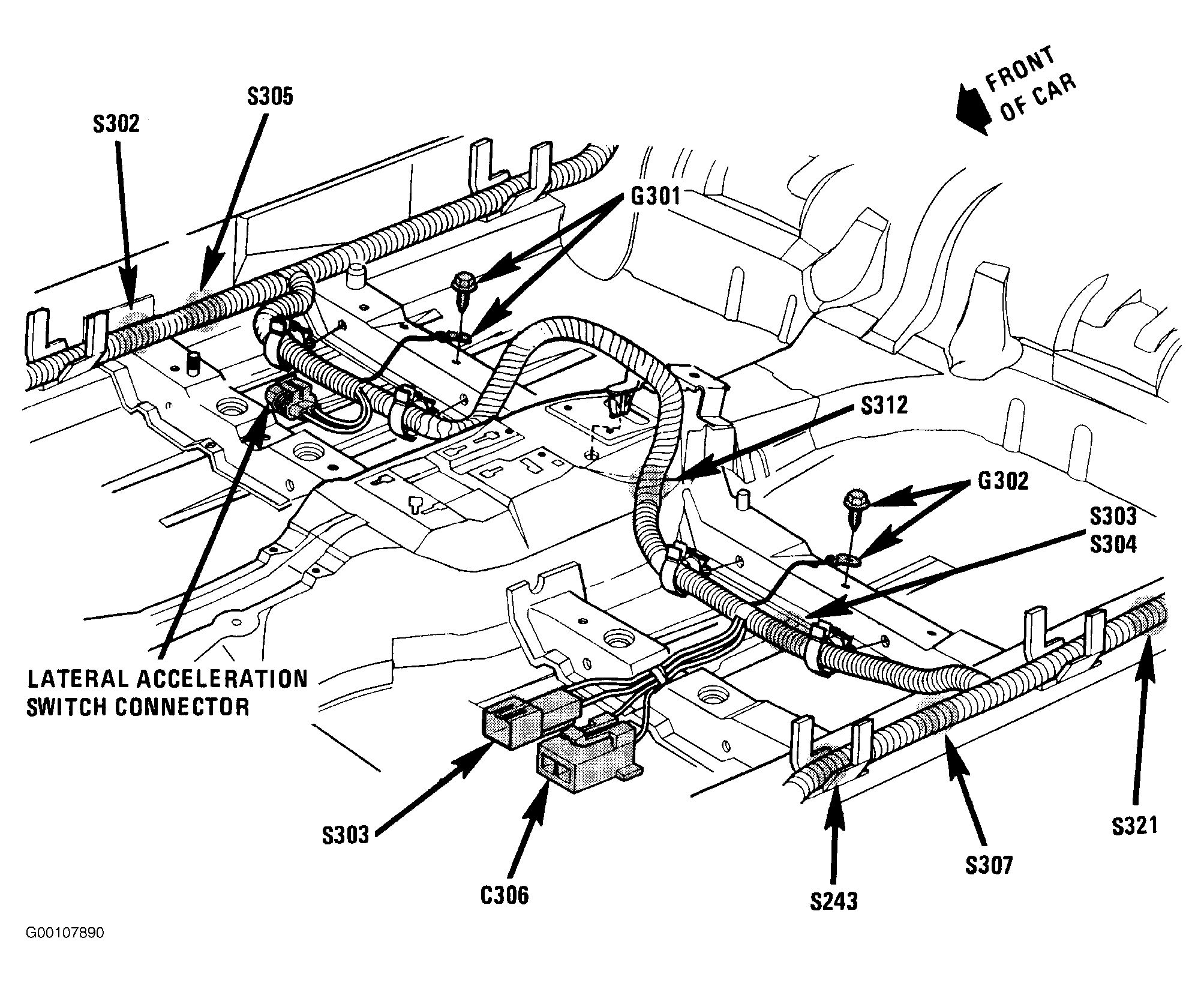

G302	Under Left Front Seat. See Fig 11
P500	Front Of Left Front Door. See Fig 3
P600	Front Of Right Front Door. See Fig 3
P700	Front Of Left Rear Door. See Fig 4
P800	Front Of Right Rear Door. See Fig 4
S201	Instrument Panel Harness, Near Fuse Block. See Fig 2
S208	Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 2
S213	Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 2
S224	Body Harness, At Left Front Door Sill. See Fig 1
S243	Body Harness, At Left Front Door Sill. See Fig 11
S244	Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 2
S300	Body Harness, At Left Shroud. See Fig 1
S301	Body Harness, At Left Front Door Sill. See Fig 1
S303	Body Harness, Under Left Front Seat. See Fig 2
S304	Body Harness, Under Left Front Seat. See Fig 2
S307	Body Harness, At Left Front Door Sill. See Fig 2
