Connector Identification

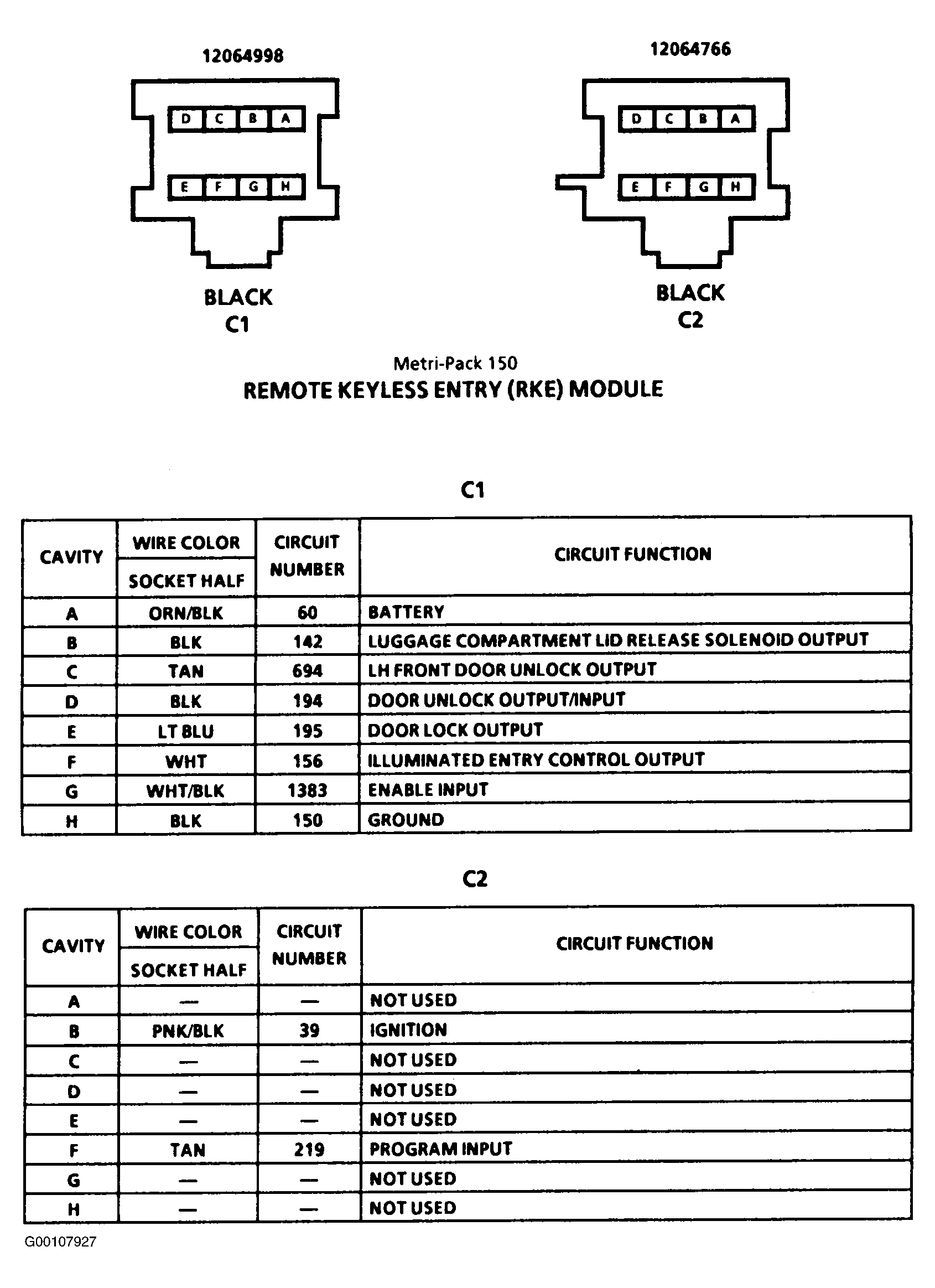

Fig 1: Identifying Remote Keyless Entry Module Connector Pins
G00107927Courtesy of GENERAL MOTORS CORP.
