Test Description

Checks that keyless entry receiver applies voltage to circuit No. 1455.

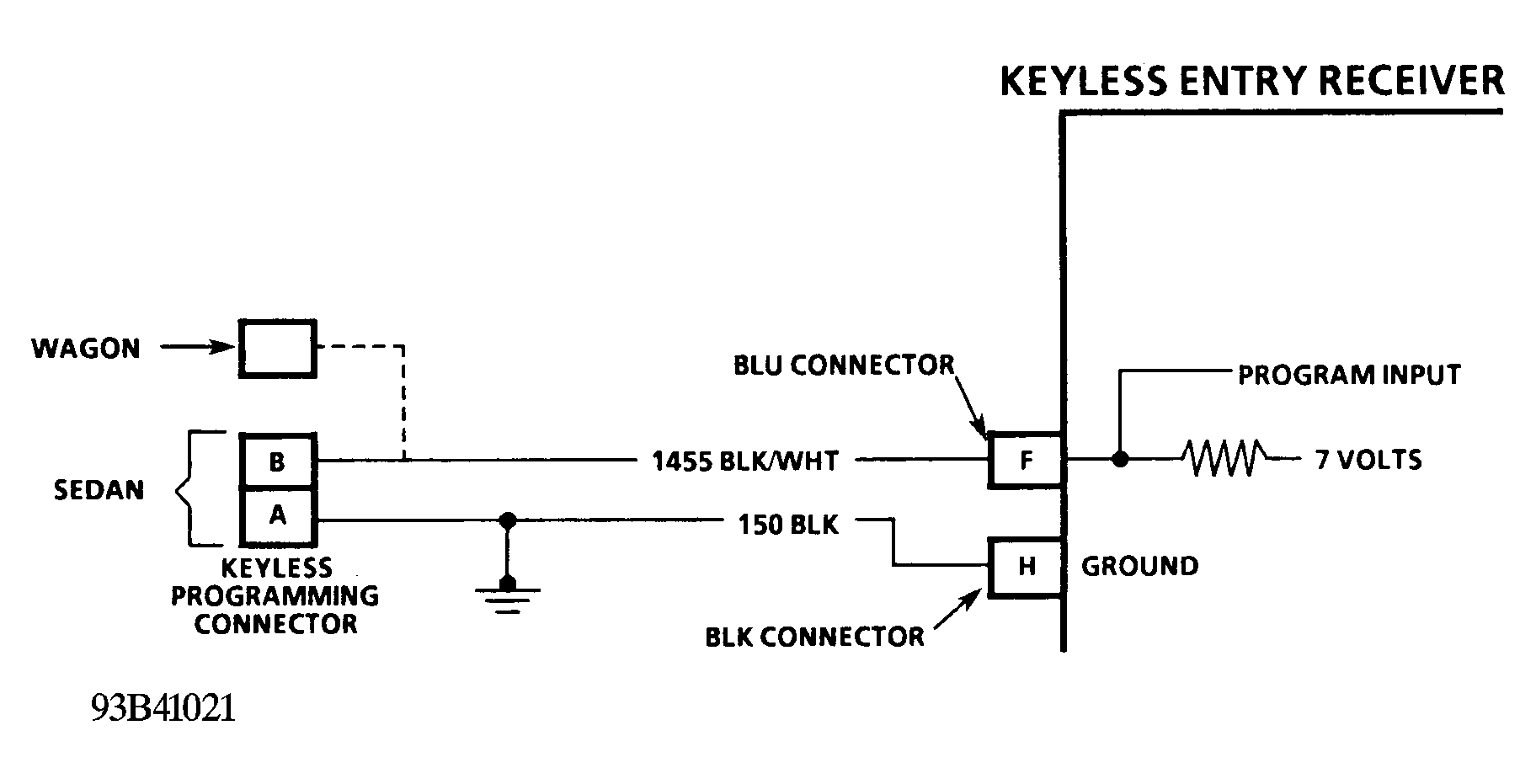

Fig 1: Test 8; Schematic

G93B41021

Courtesy of GENERAL MOTORS CORP.

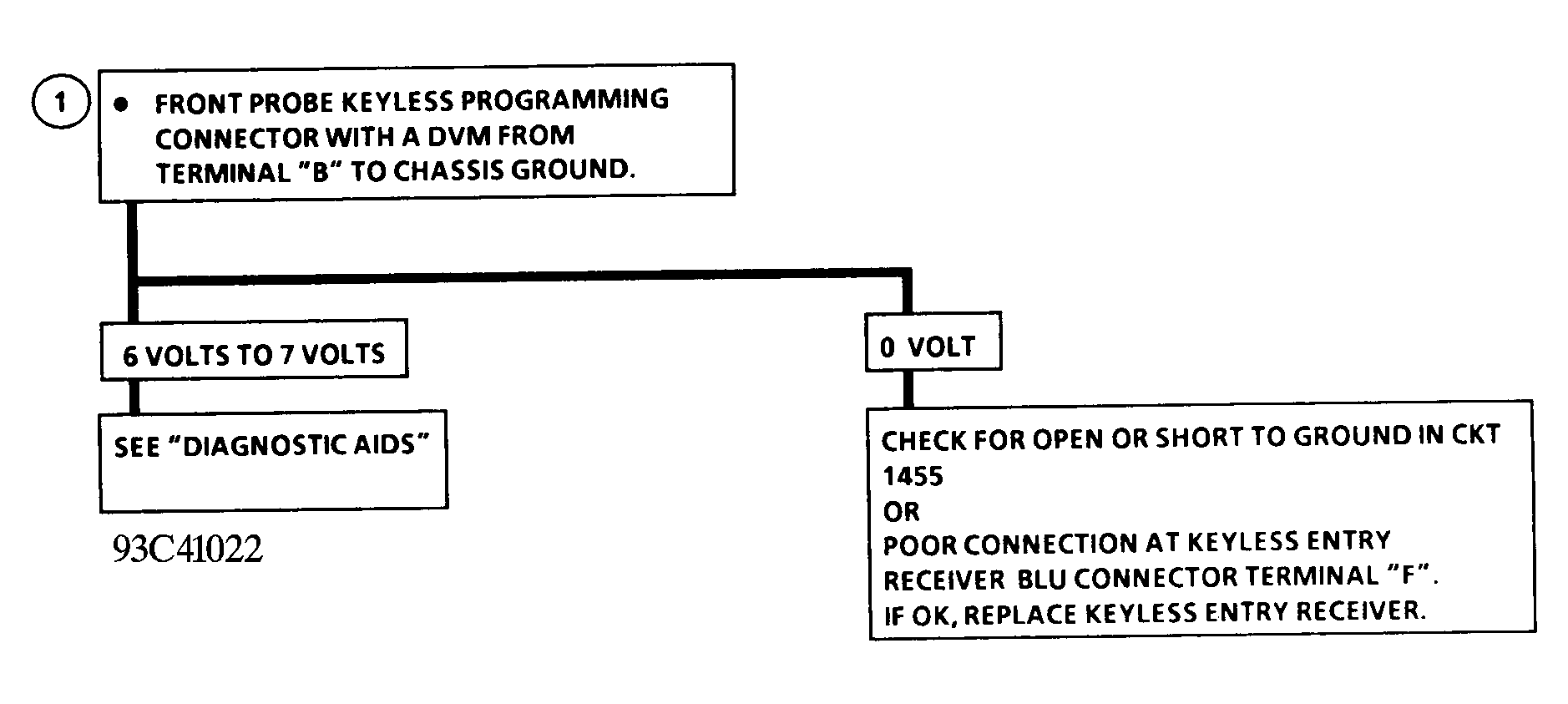

Fig 2: Test 8; Flow Chart

G93C41022

Courtesy of GENERAL MOTORS CORP.
