Test Description

Isolates a power door lock system fault or keyless entry system fault.
Isolates a keyless entry system functional failure.
Checks for a short to voltage on circuit No. 275 when transmission is in Drive.
Checks for correct operation of transmission position switch.

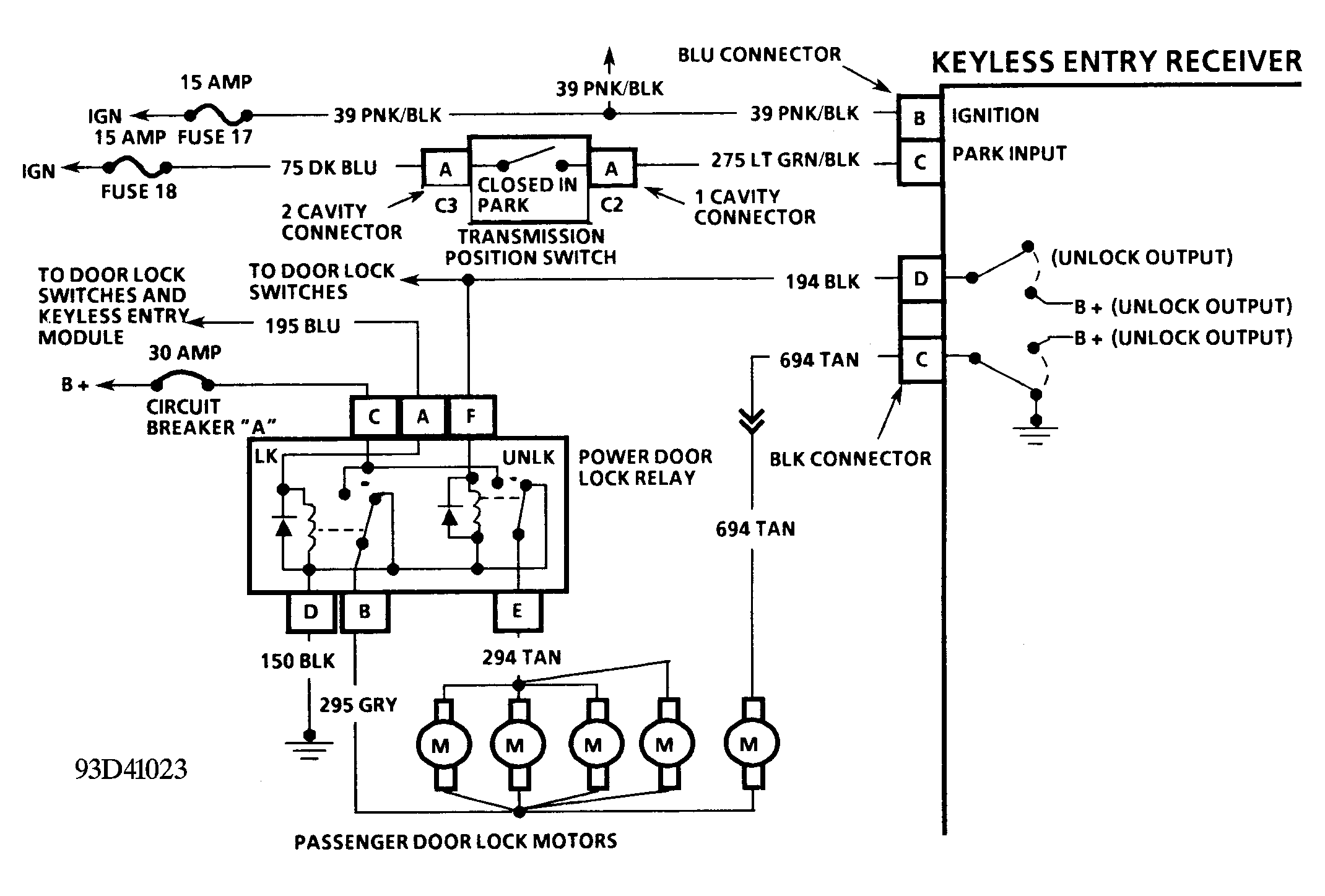

Fig 1: Test 9; Schematic

G93D41023

Courtesy of GENERAL MOTORS CORP.

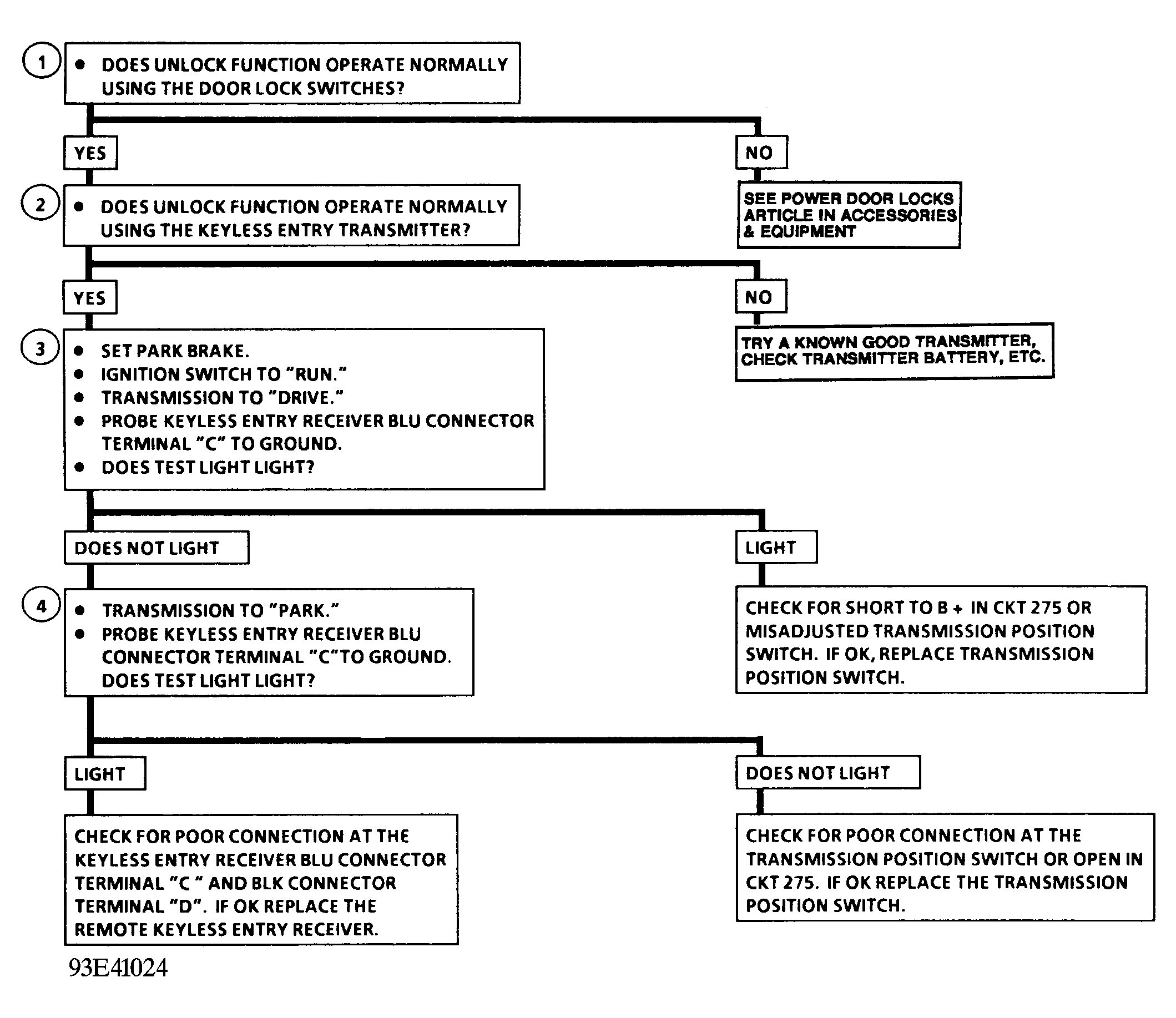

Fig 2: Test 9; Flow Chart

G93E41024

Courtesy of GENERAL MOTORS CORP.
