Wiring Diagrams

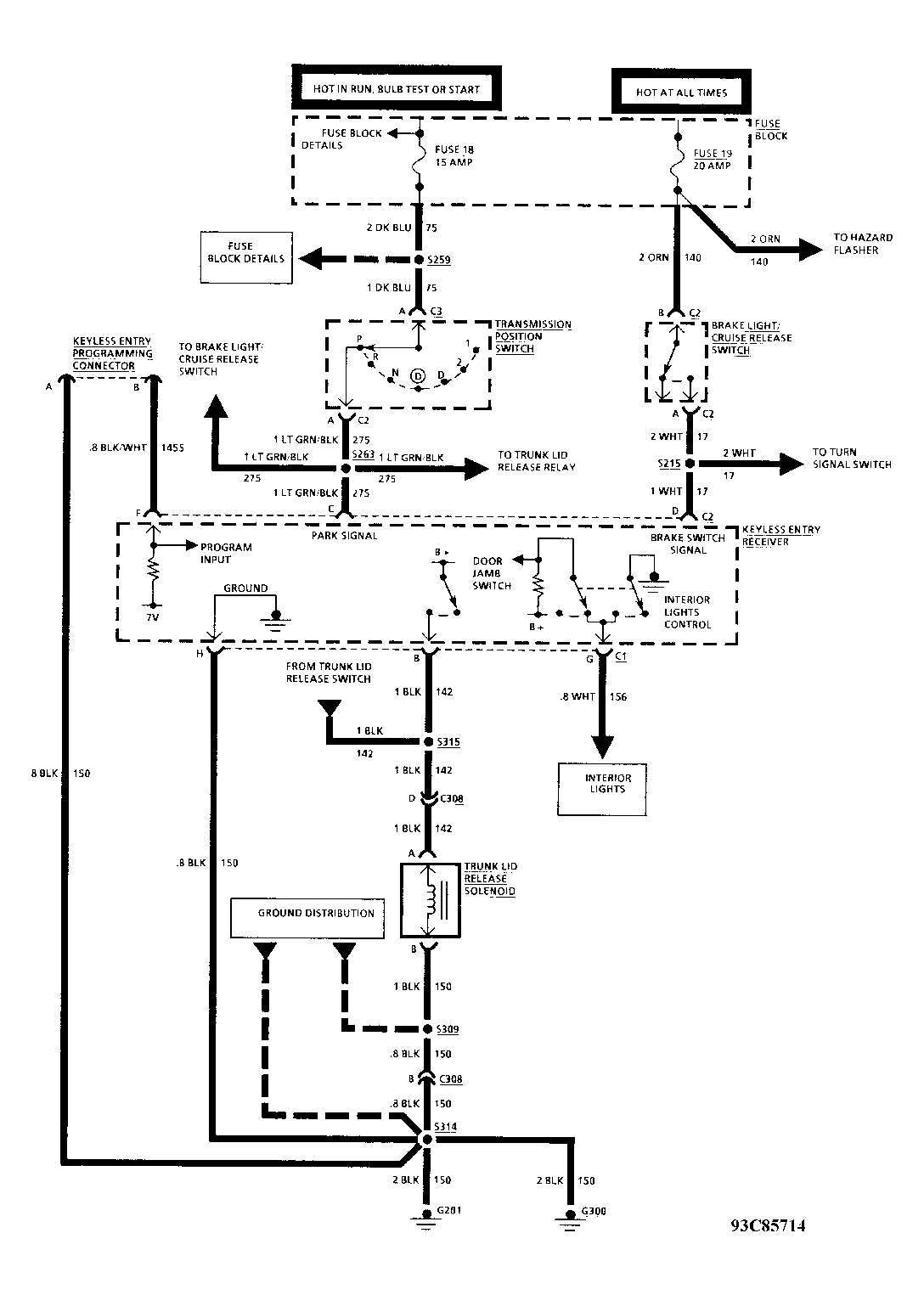

Fig 1: Keyless Entry Wiring Diagram (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

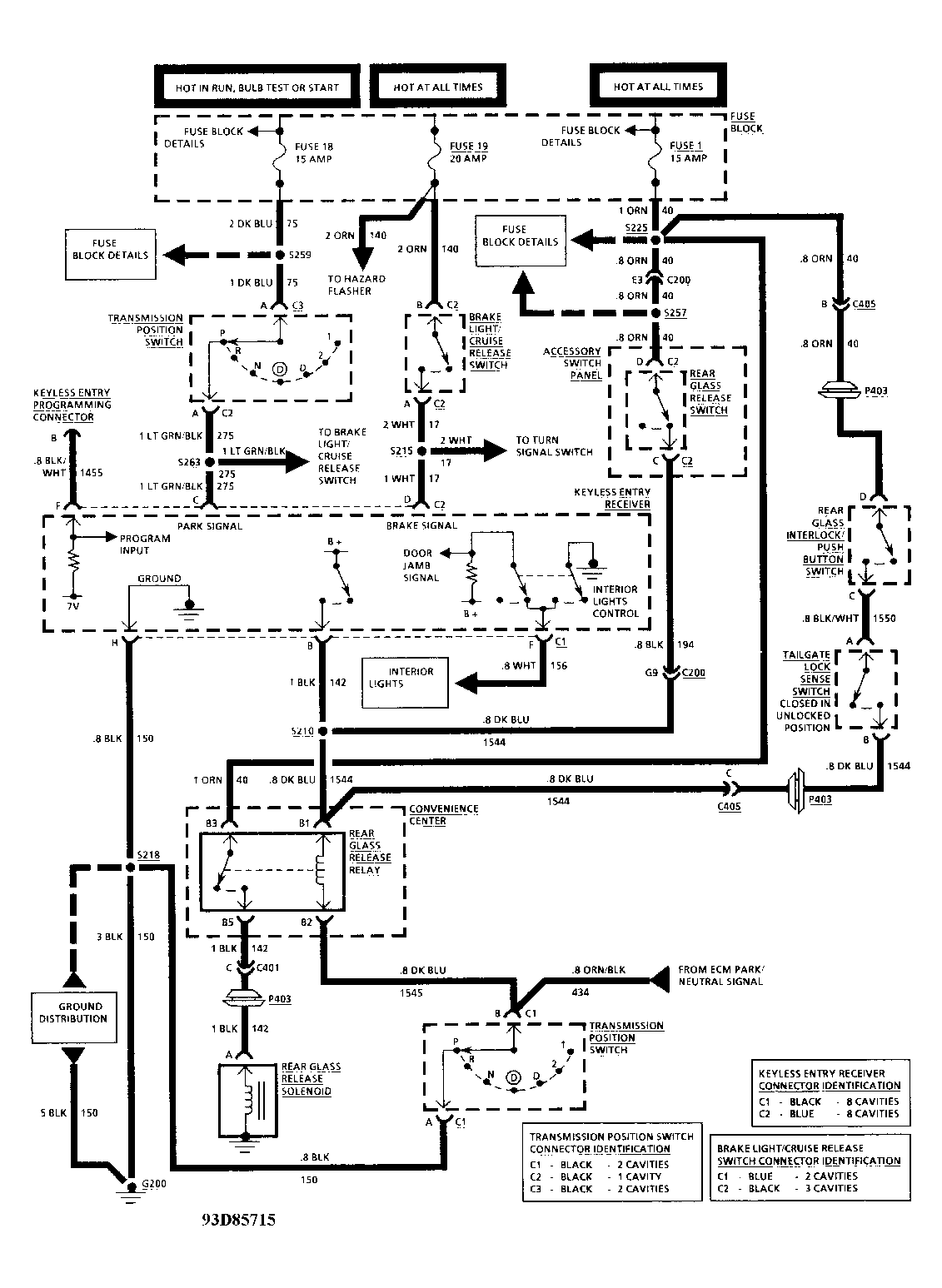

Fig 2: Keyless Entry Wiring Diagram (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Keyless Entry Wiring Diagram (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
