Test A - Adaptive Lamp Monitor Module Input/Output
Test A - Adaptive Lamp Monitor Module Input/Output

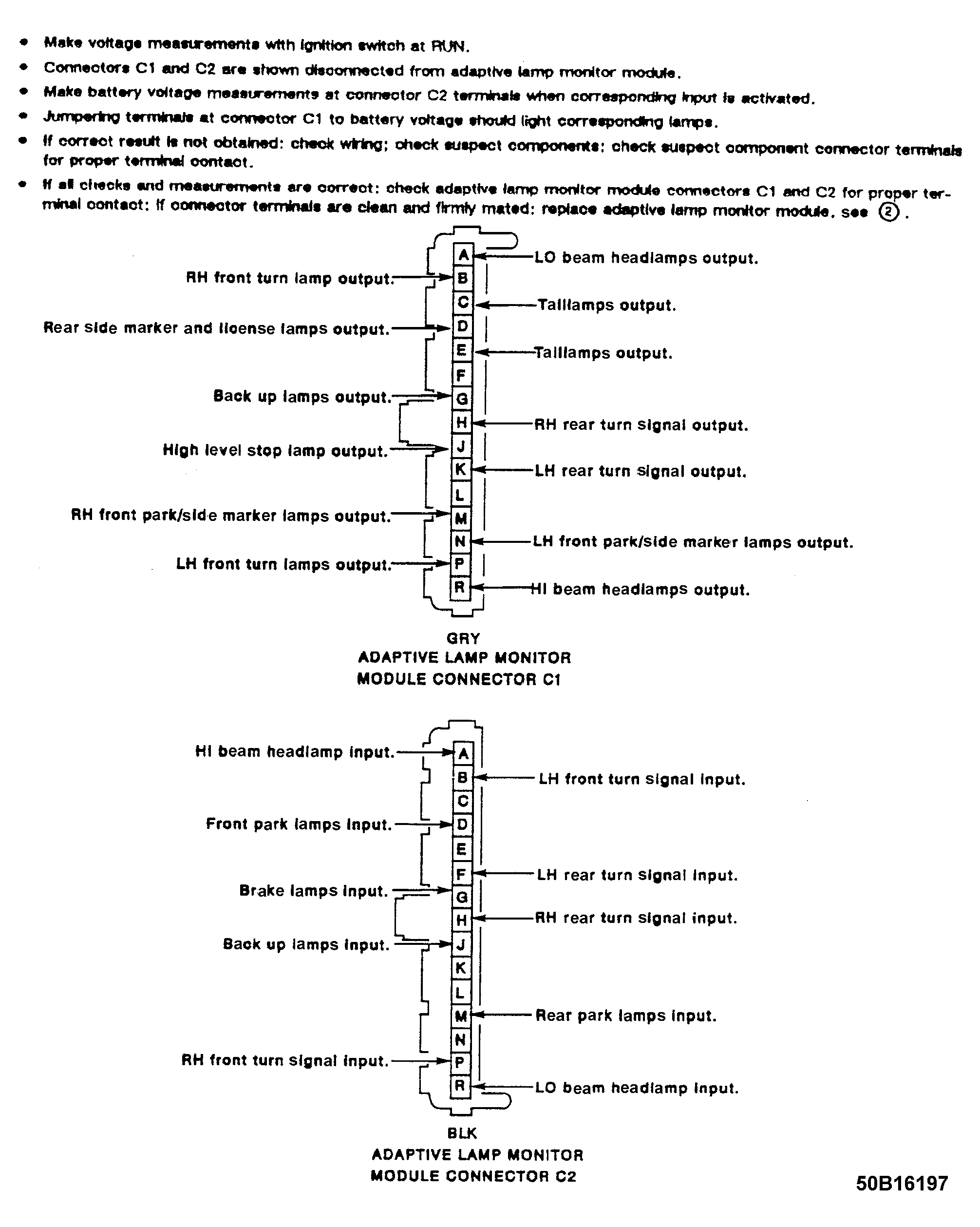

Fig 1: Test A - Adaptive Lamp Monitor Module Input/Output
