Test B - Adaptive Lamp Monitor Module Power Check
Test B - Adaptive Lamp Monitor Module Power Check

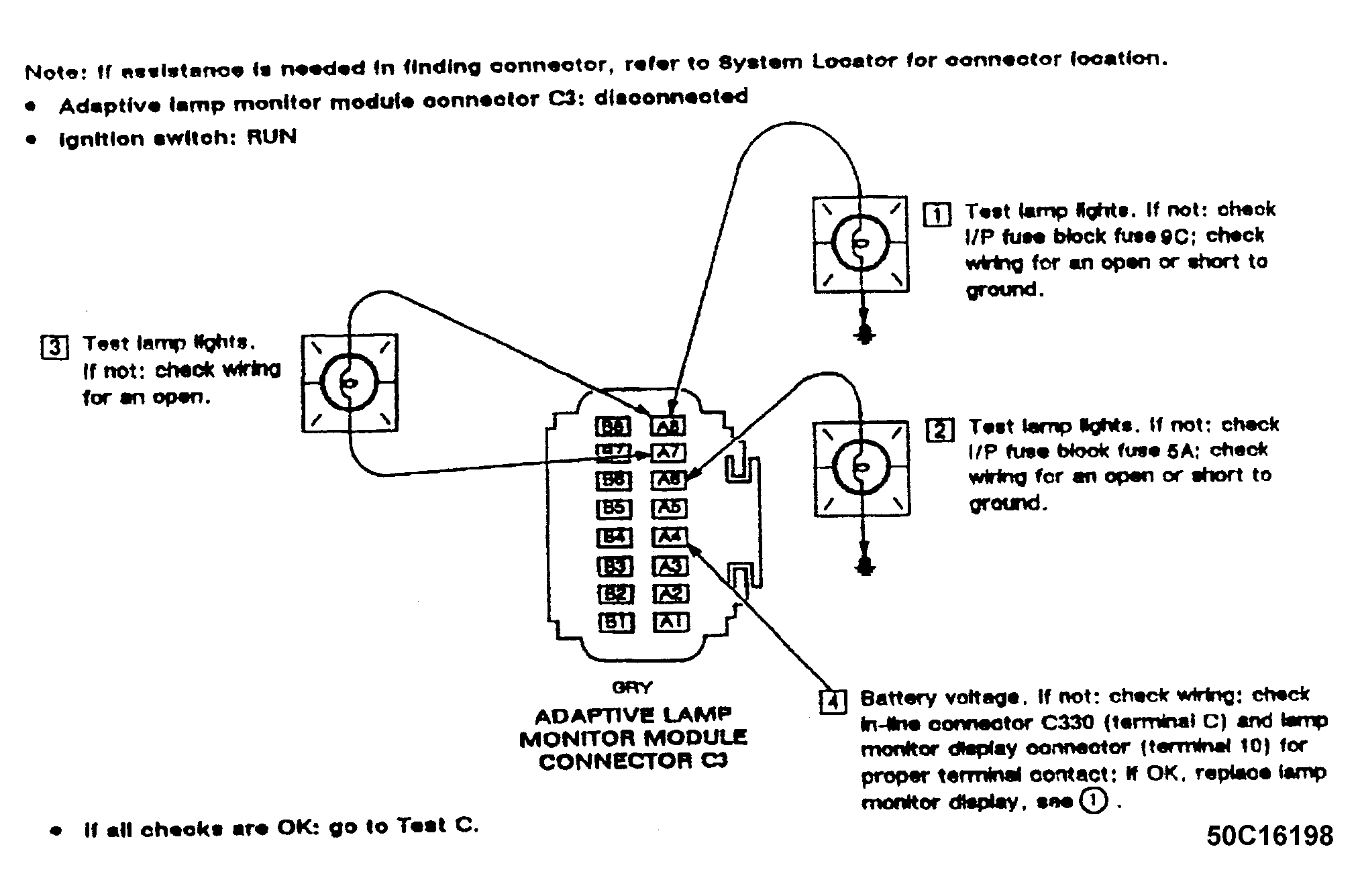

Fig 1: Test B - Adaptive Lamp Monitor Module Power Check
