Home › Buick › 1994 › Regal Limited › Repair and Diagnosis › Engine Performance › System › Engine Controls - System/Component Tests - 3.8L › Component Locations

Component Locations

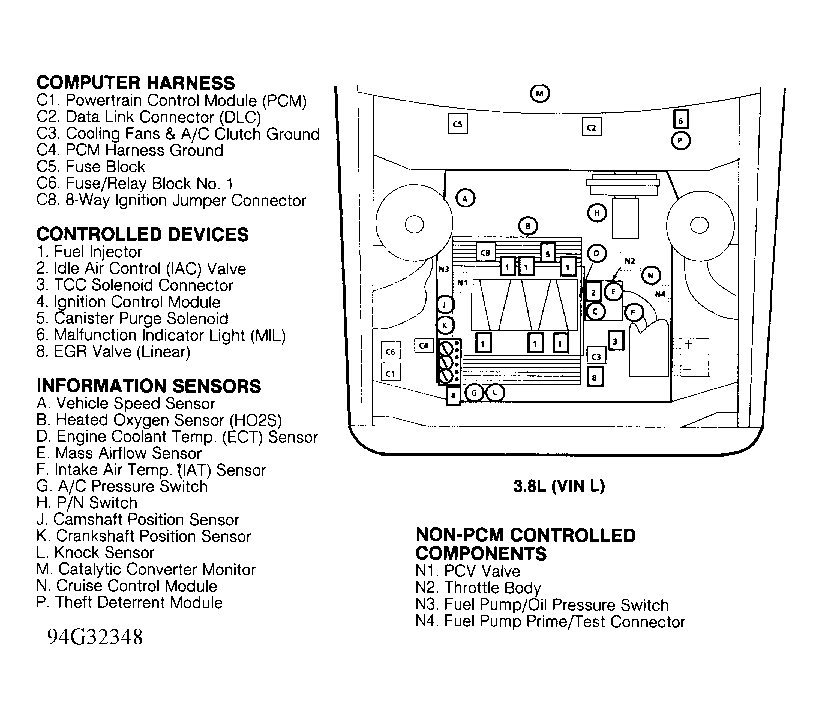

Fig 1: Component Locations (3.8L V6)
G94G32348Courtesy of GENERAL MOTORS CORP.
