Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

Fig 1: Code 70 Schematic (5.7L) Compressor Relay Driver

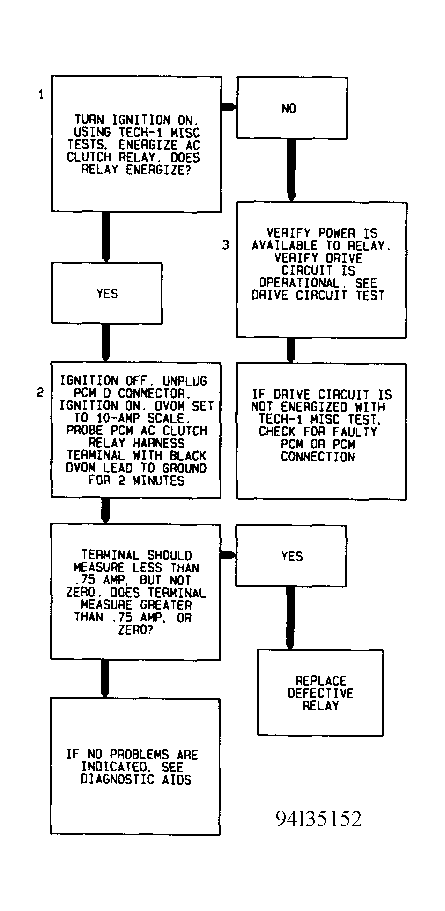

Fig 2: Code 70 Flow Chart (5.7L) Compressor Relay Driver
