Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

Fig 1: Code 77 Schematic (5.7L) Primary Cooling Fan Driver

Fig 2: Code 77 Flow Chart (5.7L) Primary Cooling Fan Driver

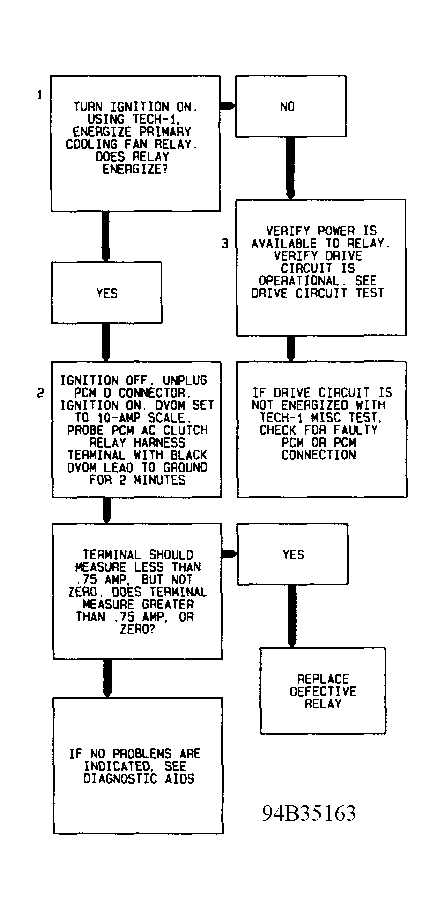

Fig 3: Code 77 Flow Chart
