Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

Fig 1: Code 78 Schematic (5.7L) Secondary Cooling Fan Driver

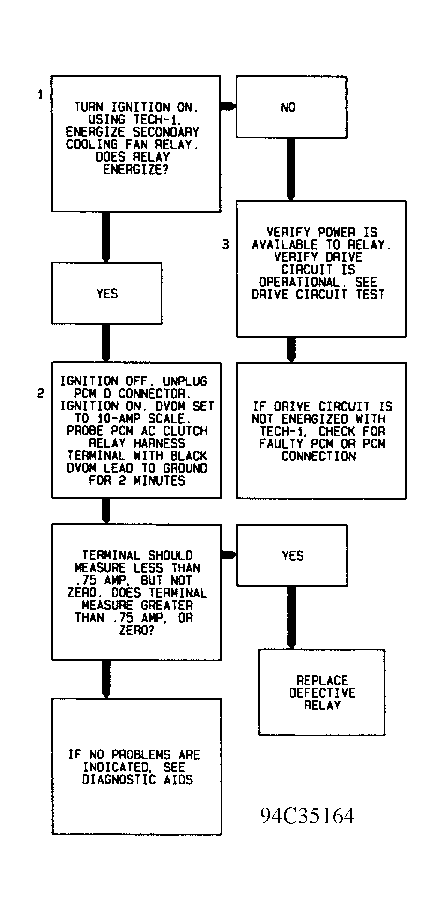

Fig 2: Code 78 Flow Chart (5.7L) Secondary Cooling Fan Driver
