Diagnostic Aids

Check vacuum lines for proper routing.

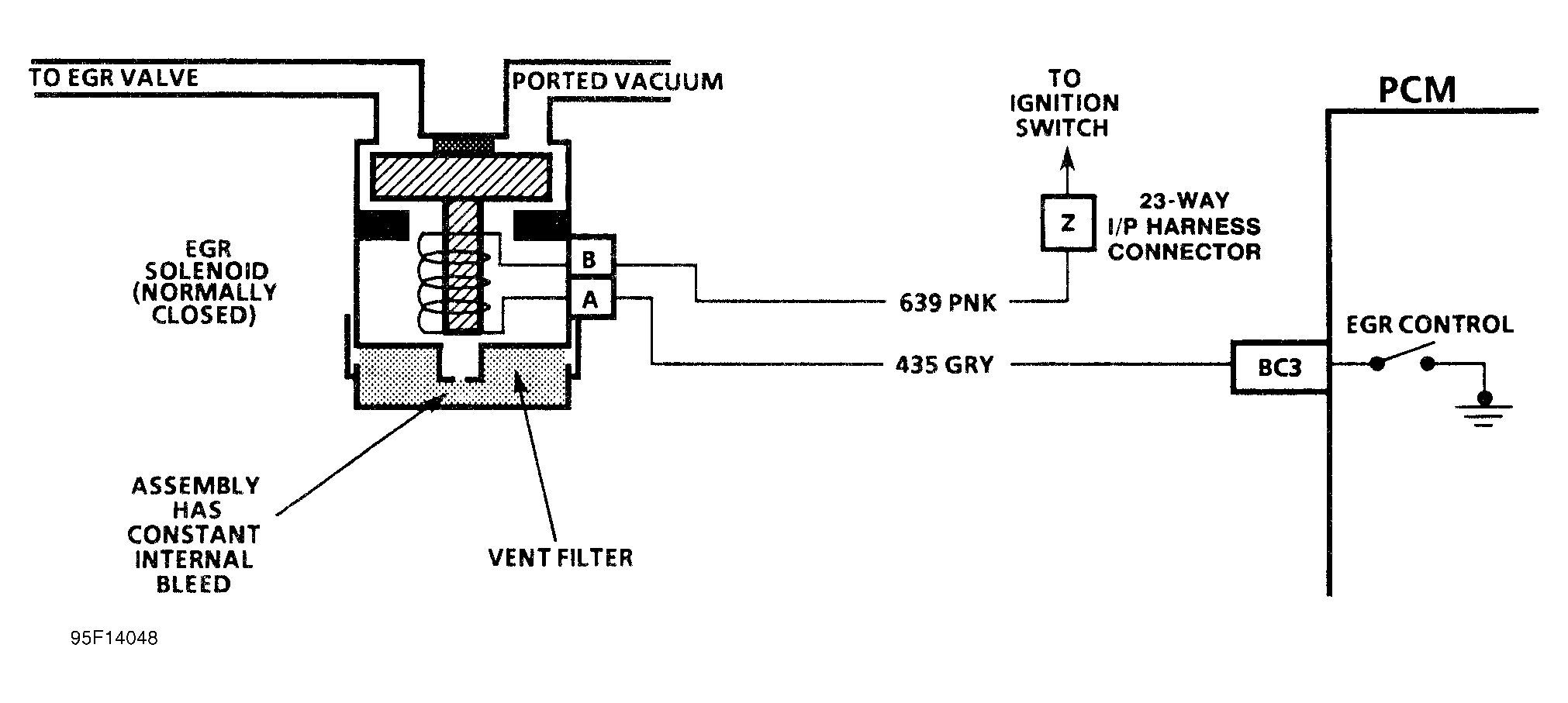

Fig 1: Code 32 Schematic (2.2L) EGR System Error

G95F14048

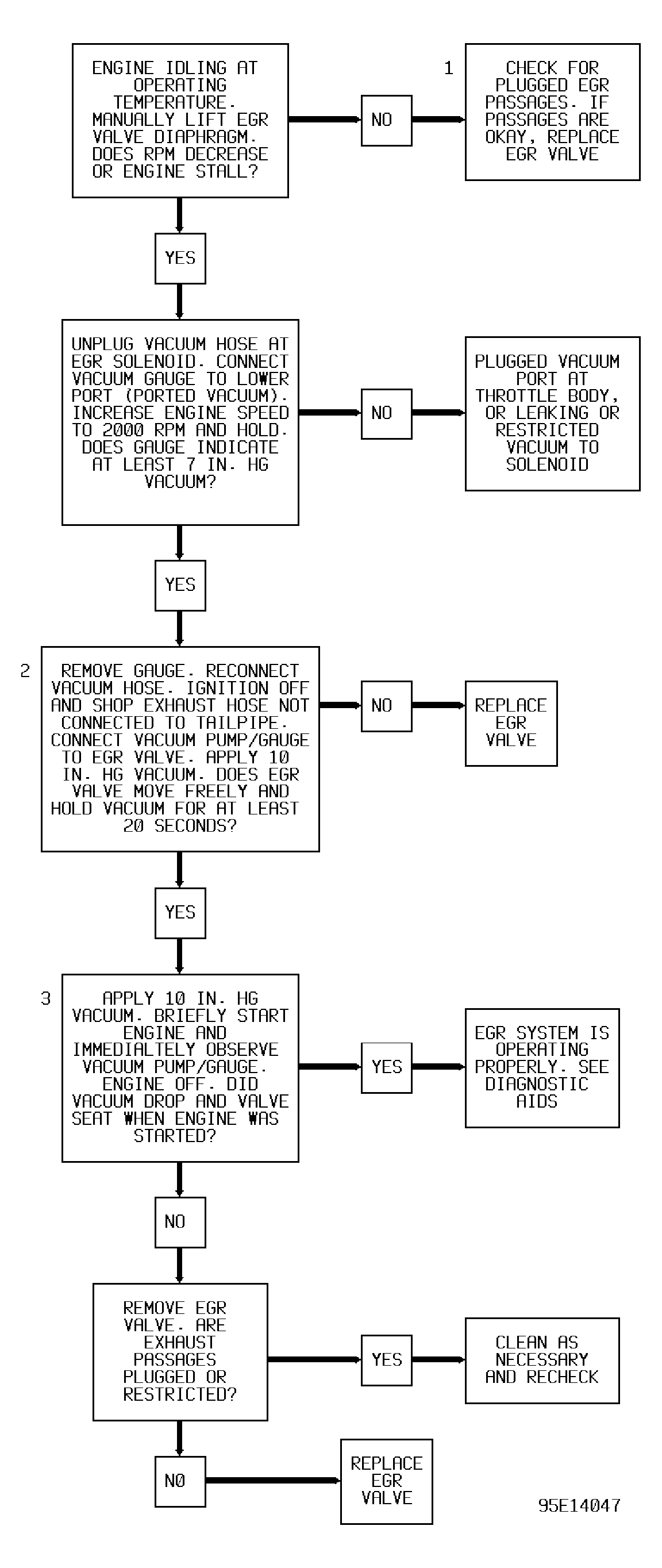

Fig 2: Code 32 Diagnostic Flow Chart (2.2L) EGR System Error

G95E14047
