Removal & Installation

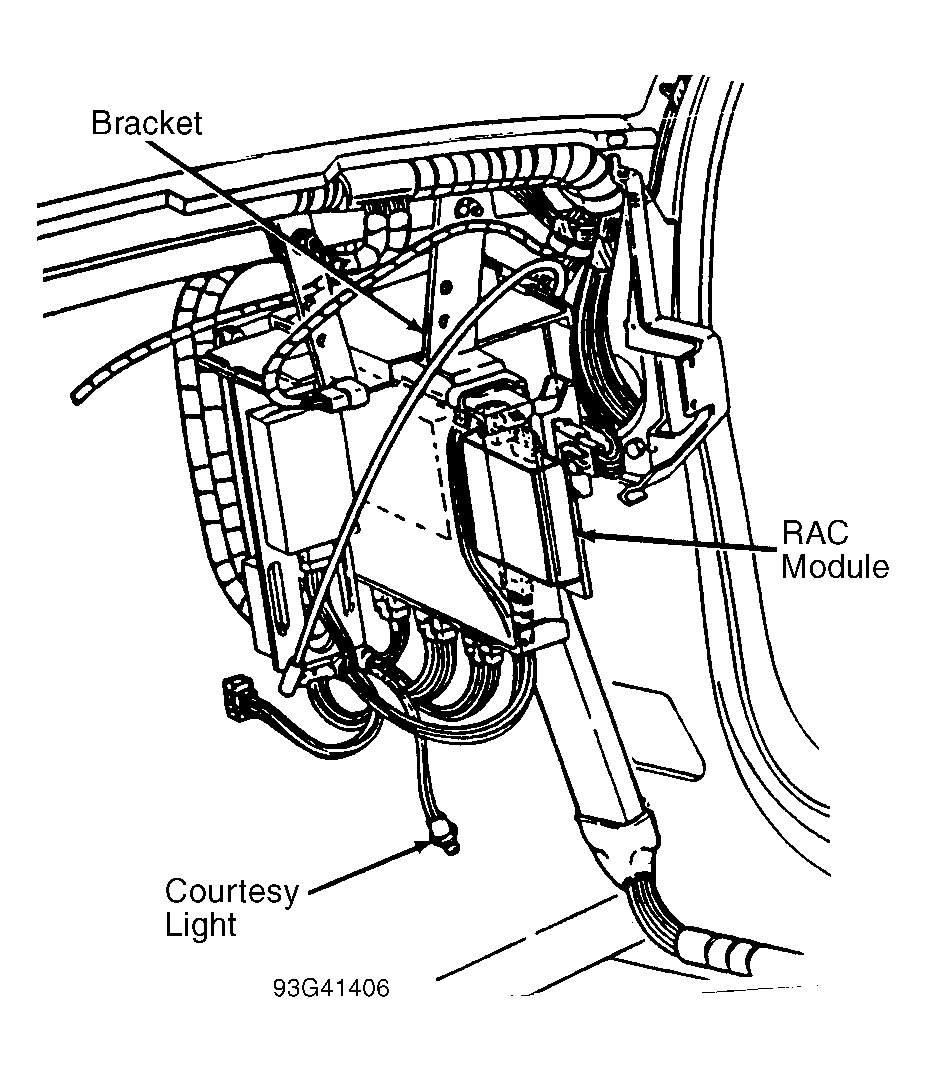

Disconnect negative battery cable. Remove right sound insulator kick panel. Lower electrical connector and slide RAC module from bracket. Disconnect upper electrical connector. See Fig 1 . To install, reverse removal procedure. Program transmitter. See PROGRAMMING PROCEDURE .
