Scan Tool Does Not Communicate With An Entertainment Or Comfort Module

To perform diagnosis, see Fig 1 and Fig 2 .

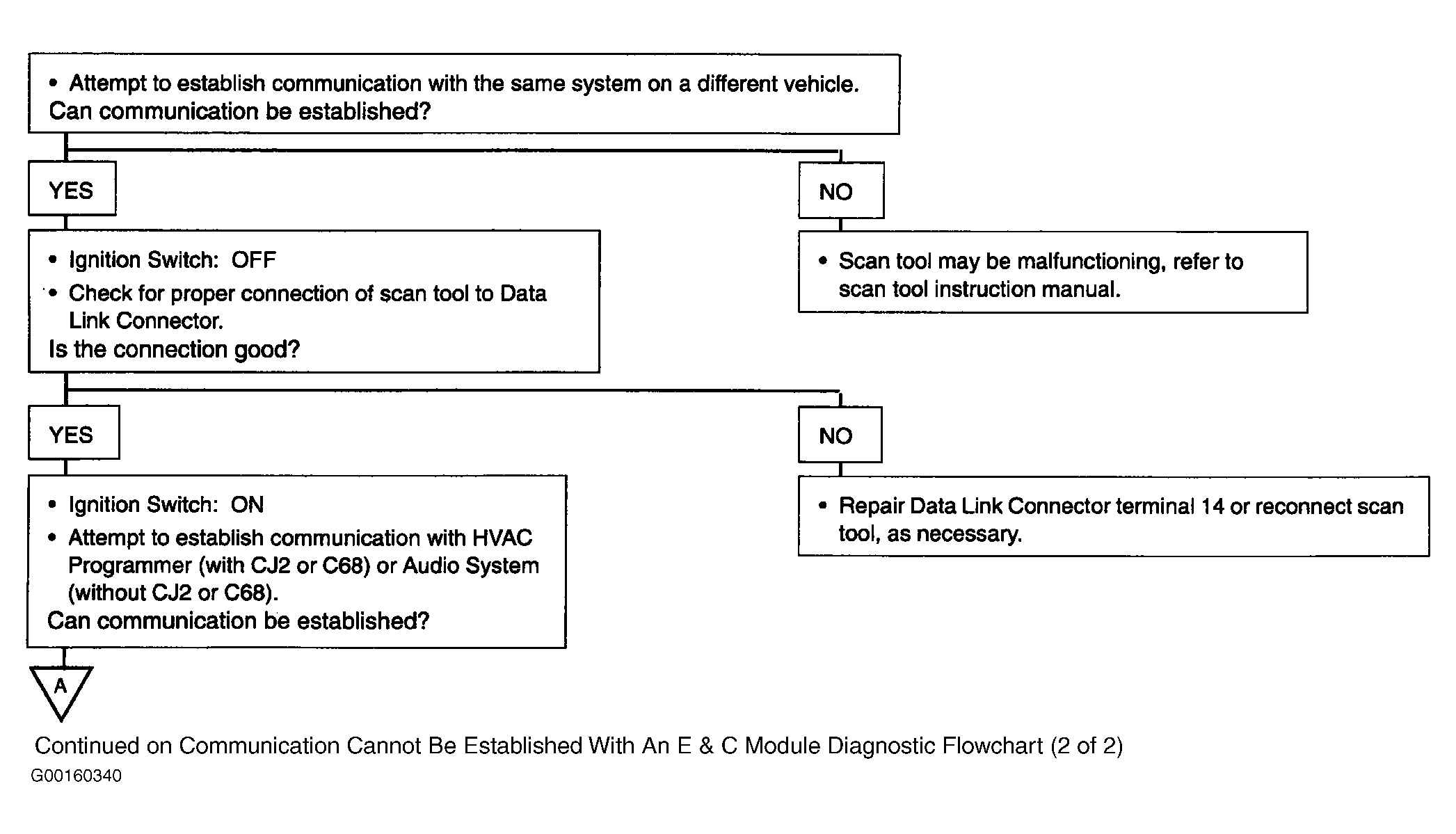

Fig 1: Scan Tool Does Not Communicate With An Entertainment Or Comfort Module Diagnostic Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

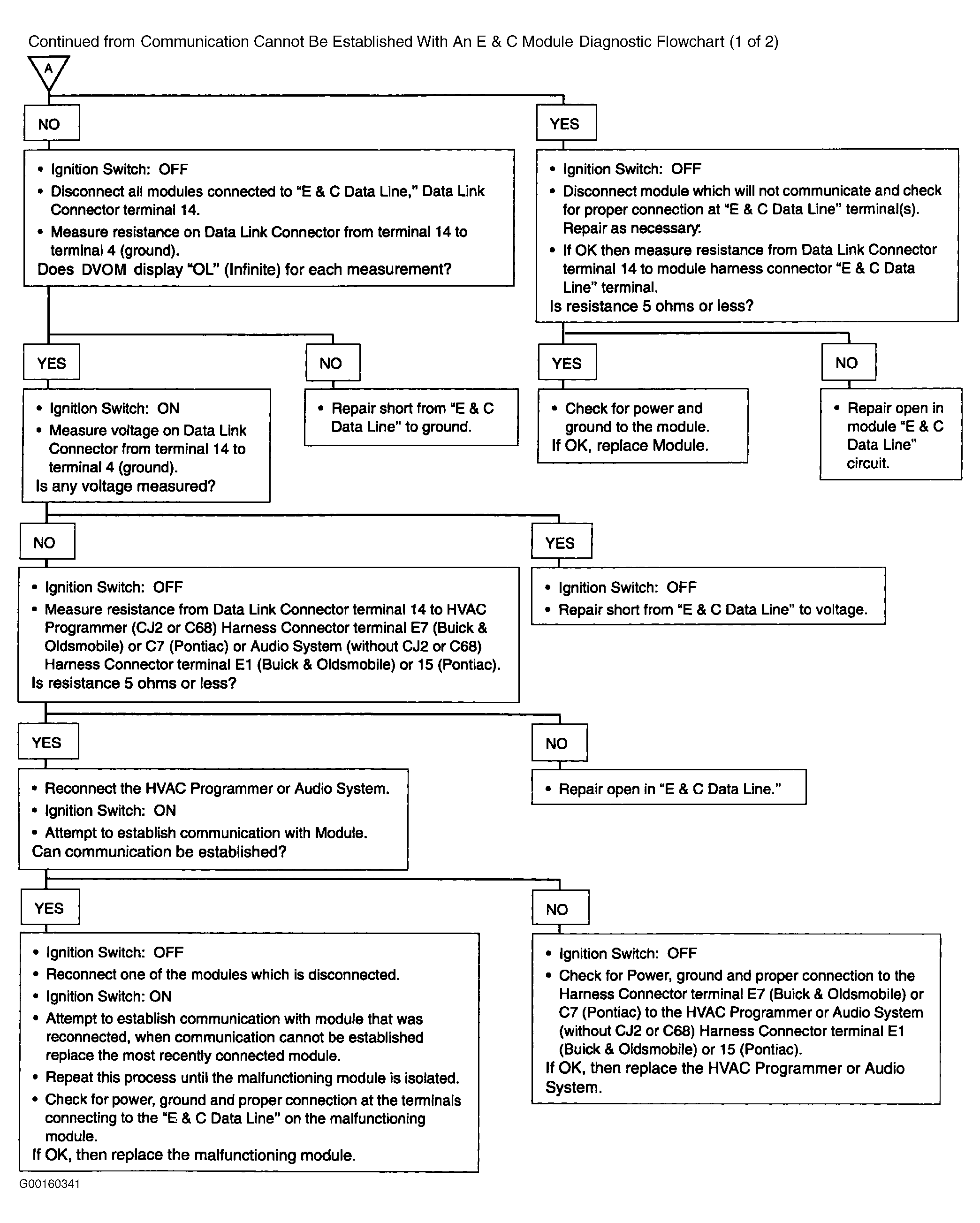

Fig 2: Scan Tool Does Not Communicate With An Entertainment Or Comfort Module Diagnostic Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
