Test A: Remote Accessory Control (RAC) Module Power & Ground Test

For test procedures, see Fig 1 .

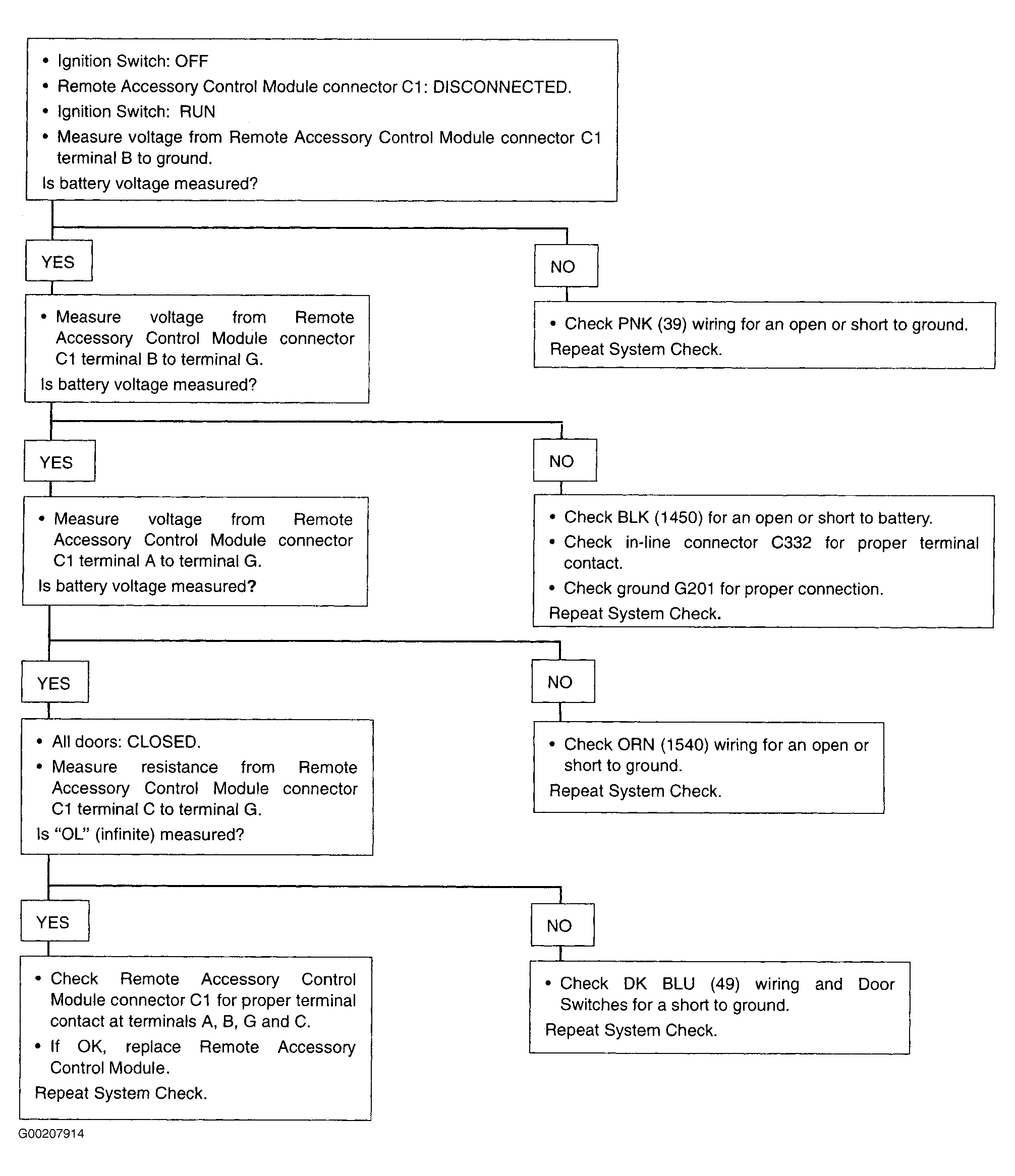

Fig 1: Test A: Remote Accessory Control (RAC) Module Power & Ground Test

Courtesy of GENERAL MOTORS CORP.
