Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Determines if conditions necessary to set Code P0117 exist.
  2. Determines if sensor signal circuit is shorted to ground.

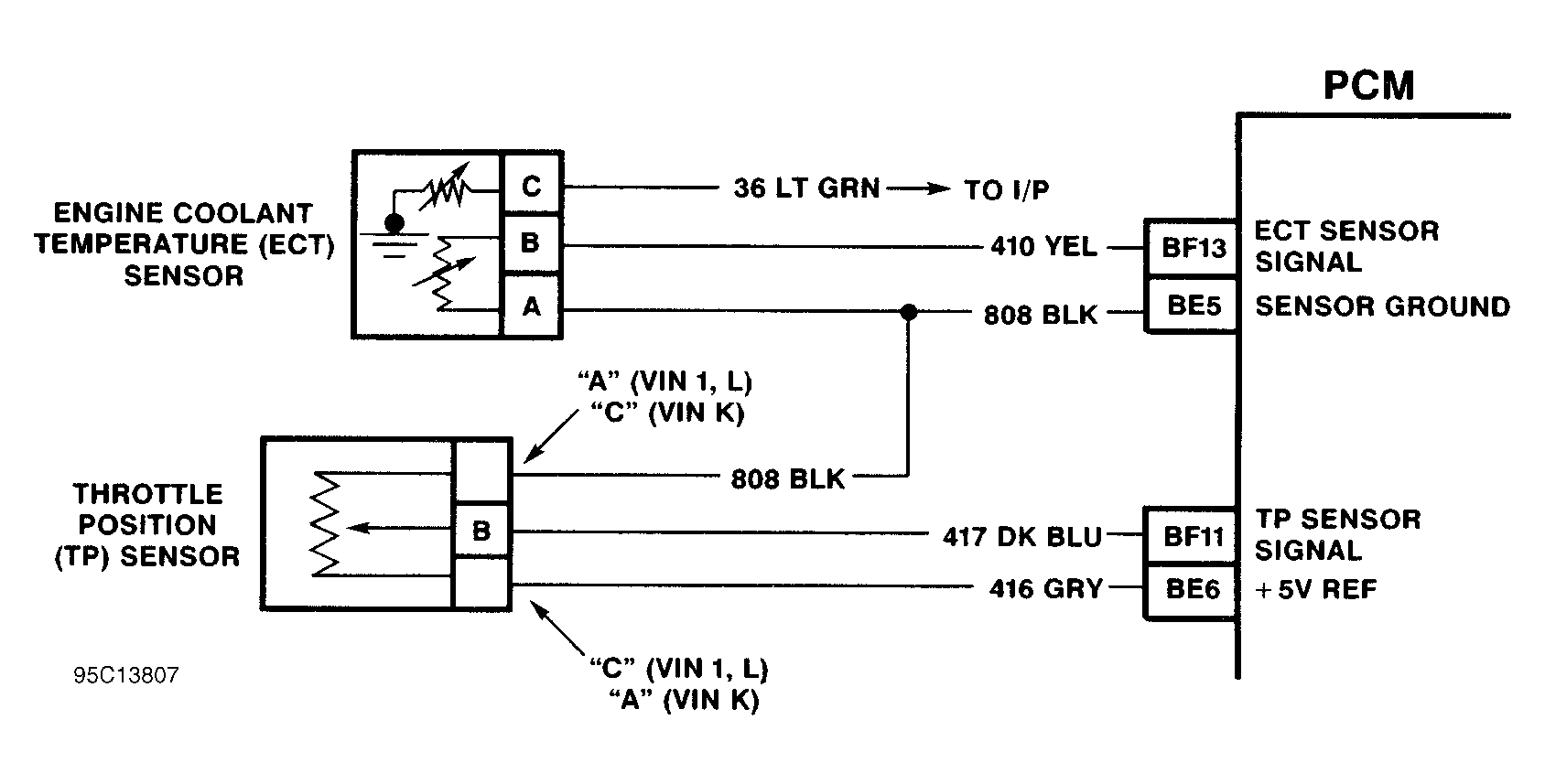

Fig 1: Code P0117 Schematic (3.8L) Coolant Temperature Sensor Low Temperature Indicated
G95C13807

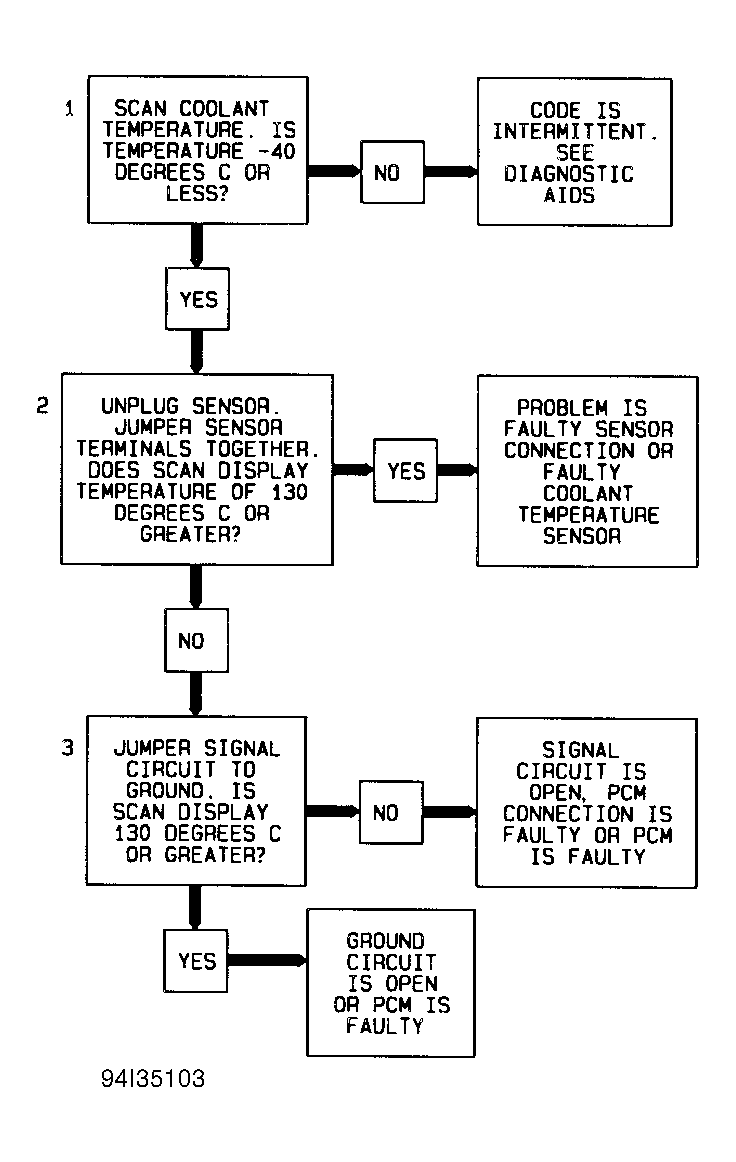

Fig 2: Code P0117 Flow Chart (3.8L) Coolant Temperature Sensor Low Temperature Indicated
G94I35103
